Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Thread Direction | RH |
|---|---|
| Thickness | 5.1 mm (0.201 in) |
| Class or Grade | ISO 898-2 Class 8 |
| Thread Size | M6 mm (0 in) |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Height | 5 mm |
| Drive Chain | 10 mm (0.394 in) |

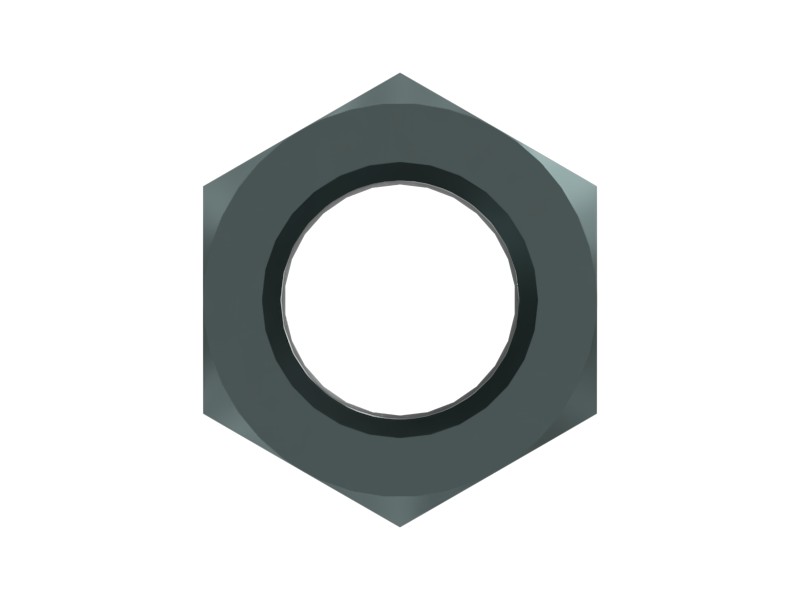

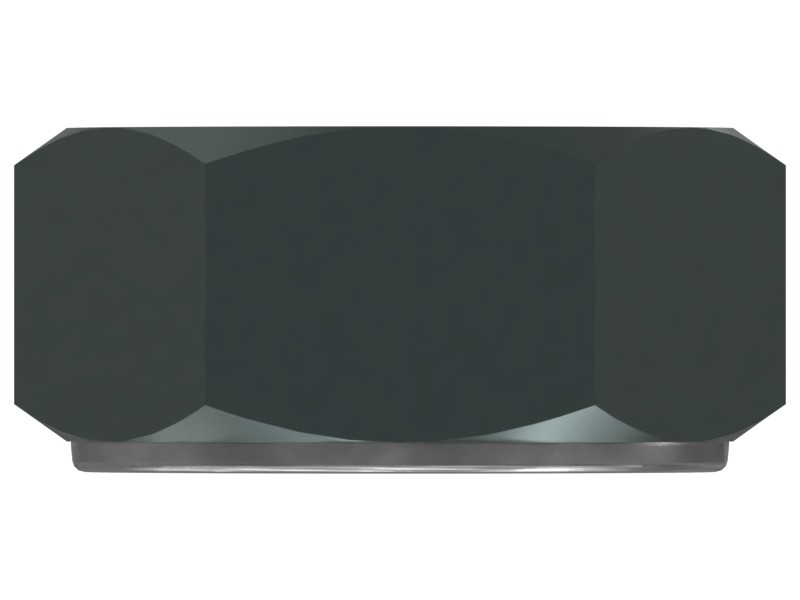

| Nut Model | Lock Nut |
| Material Description | Steel |
| Coating | Zinc Plated |
Compatible Equipment
- Generator Sets: C4.4
- Cold Planers: PM620, PL87, PM622
- Compactors: CB2.5 GC, CB16, CS12, CB-64B, CS11, CB-564D, CB2.7 GC, CW-34, CP54B, CS79B, CS-563E, CB-534D, CS-54, CS54B, CS56B, CB-44B, CP56B, CB-66B, CB2.7, CS-56, CS74B, CS68B, CW-16, CS78B, CC2.7 GC, CB-434D, CS-533C, CB2.5, CB2.9, CB13, CB15, CB10, CS-533E, CS-54B, CS64B
- Engines: C32
- Excavators: 390F L, 390D L, 336D, 330D L, 320 GC, 325D L, 385B, 385C L, 385C, 350 L, 326, 323, 325, 330C L, 390D, 365B L, 385C FS, 390F, 365B, 330GC, 330 GC, 320, 315C, 325C, 330 L, 330C, 320C, 312C, 320B, 312C L, 301.6, 336D L, 301.8, 323 GX, 320 GX
- Skid Steer Loaders: 216B3, 236B3, 226B3, 226B, 236
- Motor Graders: 12H, 140K, 140H, 120H, 12K, 160K
- Wheel Excavators: M320, M315
- Dozers: D11T, D10T2, D11, D6R II, D7R II, D10, D10T
- Mini Excavators: 308, 307, 301.5
- Wheel Loaders: 988F, 966F
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 160K, 216B3, 226B, 226B3, 236, 236B3, 301.5, 301.6, 301.8, 307, 308, 312C, 312C L, 315C, 320, 320 GC, 320 GX, 320B, 320C, 323, 323 GX, 325, 325C, 325D L, 326, 330 GC, 330 L, 330C, 330C L, 330D L, 330GC, 336D, 336D L, 350 L, 365B, 365B L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 966F, 988F, C32, C4.4, CB-434D, CB-44B, CB-534D, CB-564D, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC2.7 GC, CP54B, CP56B, CS-533C, CS-533E, CS-54, CS-54B, CS-56, CS-563E, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS74B, CS78B, CS79B, CW-16, CW-34, D10, D10T, D10T2, D11, D11T, D6R II, D7R II, M315, M320, PL87, PM620, PM622 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
