6V-9161 7/16″ X 11/16″ Thread Tee Adapter
Cat® 7/16" X 11/16" Thread Tee Adapter with ORFS to STOR
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fluid-carrying adapters meet extremely high standards for quality and reliability. These adapters are manufactured to strict tolerances to ensure leak-free connections. Each Cat® fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability, and corrosion protection, helping keep machines running reliably for the long term.
Features
- Wetted parts
- Meets or exceeds industry-standard part performance and provides a leak-free connection

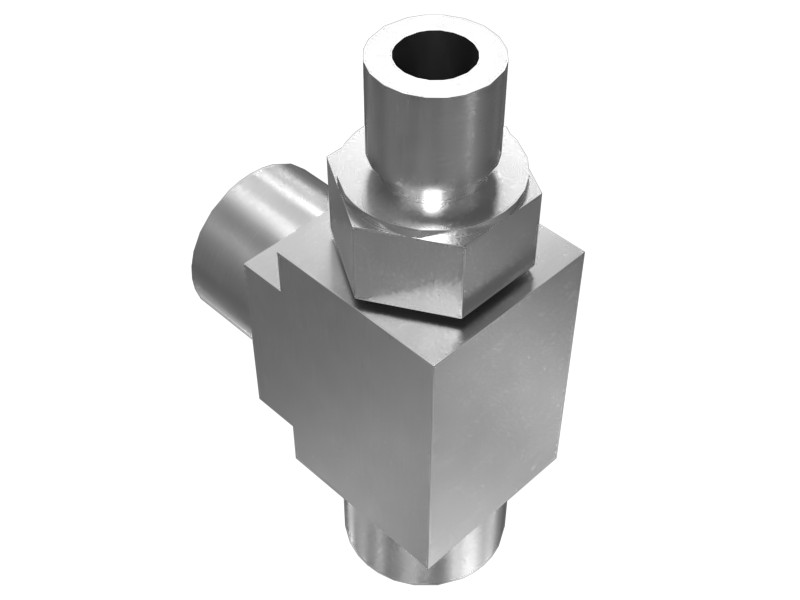

- The image provided is for reference only. The adapter construction may differ slightly from the illustration, but this part is interchangeable with the OEM part.
Applications
The adapter is designed to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material | Carbon Steel |
| Material Description | Plated Steel |
| Coolant and DEF Compatible Seals | 6V-9027 (7/16-20) , 6D-7128 (11/16-16) |
| Oil and Fuel Compatible Seals | 214-7566 (7/16-20), 228-7089 (11/16-16) |
| Transmission and Hydraulic Oil Compatible Seals | 3J-7354 (7/16-20), 6V-8397 (11/16-16) |
Compatible Equipment
- Track Loaders: 826K, 816F, 824G
- Motor Graders: 120
- Compactors: 824K, 816, 815, 814, 825K, CB10
- Engines: C32, C175-16
- Dozers: D6R LGP, D6T, D6R III, D7R II, D6N, D5N, D6R, D6R XL, D6R II
- Excavators: 3516E, 312C, 315C, 312C L, 621K, 345B
- Wheel Loaders: 992D, R1600H, 950H, 950, 950 GC, 950G, 950L, 962L, 924HZ, 962G, 966F, 924GZ
- Off-Highway Trucks: 793D, 794 AC, 793
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 24, 236B3, 236
Additional information
| Machine Model | 120, 236, 236B3, 24, 312C, 312C L, 315C, 345B, 3516E, 621K, 793, 793D, 794 AC, 814, 815, 816, 816F, 824G, 824K, 825K, 826K, 924GZ, 924HZ, 950, 950 GC, 950G, 950H, 950L, 962G, 962L, 966F, 992D, AP-600D, C175-16, C32, CB10, D5N, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R II, R1600H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
