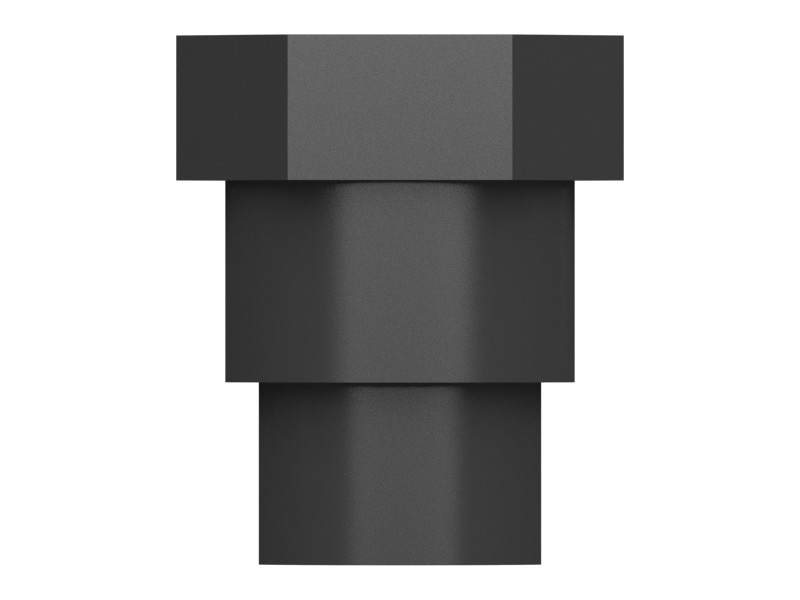

6V-8936 11/16″ ORFS Reducer
Cat® 11/16" ORFS Reducer
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat fluid-carrying adapters meet the highest standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Each Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection, ensuring long machine life and proper operation.
Features
- Plated steel adapter
- End 1: Swivel Nut
- End 2: Male ORFS
- End 1 Thread Size: 13/16-16
- End 2 Thread Size: 11/16-16
- Hex Size: 23.81 mm (0.937 in)
Applications
The adapter is designed to connect fluid-carrying hoses and rigid tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 32.5 mm (1.28 in) |
| Material Description | Steel |
| Hex Size | 23.8 mm (0.94 in) |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Coolant and DEF Compatible Seals | 180-8424 (13/16-16), 6D-7128 (11/16-16) |
| Oil and Fuel Compatible Seals | 228-7089 (11/16-16), 228-7090 (13/16-16) |
| Transmission and Hydraulic Oil Compatible Seals | 6V-8397 (11/16-16), 6V-8398 (13/16-16) |
Compatible Equipment
- Generator Sets: C4.4, C7.1, C9, 3512B, 3512E
- Track Loaders: 994K, 816F, 826K, 826G, 824G, 973K, 995
- Cold Planers: PL61, PL83, PL87
- Compactors: CB-534D, CB-14, CB-564D, 824K, 825K, 834K, 816, 815, 814
- Engines: C7, C18, C175-16
- Excavators: 320D, 320D2, 326D2 L, 390D L, 374D L, 349D2 L, 374F, 390F L, 336D, 329D, 330, 326D2, 308D, 336D2, 349D, 329D2 L, 329D2, 303, 349D2, 330D L, 349F L, 374, 314C, 329D L, 312D2, 301.6, 336D L, 323, 320D2 L, 330 L, 325C, 320C, 325D L, 313D2 GC, 312D, 328D LCR, 326, 330C L, 330C, 320D L, 315D L, 324D L, 320D RR, 336F L XE, 323D2 L, 313D2-GC, 320, 313F L, 385B, 345C, 345D L, 349E L, 621G, 349, 385C, 385C L, 350 L, 349E, 374F L, 365B, 6020B, 365C, 349D L, 320D FM, 314D LCR, 330D2 L, 324D, 329E L, 312D L, 325C L, 320 GC, 325D, 336E L, 326D L, 330 GC, 312C, 336, 336D2 L, 311D LRR, 340, 323D L, 320D2 GC, 336 GC, 330D2, 313D2, 336E LN, 320B, 330GC, 330D, 312E, 325B L, 335F LCR, 637G, 336F L, 311C, 318D2 L, 336F, 312E L, 336F LN, M325D L MH, 352, 350, 355, 333, 3508B, 6040, 301.8, 3512C, 325, 6060, 313F LGC, 336E LH, 315F LCR, 315C, 312C L, 621H, 365B L, 345C L, 390F, 365C L, 320E, 318D2, 312D2 GC, 349E L VG, 390D, 352F, 345B, 320C L, 312D2 L, 314D CR, 621K, 345 GC, 395, 637E, 335, 6030, 323D, 345D, 312F
- Asphalt Pavers: AP-600D
- Motor Graders: 120H, 14M, 12H, 16H, 140H, 14, 316F
- Wheel Excavators: M313D, M315D, M315, M320D2, M322D, M320, MD6250, M317D2, M315D2, MD6310
- Dozers: D11R, D5N, D6R II, D6T, D6N, D7R II, D8T, D5G, D5K XL, D8N, D3G, D6R III, D4G, D5K LGP, D8R, D8, D9
- Mini Excavators: 303.5, 301.7CR, 307D, 302CR, 301.5, 307C, 307B
- Wheel Loaders: 988H, 988G, 986H, 992C, 972H, 928G, 980G, 962G, 966K, 966F, 950G, 950H, 966H, 990H, 972G, 836, 834, R1700K
- Off-Highway Trucks: 725, 730, 740, 797F, 793, 793D, 793F, 798 AC, 771D, 735, 796 AC, 773D, 794 AC
