Description

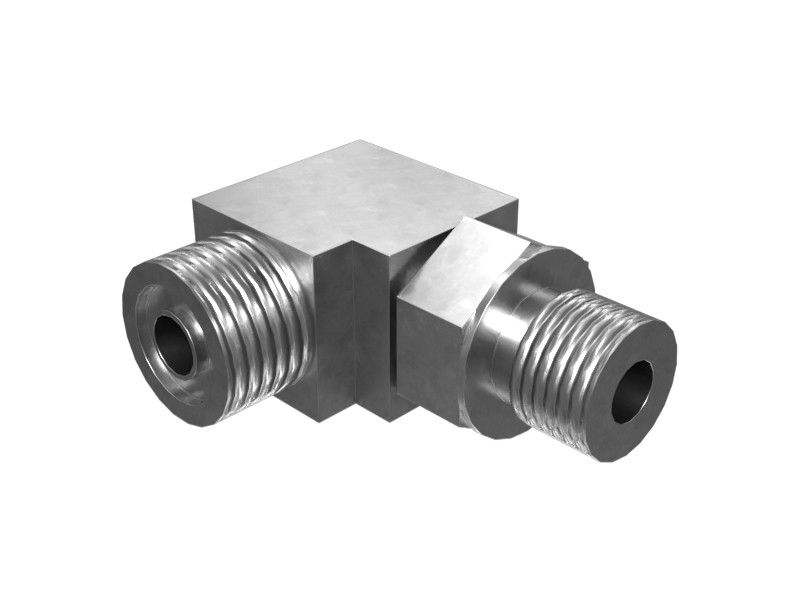

Elbow adapters are used to change the direction of flow to various angles.
Features
Cat® elbow adapters are designed to resist leaks and last in demanding applications.
Recommended Applications:
Cat elbow adapters are used in a wide range of hydraulic applications, from hydraulic oil systems to brake systems.
Specifications
| Material | Carbon Steel |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Material Description | Plated Steel |
| Length | 58.42 mm (2.3 in) |
| Height | 20.32 mm (0.8 in) |
| Width | 48.26 mm |
| Coolant and DEF Compatible Seals | 6D-7128 (11/16-16), 6V-3250 (9/16-18) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18), 228-7089 (11/16-16) |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18), 6V-8397 (11/16-16) |
Compatible Equipment
- Generator Sets: C7.1, 3512E, 3516C, C9, C4.4, 3512B, G3516C
- Track Loaders: 995, 990K, 994K, 834H, 826H, 953, 972, 826K, 993, 953K, 982, 953D, 824G, 963D, 826G, 963K, 816F, 992, 824C, 963, 973K
- Cold Planers: PL83, SE60 VT XW, PM-200, PM620, PL87, PL61, PL72, SE50 VT, PM622, TH360B
- Compactors: CB1.8, CB1.7, CC-34B, CW-16, CW-34, CB-66B, CB-564D, CB2.7, CS-583D, CB16, CB2.5, CB2.9, CB-534D, CB-34B, 834K, 825K, 824K, CB-24B, CB-334D, 814, 815, 816, CS-533C, CB-434D, CB-44B, CB-64B, CB-335D, CS-56, CB-36B, CB2.5 GC, CC2.7 GC, CB2.7 GC, CB10, CB15, CB13
- Engines: C13, C7, C32, C27, C15, C18, C12, C175-16
- Excavators: 336D2, 349D, 374D L, 390D L, 349D2 L, 330, 3126, 374F, 320D2, 320D, 326D2, 390F L, 336D, 305, 329D, 303C CR, 307E, 305C CR, 308D, 303, 303.5E2 CR, 306E2, 329D2 L, 307.5, 326D2 L, 329D2, 308E, 306E, 349D2, 313, 313 GC, 374, 349F L, 316 GC, 330D L, 305E2 CR, 320 GC, 325, 320, 336D2 L, 352, 340, 315 GC, 335, 330D2, 390F, 349E, 385C L, 365C, 345C, 385B, M325D L MH, 345D L, 349E L VG, 416E, 349E L, 621H, 390D, 349D L, 350 L, 385C, 345D, 365B, 374F L, 365C L, 340D L, 657G, 621G, 345C L, 621K, 120 GC, 365B L, 336, 305 CR, 333 GC, 326 GC, 326, 333, 6060, 395, 350, 349, 330 GC, 313D2, 320D3, 318D2, 336F L, 336 GC, 3516E, 432, 330C L, 320D L, 320 GX, 312E, 314D LCR, 314D CR, 312E L, 336E LH, 416F2, 313F LGC, 315D L, 637G, 385C FS, 345B, 434F2, 352F, SE60 V XW, 345 GC, 315, 355, 323, 637K, 323 GC, 303.5CR, 303CR, 320D3 GC, 3101, 328D LCR, 336D L, 6015B, 320D RR, 313F L, 311D LRR, 320C, 324D L, 320E, 320D2 L, 324D, 336F, 329D L, 325C, 325D, 329E, 320D FM, 336E L, 315C, 329E L, 312D2 L, 336F LN, 336F L XE, 312D L, 323D L, 330D, 320D GC, 323D, 325D L, 311C, 312D, 336E, 325C L, 330 L, 336D2 GC, 330C, 312C L, 313D, 312D2, 323D2 L, 320D2 GC, 318D2 L, 320B, 301.8, 325B L, 301.6, 312C, 637E, 330D2 L, 314C, 313D2 GC, 326D L, 323D2, 336E LN, 315F LCR, 335F LCR, 330GC, 313D2-GC, 312D2 GC, 336E H, 312F, 323GC, 330B, 325B, 311B, 318D L, 336D2 XE, 320C L, 326GC, 6015, 428F, 323 GX, 312 GC, 312 GX, 316 GX, 350MHPU, 3512C, 6040, 340D2 L, 3508B, 302.7CR, 3516B, 313 GX
- Asphalt Pavers: AP355F, AP655F, AP655F L, AP300F, AD63, AP-600D
- Skid Steer Loaders: 232D3, 249D3, 246D3, 239D3, 262D3, 299D3 XE, 3126B, 289D3, 236D, 246D, 279C, 236, 216B3, 262D, 226D3, 313D2 LGP, 236D3, 226B3, 259D3, 226B, 242D3, 24, 246C, 272D3, 232D, 236B3, 272D3 XE, 262C
- Motor Graders: 140 GC, 316F, 120, 16M, 14, 16M3, 14M, 16, 18, 160K, 12H, 140K, 120H, 140G, 140H, 12K, 16H, 349 GC
- Wheel Excavators: M315, MD6250, IT14G, M320, MD6310, MD6200, M322D, M317D2, M315D, M313D, M320D2, M315D2, M315GC
- Dozers: D10T, D11, D10N, D6N, D6R II, D6R III, D7R, D6T, D8R, D6R, D7R II, D7H, D6M, D4, D11N, D3K2 LGP, D11R, D6T LGP, D6K2, D7E, D8T, D5H, D9R, D5G, D5N, D11T, D10T2, D6R XL, D6R LGP, D10R, D5K LGP, D9T, D5M, D8L, D1, D7, D4G, D10, D8N, D9N, D9, D8, D9L, D3G, D5K XL, D5K2 XL
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 306, 305.5 GC, 308, 307, 307D, 302CR, 303.5E, 303.5, 307B, 307E2, 305.5, 305.5E, 305.5E2, 307C, 301.5, 305E2, 303.5D, 306.5, 303.5C, 308.5, 308E2, 310, 301.7CR
- Wheel Loaders: R2900 XE, RM400, 966L, 924K, 986H, R1700K, 988F, 980G, 950H, 966H, M314, RM500B, 966, 980, 950 GC, 988K, 926M, 924GZ, 962L, 950L, 972H, 928G, 972G, 966F, 992D, 988G, 988H, 910, 980H, 950, 938K, 834, 962G, 950G, 990H, 928HZ, 836, 924HZ, 966K, 972L, 938M, R1700 XE, 992C, R1600H, R1700G, R3000H, 980L, 906K, R1300G
- Off-Highway Trucks: 793D, 798 AC, 796 AC, 793F, 772G, 797F, 785, 730, 725, 777D, 770G, 789D, 794 AC, 785D, 789, 735, 777, 775G, 740, 793, 740B, 773F, 773E, 745C, 771D, 773D, 740 GC, 745, 777E, 725C2, 773
