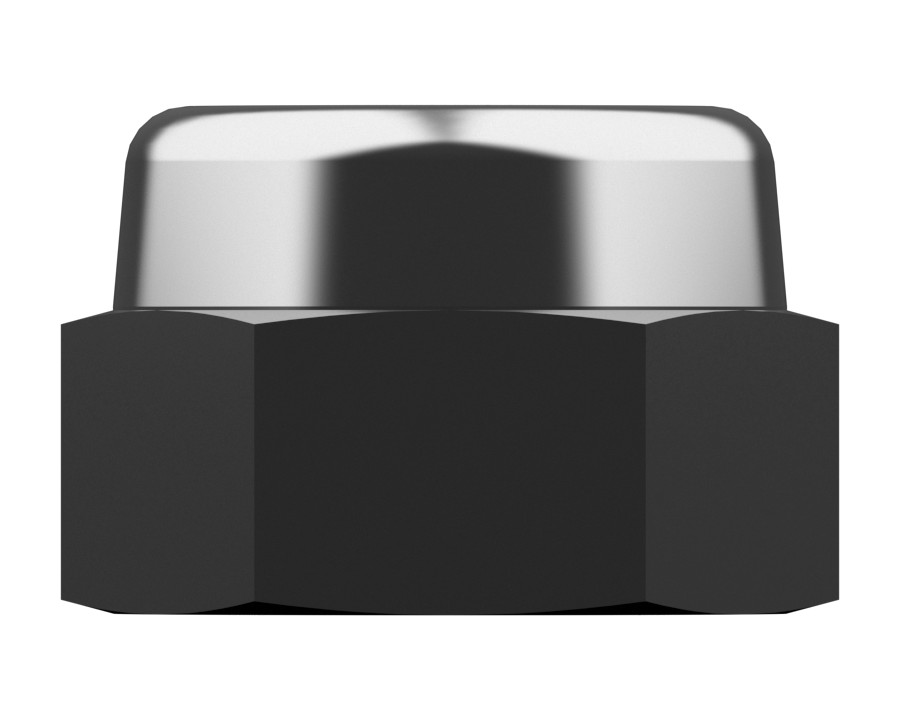

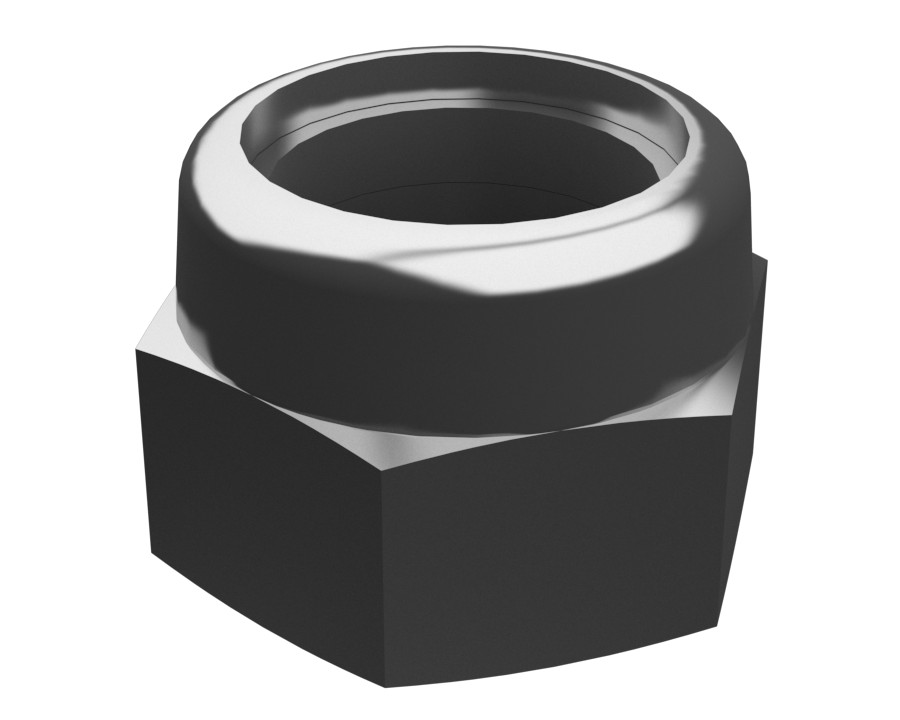

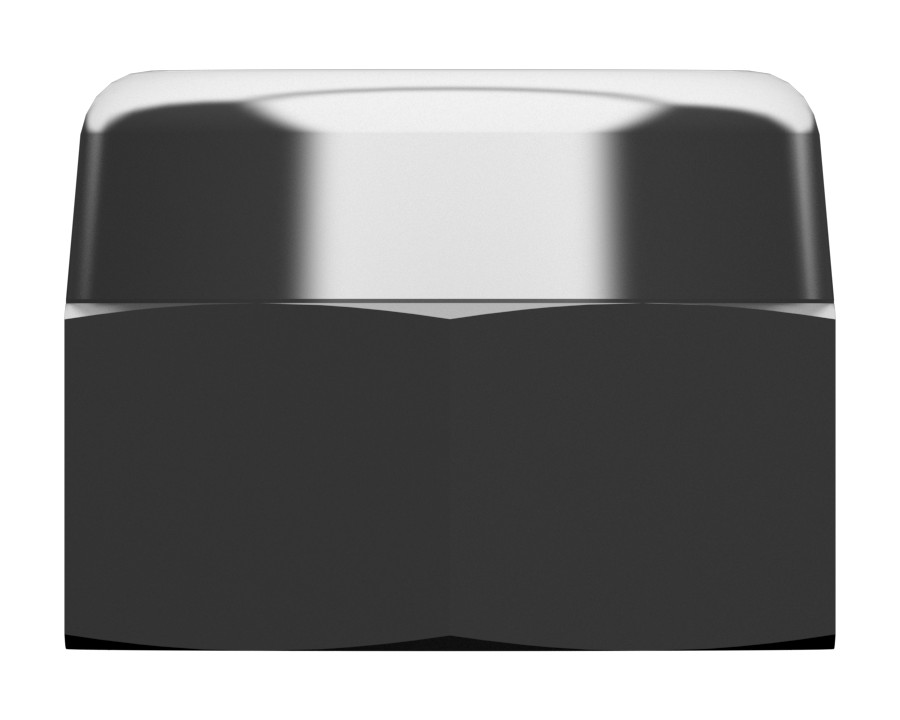

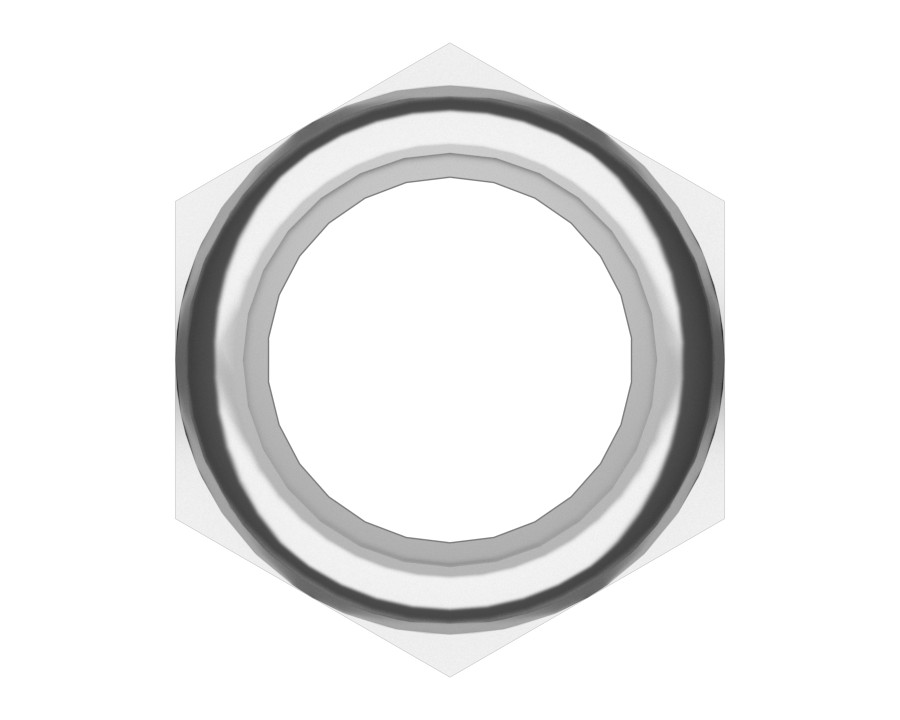

6V-7676 M24x3 Thread Lock Nut
Cat® Lock Nuts ensure a secure connection, prevent loosening, and maintain the stability of various mechanical assemblies.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Hole Thread Pitch | 3.00 |
|---|---|
| Thread Size | M24 mm (0 in) |
| Thread | Coarse Thread UNC |
| Hardened | Yes |
| Nut Width – 3 | 36 mm |
| Class or Grade | ISO 898-2 Class 10 |
| Thread Direction | RH |
| Locking Mechanism | Nylon Insert |
| Thickness | 27.1 mm (1.067 in) |
| Thread Size (Diameter × Pitch) | M24X3 mm |
| Nut Model | Lock Nut |
| Height | 27 mm |
| Drive Chain | 36 mm (1.417 in) |
| Material | Alloy Zinc |
| Material Description | ISO 898-2 Class 10 |
| Coating | Zinc Plated |
Compatible Equipment
- Motor Graders: 140 GC, 120, 14
- Track Loaders: 953D
- Cold Planers: PM620, PM622, SE50 VT, SE60 VT XW, PM-200
- Wheel Excavators: M322D, M315D, M313D, M320D2, M320, M317D2, M315D2, M315
- Compactors: CS12, CS-563E, CS7, CS-533C, CS-56, CP56B, CS68B, CS74B, CS56B
- Dozers: D11, D8, D11T, D10T2, D10T, D6N, D6T, D6R III, D8R, D6M, D8T, D6R, D9, D10
- Excavators: 313, 330D L, 323, 120 GC, 365B, 621K, 621H, 320C, 325B L, 325C, 325D L, 416E, 320 GC, 320, 345 GC, 323 GX, 320 GX, 340, 324D L, 657G, 637G, 323GC, 320D3, M325D L MH, SE60 V XW, 365B L, 320D3 GC
- Wheel Loaders: 950 GC, RM500B, RM400, 928HZ, 928G, R1700G, M314
- Off-Highway Trucks: 796 AC, 745, 794 AC, 740 GC, 785, 735, 725, 730, 793D, 773, 7495, 793, 798 AC, 740, 725C2, 745C, 740B
- Asphalt Pavers: AP655F, AP655F L, AP-600D, AD45, AD30, AD63
Additional information
| Machine Model | 120, 120 GC, 14, 140 GC, 313, 320, 320 GC, 320 GX, 320C, 320D3, 320D3 GC, 323, 323 GX, 323GC, 324D L, 325B L, 325C, 325D L, 330D L, 340, 345 GC, 365B, 365B L, 416E, 621H, 621K, 637G, 657G, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 7495, 773, 785, 793, 793D, 794 AC, 796 AC, 798 AC, 928G, 928HZ, 950 GC, 953D, AD30, AD45, AD63, AP-600D, AP655F, AP655F L, CP56B, CS-533C, CS-56, CS-563E, CS12, CS56B, CS68B, CS7, CS74B, D10, D10T, D10T2, D11, D11T, D6M, D6N, D6R, D6R III, D6T, D8, D8R, D8T, D9, M313D, M314, M315, M315D, M315D2, M317D2, M320, M320D2, M322D, M325D L MH, PM-200, PM620, PM622, R1700G, RM400, RM500B, SE50 VT, SE60 V XW, SE60 VT XW |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
