Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Hole Thread Pitch | 12 |
|---|---|
| Thread Size | 1.875 mm (0.074 in) |
| Drive Chain | 69.85 mm (2 3/4 in) |
| Thread Size (Diameter × Pitch) | 1.875×12 mm |
| Class or Grade | SAE J995 Grade 5 (120 ksi) |
| Thread Direction | RH |
| Thickness | 19.05 mm (0.75 in) |
| Height | 0.75 in |

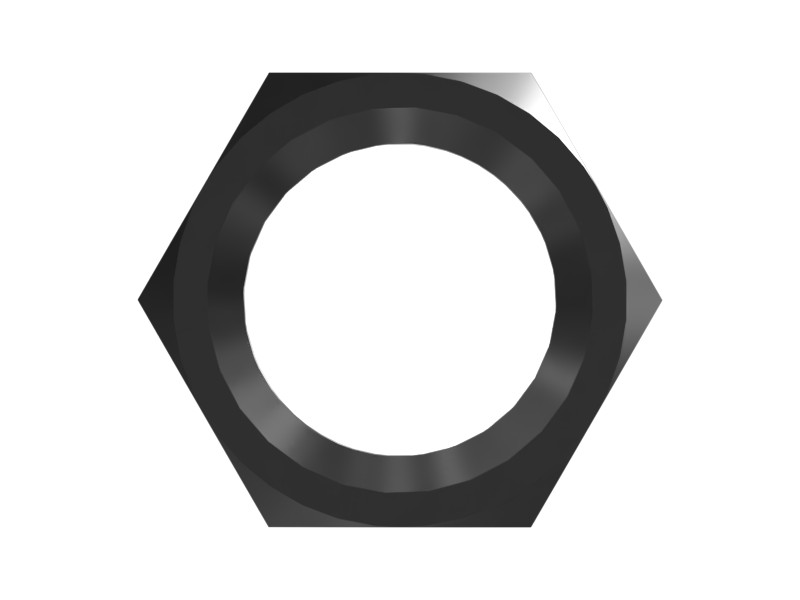

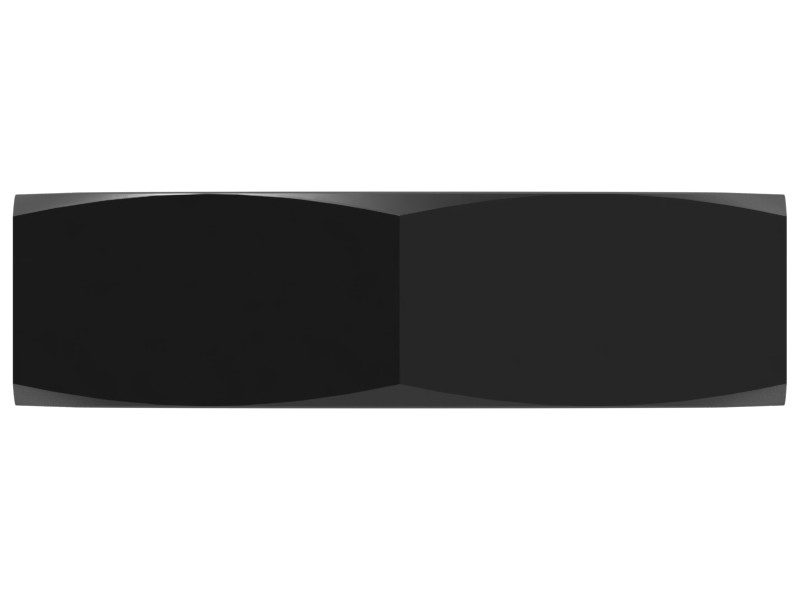

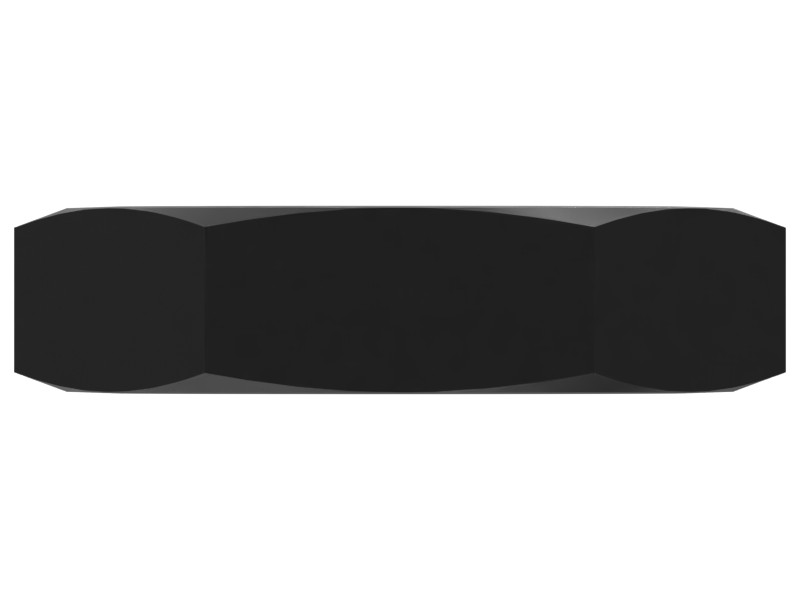

| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 1 7/8-12 in |
| Material Description | ISO 898-2 Class 8 Hardness |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
Compatible Equipment
- Motor Graders: 16M, 120, 18, 16, 14M, 140K, 120H, 140H, 160K, 12K, 140G, 16M3, 12H, 16H, 14
- Dozers: D5H
- Skid Steer Loaders: 24
