Description

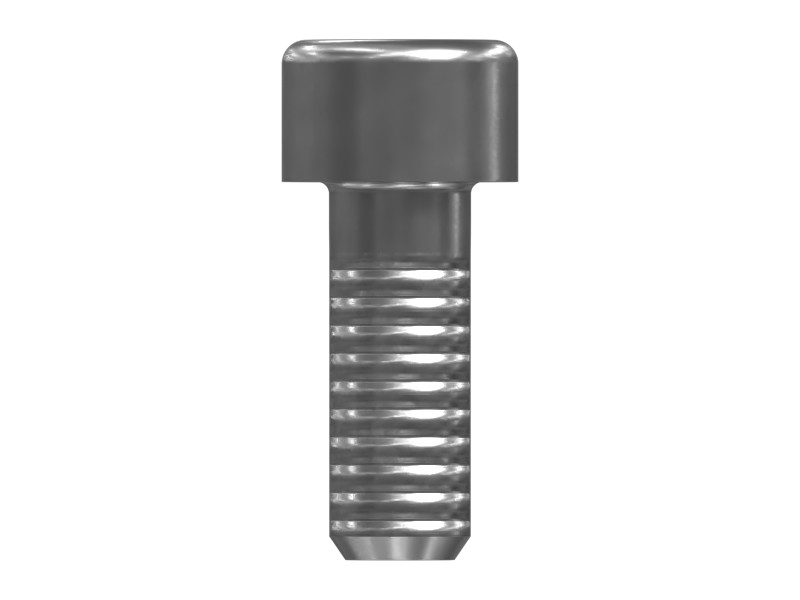

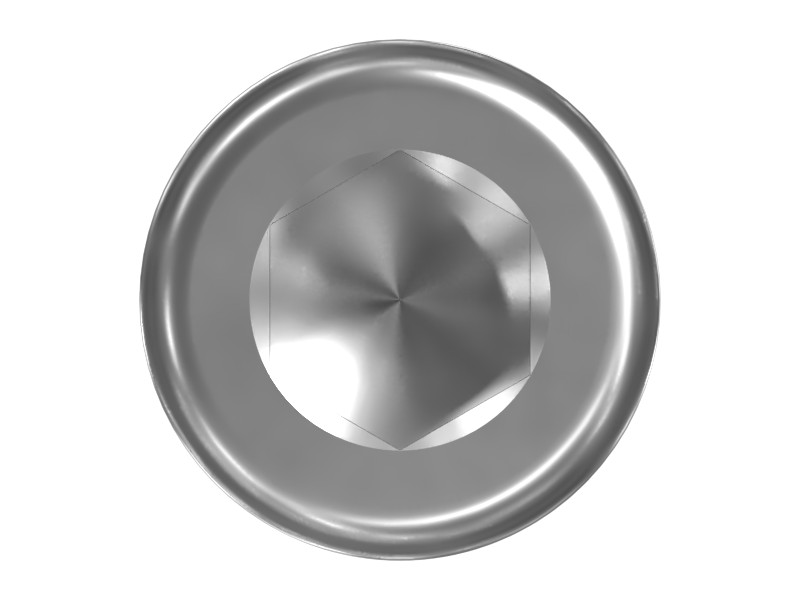

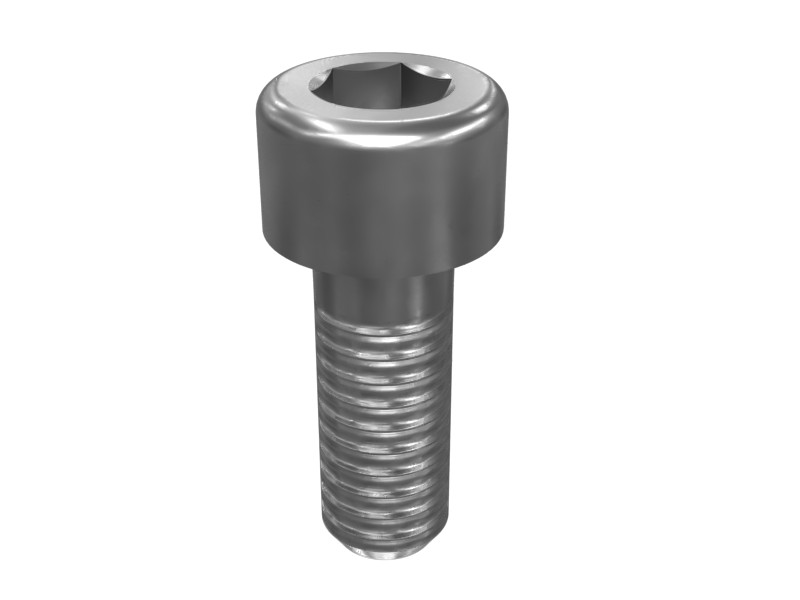

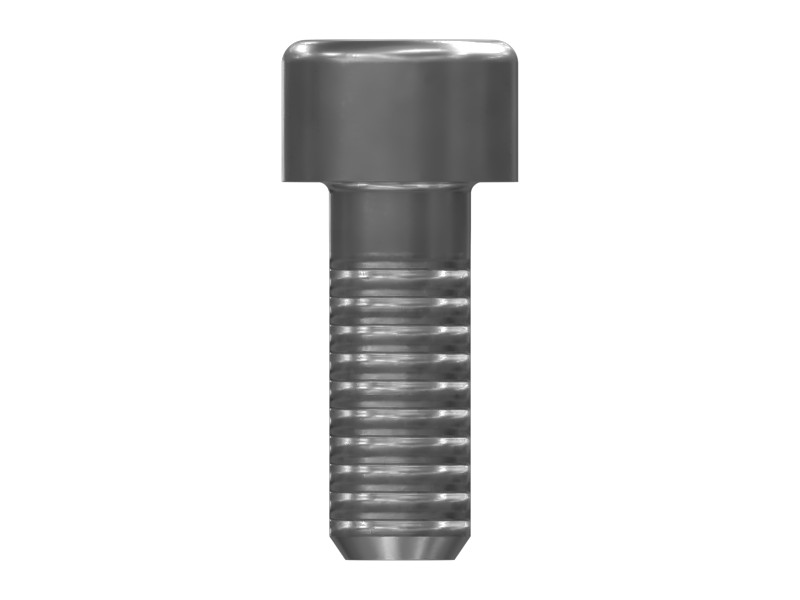

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Type | Socket Head |
| Thread Size | M6 mm (0 in) |
| Locking Feature | None |
| Coating | Zinc Phosphate + Oil |
| Class or Grade | ISO 898-1 Class 12.9 |
| Material | Alloy Mixed: Metal |
| Thread Size (Diameter × Pitch) | M6 X 1 mm |
| Bolt Length | 16 mm (0.63 in) |
| Handle Length | 3 mm (0.118 in) |
Compatible Equipment
- Generator Sets: 3516C, C4.4, G3516, 3512B, 3512E, G3516C, C7.1, C9
- Track Loaders: 953D, 972, 992, 973K, 994K, 963D, 824G, 826H, 826G, 995
- Cold Planers: PL83, PL72, PL87, PL61, SE50 VT, SE60 VT XW, PM620, PM622
- Compactors: CC-34B, CW-16, CS-533C, CB16, CS7, CS12, CS56B, CS12 GC, CS78B, CP12 GC, CP56B, CS68B, CS74B, CB-66B, CB-64B, C9.3B, CS11, CW-34, CB-34B, CB-44B, CB-534D, CB-36B, CB-335D, CB-564D, CB-14B, CB-434D, CS-583D, C13B, CS79B, CP11 GC, CB15, CB10, CB13, C-9, CS-54B
- Engines: C13, C15, C7, C32, C175-16, C18
- Excavators: 303C CR, 326D2 L, 305C CR, 3126, 329D2 L, 320D2, 303.5E2 CR, 330, 336D2, 308E, 320D, 336D, 326D2, 305, 349D2, 349D, 374F, 390F L, 329D, 308D, 307E, 303, 349D2 L, 305E2 CR, 330D L, 313, 313 GC, 316 GC, 349F L, 374, 6015B, 324D, 320C, 320D L, 329D L, 330C L, 336D2 L, 336, 325C, 336D L, 323D L, 330C, 320D RR, 325D L, 312D L, 323D2 L, 328D LCR, 325D, 320D2 GC, 311D LRR, 336F LN, 329E L, 336E, 336F L, 314D LCR, 315D L, 325B L, 312D, 325C L, 336E H, 314D CR, 320E, 330 GC, 336F L XE, 314C, 330GC, 320B, 336F, 336E L, 320D GC, 315F LCR, 318D2 L, 313D, 336 GC, 312D2 L, 313F L, 324D L, 312 GC, 311B, 340, 352, 335, 315 GC, 395, 3512C, 6015, 320D2 L, 315, 320D3, 333, 350, 352F, 350 L, 3516B, 6060, 374F L, 345C L, 434F2, 365C, 365B, 416F2, 349D L, 345D L, 340D L, 390F, 3516E, 349, 349E L VG, 313 GX, 312 GX, 316 GX, 320 GX, 326, 345 GC, 6030, SE60 V XW, 3508B, 349E L, 345B, 365C L, 432, 323 GX, 355, 330D, 330 L, 330D2, 329E, 312F, 320D FM, 311C, 318D L, 330D2 L, 313D2, 312C L, 330B, 313F LGC, 323D2, 336E LH, 6040, 320, 312E, 345D, 312E L, 312D2, 323D, 336D2 XE, 312C, 320C L, 326GC, 336E LN, 325B, 335F LCR, 312D2 GC, 345C, 349E, 365B L, 385C L, 385C, 350MHPU, 3101, 320D3 GC, 305 CR
- Asphalt Pavers: AP355F, AP655F, AP300F, AP655F L
- Skid Steer Loaders: 24, 289D3, 246D, 246D3, 299D3 XE, 249D3, 272D3, 236D3, 262D3, 262D, 259D3, 242D3, 232D, 236B3, 226D3, 232D3, 239D3, 272D3 XE, 236, 226B, 236D
- Motor Graders: 160K, 120H, 140H, 12K, 12H, 140K, 349 GC
- Wheel Excavators: IT14G, M315, M320, M313D, M322D, MD6250, MD6310, M320D2, M315D, M317D2, M315D2
- Dozers: D6R II, D6T LGP, D6K2, D5M, D6R III, D7R II, D6M, D6T, D6R, D1, D7E, D9T, D6R XL, D8T, D6N, D3K2 LGP, D7R, D5G, D5K2 XL, D8R, D11T, D3G, D4G, D10T
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 303.5C, 307B, 308E2, 303.5D, 303.5E, 307, 308, 307C, 307E2, 305.5E, 307D, 310, 305.5 GC
- Wheel Loaders: 972H, 950H, 980G, 972G, 950G, 980H, 962G, 910, R1700G, 966H, 950 GC, 972L, 924HZ, 928G, 966L, R1700K, 966, M314, RM400, 990H, 924GZ, 966K, R3000H, 986H, R2900G, R1300G, 928HZ, 988H, R1700 XE, R2900 XE
- Off-Highway Trucks: 797F, 793, 777D, 730, 789D, 773E, 740B, 793D, 771D, 798 AC, 796 AC, 794 AC, 785, 740, 785D, 793F, 773D, 770G, 725C2, 772G, 789, 735
