Description

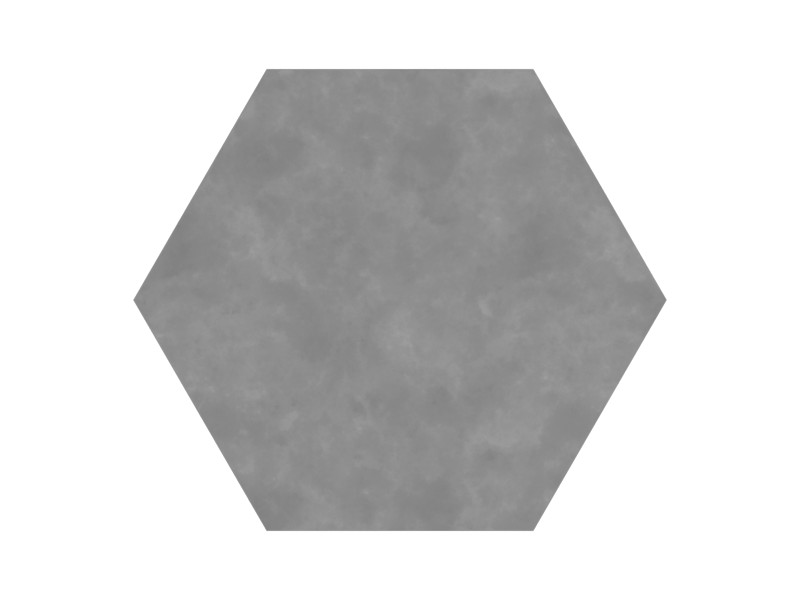

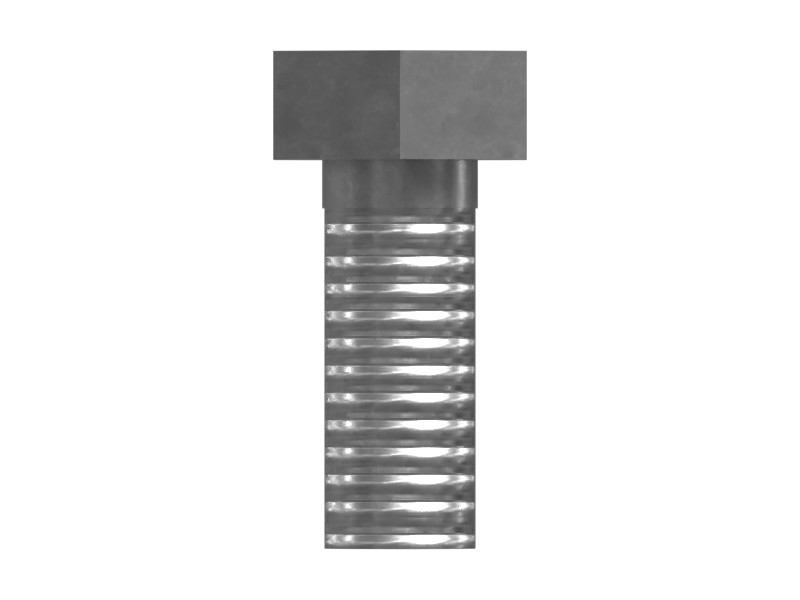

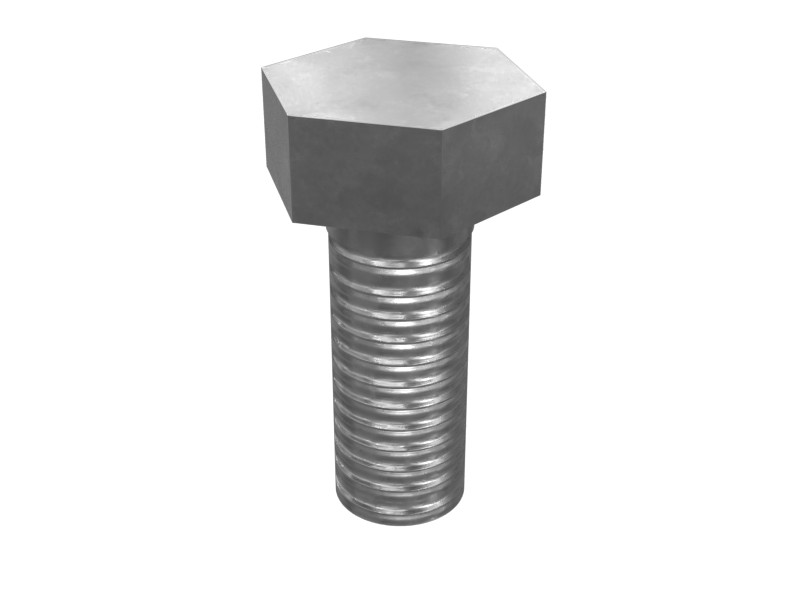

Hex head bolts (for example, 6V-5215) provide extremely strong bite-in performance.
Cat fastener parts are designed for specific applications based on size, strength, clamping force and past performance. This information is not available to other manufacturers. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one knows your equipment like we do.
Features
- Zinc-plated steel
- Thread Size: M8x1.25
- Drive: External Hex
- Drive Size: 13 mm
- Bolt Length: 20 mm
- Handle Length: 3.75 mm
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Applications
Use as needed. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Material | Alloy Zinc |
| Bolt Length | 20 mm (0.787 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 4 mm (0.148 in) |
| Groove Type | External Hex |
Compatible Equipment
- Generator Sets: C9, 3406B, 3406C, 3516C, 3512E, C7.1
- Track Loaders: 826K, 982, 972, 816F, 973K
- Cold Planers: PL87, TH360B, PM622, PM620, PL83, PL72
- Compactors: CS-54, CS-583D, C13B, CS-56, CS-533C, C9.3B, 824K, 834K, 825K, CS-563E, CB-14B, C-15, C-9, CS-533E
- Engines: C7, C13, C11, C15, C32, C27, C12, C18, C175-16
- Excavators: 3126, 329D, 336D2, 349D2, 374F, 336D, 349D2 L, 349D, 3456, 390F L, 330D L, 349F L, 374, 320D3, 329D L, 330C, 324D L, 336, 325D, 325D L, 336F L, 340, 349E L, 345B, 345 GC, 345C L, 349E, 390F, 345C, 621H, 345D L, 352, 355, 350, 336D2 L, 325C, 336D L, 336D2 XE, 320B, 324D, 336F, 326D L, 336E L, 325C L, 330 L, 325B L, 637K, 637G, 328D LCR, 336F LN, M325D L MH, 365B L, 6060, 3508B, 312 GX, 312 GC, 336E LH, 637E, 365B, 621K, 349D L, 416F2, 340D2 L, 349, 395, 345D, 349E L VG, 434F2, 330C L, 340D L, 352F, 336E LN, 336E, 336F L XE, 330D, 336E H, 315C, 350MHPU, 336D2 GC, 325B, 3516B, 374F L
- Asphalt Pavers: AD30, AP-600D, AD45, AD63
- Skid Steer Loaders: 3126B, 236B3, 239D3, 272D3 XE, 299D3 XE, 272D3, 249D3, 279C, 246C, 262C
- Motor Graders: 16M, 140H, 140G, 14M, 140K, 120, 16M3, 14, 18, 16, 12K, 120H, 140 GC, 12H, 160K, 16H, 349 GC
- Wheel Excavators: M320, M315D, M315D2, MD6200, M320D2, MD6250, M313D, M315, M317D2, M322D, MD6310
- Dozers: D6R II, D6T, D5N, D6T LGP, D8T, D6N, D7R II, D5M, D10R, D10N, D5H, D6R, D6R III, D6M, D11R, D7E, D5G, D8N, D4G, D6R XL, D3G, D8, D11T, D7, D9, D7R, D9T, D6R LGP, D10T
- Compact Track Loaders: 299D3
- Wheel Loaders: 950H, 938K, 972H, 972L, R1700G, RM500B, R1700 II, 950L, 924HZ, 962G, 966H, 928HZ, 966F, 928G, 950G, 924K, R1700K, 950 GC, 834, 988K, 924GZ, 938M, R1600H, RM400, 980, 966, 966L, 962L, 988G, 966K, 980L, 950, R2900 XE, 836, R1700 XE, 906K
- Off-Highway Trucks: 730, 797F, 796 AC, 770G, 740, 777D, 740 GC, 745, 745C, 772G, 794 AC, 740B, 793F, 735, 777E, 725, 773, 725C2, 793, 798 AC, 773E, 773D
