Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 8.8 |
|---|---|
| Thread Direction | RH |
| Thread Size | M5 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Bolt Length | 12 mm (1.378 in) |

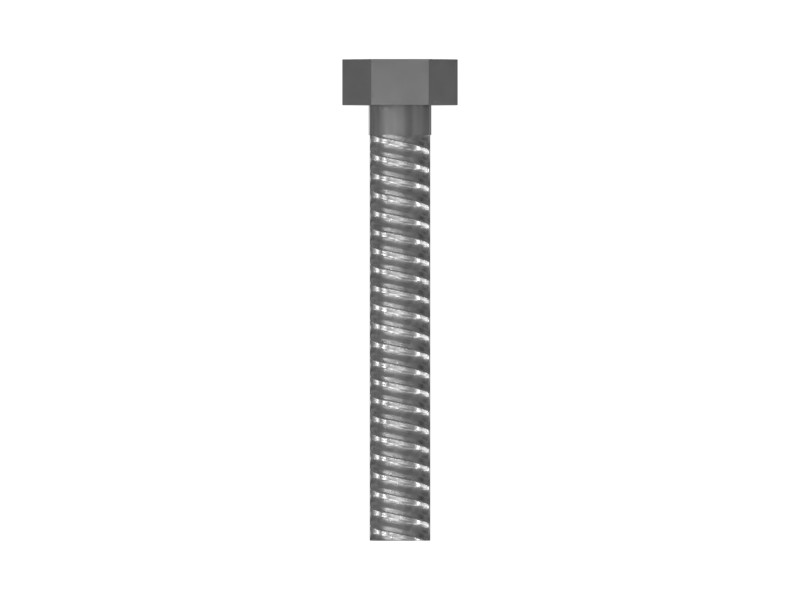

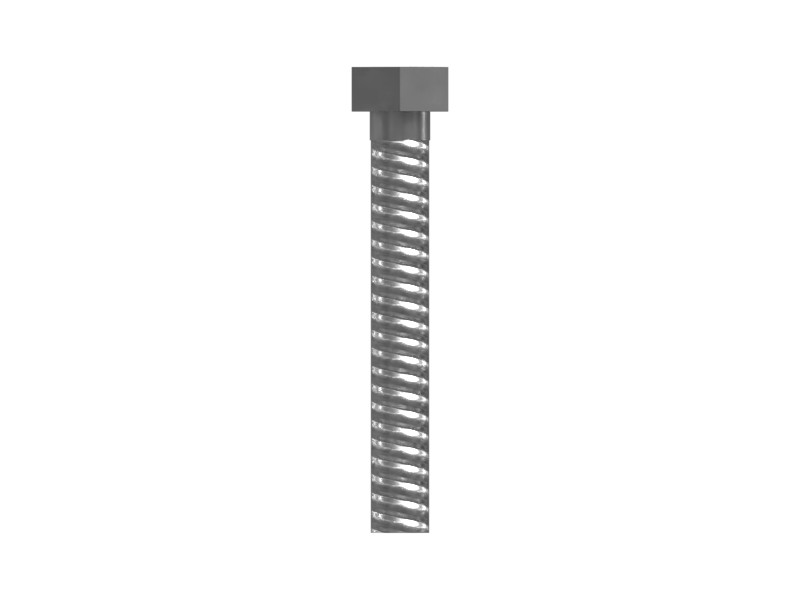

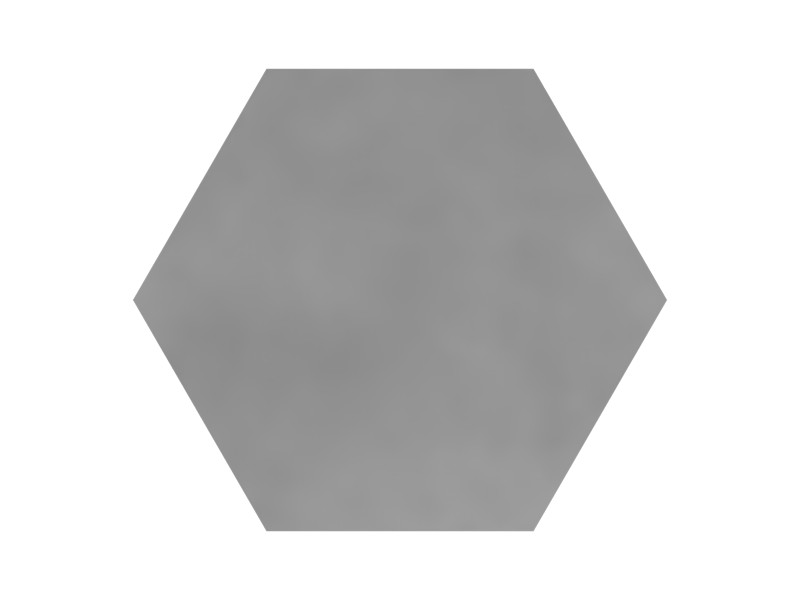

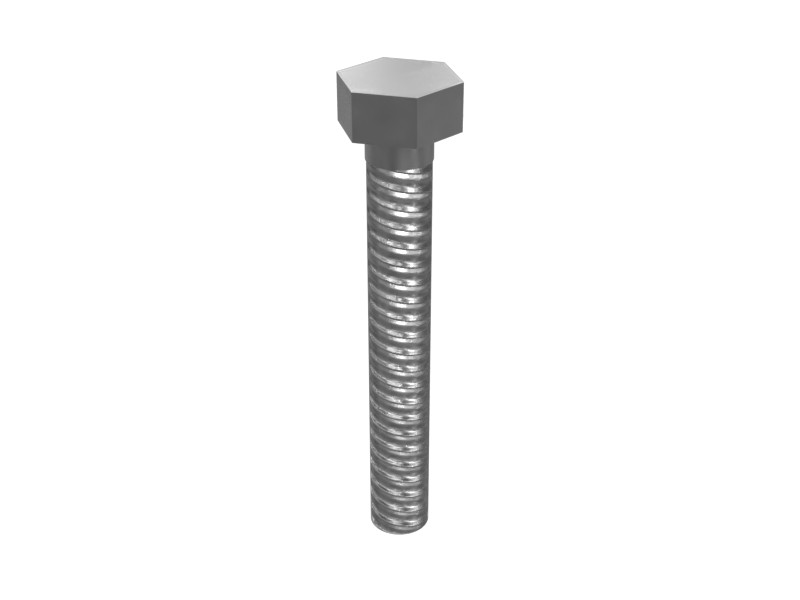

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Material | Alloy Mixed: Metal |
| Handle Length | 2 mm (0.094 in) |
Compatible Equipment
- Generator Sets: 3406C, 3516C, 3512B, G3516
- Track Loaders: 824G, 963, 826K, 973K, 953, 982, 972, 963K
- Cold Planers: PL61, PL87, PL72, PL83
- Motor Graders: 16M3, 16, 18
- Compactors: 834K, 825K, 815, 816, 814, 824K
- Engines: C32, C15, C27
- Dozers: D11, D6R II, D6T, D6N, D6R III, D6K2, D7R II, D8T, D5K LGP, D6T LGP, D3K2 LGP, D6R, D4, D9R, D7E, D6R LGP, D4G, D5K2 XL, D7R, D9T, D8R, D7, D9, D1, D8, D11T, D10T2, D5G, D10, D6R XL, D5K XL, D3G
- Mini Excavators: 307
- Excavators: 637K, 385B, 3508B, 365B, 3516B, 350 L, 330 L, 365B L, 621K, 621H
- Wheel Loaders: R1600H, 988K, RM400, 910, RM500B, 966L, 906K, 836, 972L, 950, 966, 834, 980
- Off-Highway Trucks: 775G, 777, 773, 777E
- Skid Steer Loaders: 24
Additional information
| Machine Model | 16, 16M3, 18, 24, 307, 330 L, 3406C, 350 L, 3508B, 3512B, 3516B, 3516C, 365B, 365B L, 385B, 621H, 621K, 637K, 773, 775G, 777, 777E, 814, 815, 816, 824G, 824K, 825K, 826K, 834, 834K, 836, 906K, 910, 950, 953, 963, 963K, 966, 966L, 972, 972L, 973K, 980, 982, 988K, C15, C27, C32, D1, D10, D10T2, D11, D11T, D3G, D3K2 LGP, D4, D4G, D5G, D5K LGP, D5K XL, D5K2 XL, D6K2, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7R, D7R II, D8, D8R, D8T, D9, D9R, D9T, G3516, PL61, PL72, PL83, PL87, R1600H, RM400, RM500B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
