Description

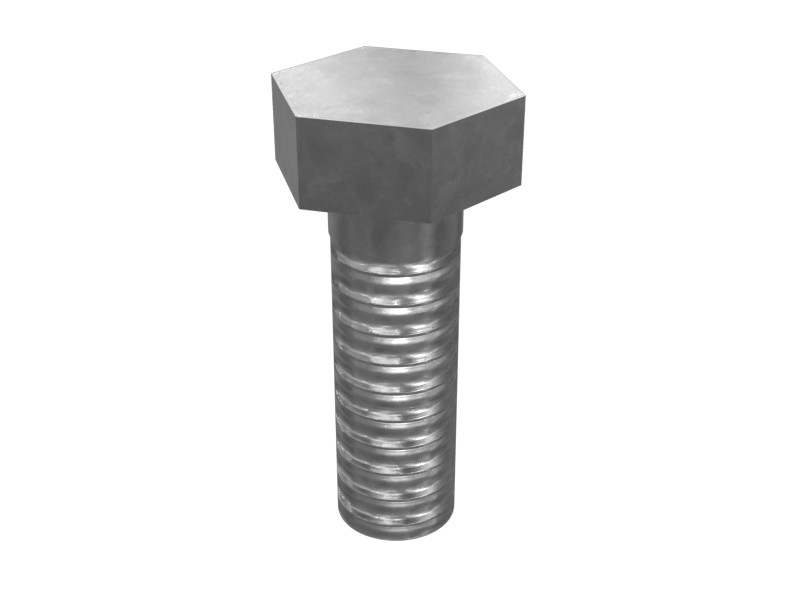

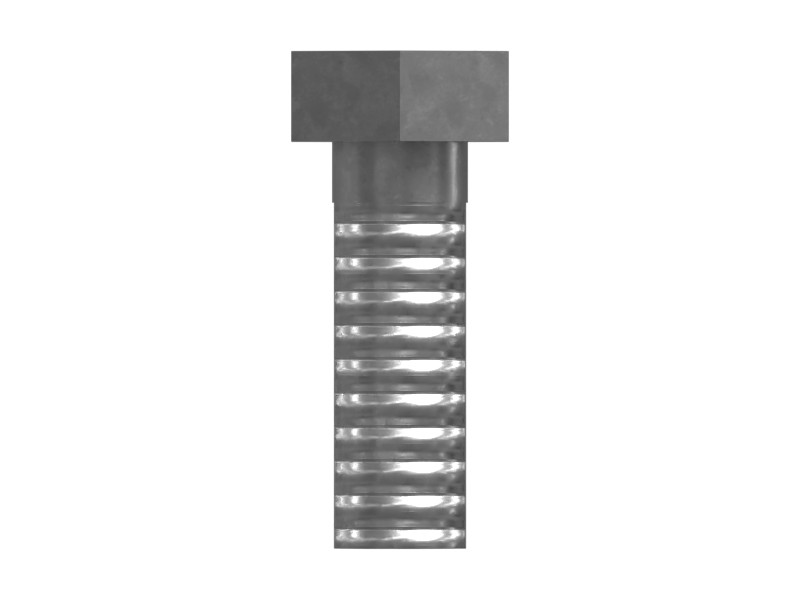

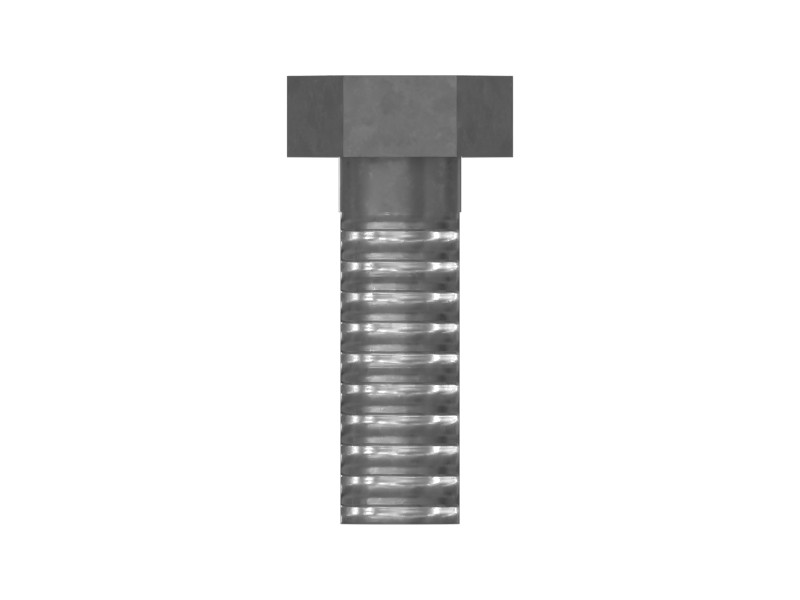

Hex head bolts (for example, 6V-1820) provide extremely strong bite-in performance.
Cat fastener parts are designed for specific applications based on size, strength, clamping force and past performance. This information is not available to other manufacturers. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one knows your equipment like we do.
Features
- Zinc-plated steel
- Thread Size: M10x1.5

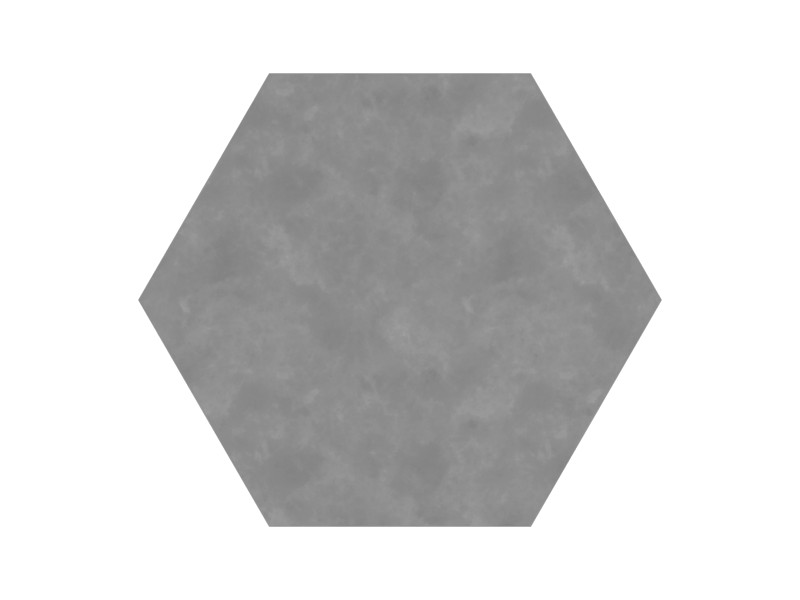

- Drive: External Hex
- Drive Size: 16 mm
- Bolt Length: 30 mm
- Handle Length: 4.5 mm
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Applications
Use as needed. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | M10 mm (0 in) |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 30 mm (1.181 in) |
| Material | Steel |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 5 mm (0.177 in) |
| Groove Type | External Hex |
Compatible Equipment
- Generator Sets: 3512B, C9, 3406C, C7.1, C4.4, G3516C, 3512E, G3516
- Track Loaders: 973K, 993, 982, 972, 992, 834H, 995, 994K, 990K, 826K, 816F, 824C, 953D, 826G
- Cold Planers: PL87, PM620, PM622, PL83, TH360B, PL72
- Compactors: 815, 816, 814, C9.3B, CS-533C, 825K, C13B, 824K, CS-583D, 834K, C-9, CB10
- Engines: C13, C11, C7, C27, C32, C15, C6.6, C175-16, C18, C12
- Excavators: 3126, 336D2, 349D, 336D, 390D L, 330D L, 349F L, 340, 350, 336F LN, 336F L, 336D L, 330C L, 336F L XE, 336E, 336E L, 336, 345D L, 352F, 385C, 345C, 345B, 6020B, 621H, 365B, 340D2 L, 345C L, 345D, 352, 349D L, 349E L VG, 6060, 349, 3516E, 349E L, 365B L, 345 GC, 330 L, 336D2 L, 330D, 385C L, 349E, 6015, 6030, 355, 120 GC, 323 GX, 320 GX, 385C FS, 621K, 390D, 340D L, 6040, 3508B, 3512C, 336F, 330C, 320C, 336E LH, 3516B, 350MHPU, 320D FM, 336D2 GC, 336E H, 637G, 637K, 336D2 XE, 336E LN, 657G, 637E, 325B L, 6015B
- Asphalt Pavers: AD30
- Skid Steer Loaders: 3126B, 236D3, 24, 226D3, 232D3
- Motor Graders: 160K, 140G, 120, 140H, 120H, 12K, 140K, 12H, 3606, 14, 16M, 16, 18, 14M, 16H, 16M3, 349 GC
- Wheel Excavators: MD6310, M320, M315, IT14G, MD6250
- Dozers: D7G, D6G2 XL, D9, D8T, D7R II, D9T, D6R II, D6R III, D6N, D7E, D6R LGP, D8N, D6T, D11T, D6G2 LGP, D10T2, D11, D7, D10N, D10, D10T, D6T LGP, D6R, D5N, D6M, D9R, D7G2, D6R XL, D5M, D7R, D8, D10R
- Wheel Loaders: 950, R2900 XE, 950 GC, RM400, 910, 980, 966, 972L, R1700K, 834, RM500B, 986H, 988H, 950H, 928G, 950G, 988G, 972G, 988K, 972H, 966H, 966K, 980H, 966F, 962G, 924HZ, 924GZ, 966L, 928HZ, 962L, 950L, R1300G, R1700G, 980G, 980L, R1700 II, 990H, R1600H, R1700 XE, 836
- Off-Highway Trucks: 789, 797F, 777E, 785, 789D, 793F, 796 AC, 798 AC, 777, 793, 775G, 793D, 740 GC, 735, 730, 725, 773, 794 AC, 7495, 772G, 785D, 773F, 745C, 740B, 740, 770G, 777D, 745, 725C2
