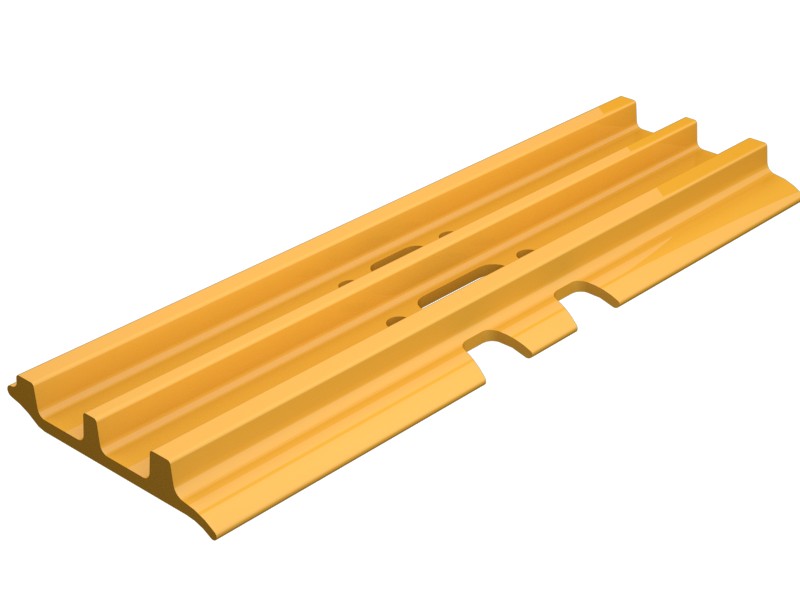

6I-9454 Track Shoe
Cat® 700 mm wide 700 triple grouser track shoes can provide improved traction, stability, and undercarriage support
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
- Triple grouser track shoes provide less penetration and traction than single grouser track shoes, but offer better turning ability. Triple grouser track shoes are standard on track-type loaders and excavators because these machines require less turning resistance and greater maneuverability.
- Center punched track shoes have an opening between the bolts that allows packed material to be released.
Specifications
| Abrasion Resistant Material | 0 ARM |
|---|---|
| Connector Type | Regular |
| Number of Grousers | Triple |
| Shear | No |
| Main Bolt Thread | M20 |
| Offset | None |
| Hole Type | Slotted |
| Track Reinforcement System | None |
| Track Bolt Thread | M20 |
| Material | Boron Steel |
| Track Shoe Width | 700 mm (27.6 in) |

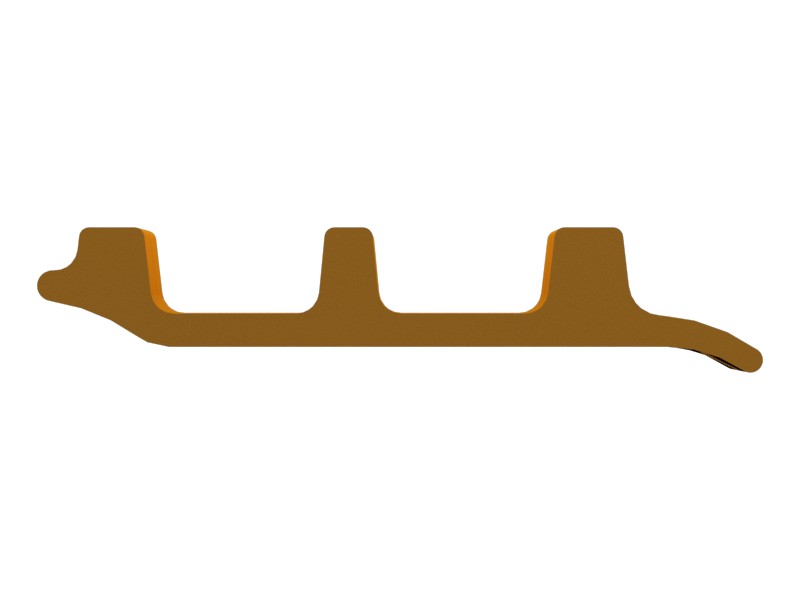

| Track Shoe Type | Triple Grouser, Center Punched |
| Undercarriage System | HDXL |
| Track Shoe Bolt Hole Spacing A | 69 mm |
| Track Shoe Section 1E Specification | 1E1846 |
| Plate Thickness | 10 mm (0.394 in) |
| Track Shoe Bolt Hole Spacing B | 119.57 mm |
| Track Shoe Bolt Hole Spacing C | 155.57 mm |
| Bolt Hole Diameter | 21 mm (0.827 in) |
Compatible Equipment
- Excavators: 320, 320 GC, 320D L, 325, 324D, 320B, 320C, 323, 320D2 L, 323D L, 323D2 L, 329D L, 329E, 320E, 325D, 320D FM, 320D RR, 330D2, 320D2 GC, 315C, 315D L, 324D L, 345C L, 320D2, 320D, 326D2 L
