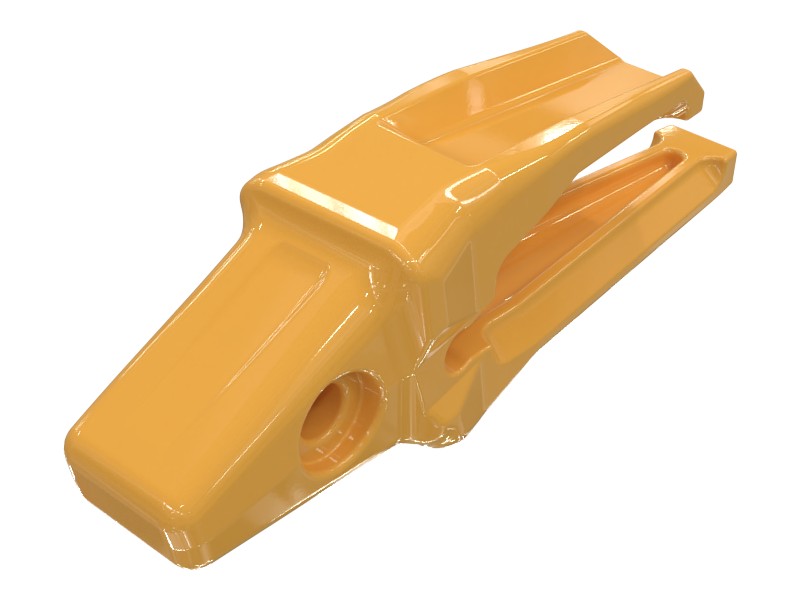

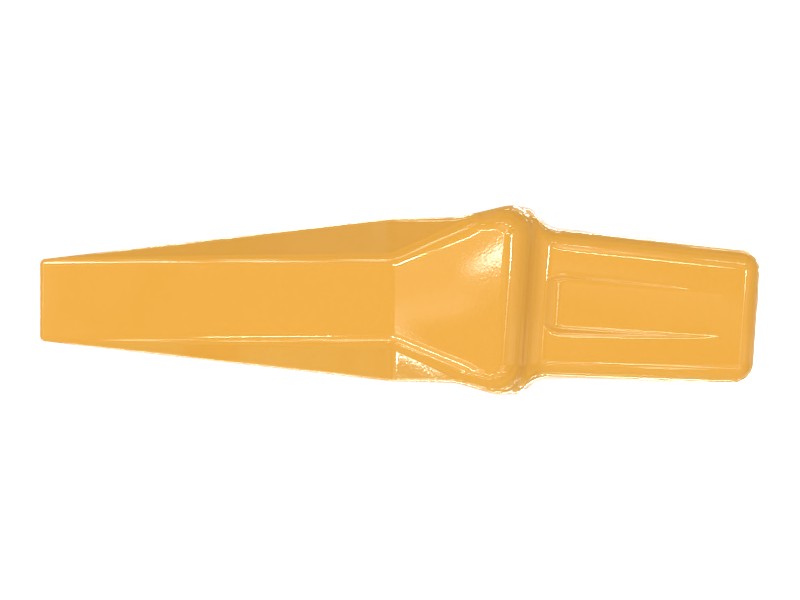

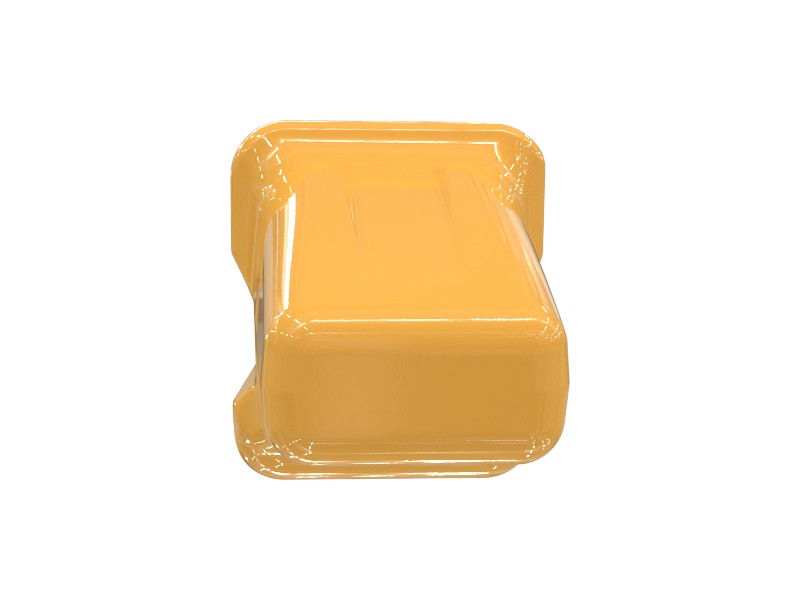

Description
Cat® J Series Adapters offer unmatched manufacturing precision to protect your machine's bucket from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistently superior protection.
Cat® corner shroud adapters provide excellent corner protection along with all of the added penetration benefits of bucket teeth.
Our adapters are durable and cast from steel, retaining hardness and offering long wear life so your machine delivers the performance you need. Always choose Genuine Cat bucket ground engaging tools to protect your investment.
Features
- J400 right bolt-on corner adapter fits a 45 mm base edge with a 22.5 degree bevel angle
Applications
- Excavator Buckets
Specifications
| Bottom Bar Length | 252 mm (9.921 in) |
|---|---|
| Bevel Angle | 22.5 |
| Corner Stop Angle | 4 |
| Attachment Method | Weld-On |
| Number of Holes | 0 |
| Hole Spacing | 0 mm |
| Base Edge Thickness Grade | 45 |
| Overall Length | 390 mm (15.354 in) |
| Width | 102 mm (4.016 in) |
| Material | Low Alloy Steel |
| Series | J Series |
| Type | Two Strap |
| Size | J400 |
| Wear or Durability | Standard |
| Adapter Size | J400 |
| Wear Material | Standard Optional |
| Attachments | Weld-On |
| Machine Model | Excavator |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D L, 320B, 320D2 L, 323D L, 336F L XE, 320C, 330D2 L, 330 L, 323, 320, 324D L, 325C, 330D2, 336D L, 325D, 325C L, 330C L, 336 GC, 323D2 L, 320D GC, 336D2 GC, 325D L, 336D2 L, 336E L, 324D, 320D L, 330D, 325B L, 325B, 336E, 329E, 330 GC, 326GC, 326, 326 GC, 333 GC, 320 GC, 336E H, 330C, 336F L, 329D L, 330B, 329E L, 336F, 320D2 GC, 336E LH, 336E LN, 326D L, 320D, 320D2, 329D2, 326D2 L, 329D2 L, 326D2, 336D, 329D, 330, 336D2
Additional information
| Machine Model | 320, 320 GC, 320B, 320C, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323, 323D L, 323D2 L, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330 L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 333 GC, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
