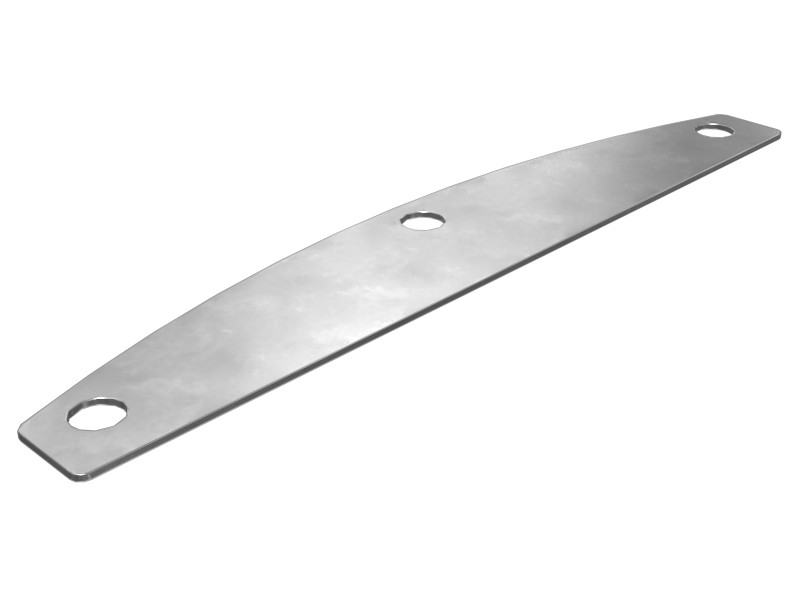

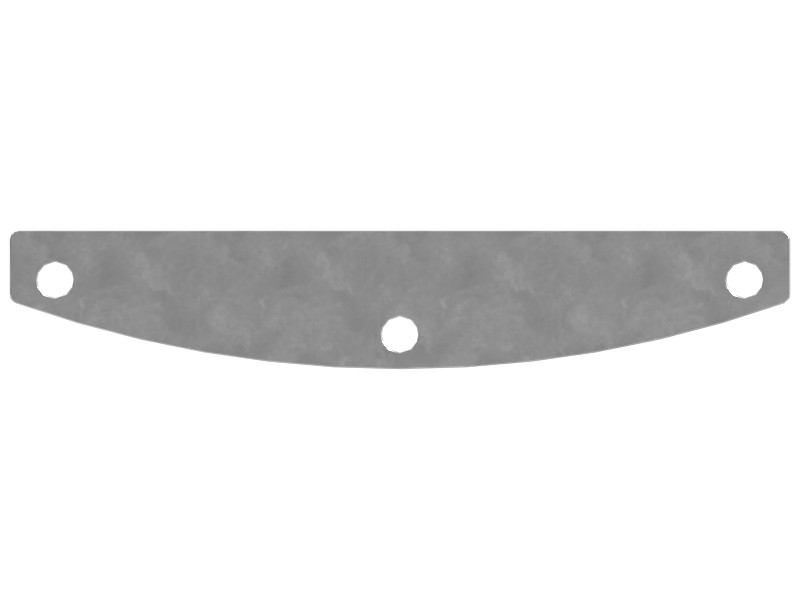

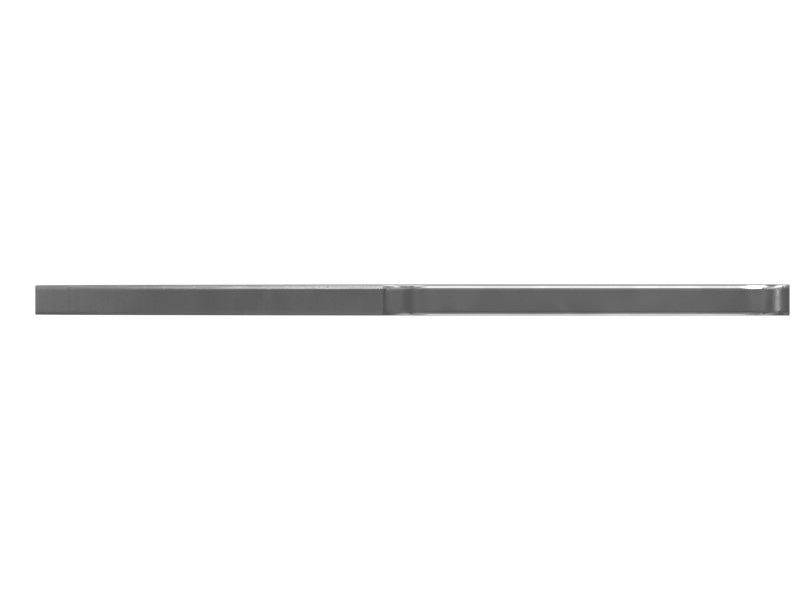

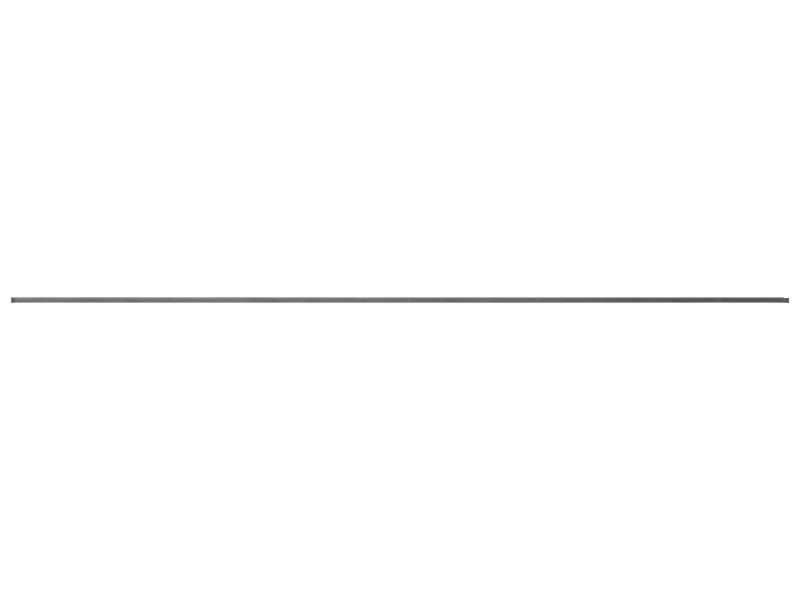

6G-4848 3 mm Thick Drawbar Spacer Plate
Cat® shim plate for motor graders, track shoe turntable guides and drawbars, dimensions: 431 X 76 X 3 mm.
Description
The shim plate (part number 6G-2027) is used in combination with shims to provide a suitable wear plate for the drawbar track plate circle guide spacing on certain graders.
Features
- Steel plate
- Hole Size: 20.5 mm (0.8 in), 3 Places
- Length: 431 mm (17.0 in)
- Width: 76.2 mm (3.0 in)
- Thickness: 3 mm (0.1 in)
- For use with M20 or 3/4 in fasteners
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 431 mm (17 in) |
|---|---|
| Width | 76.2 mm (3 in) |
| Thickness | 3 mm (0.1 in) |
| Hole Size | 20.5 (3X) mm (0.8 (3X) in) |
Compatible Equipment
- Motor Graders: 120H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
