Description

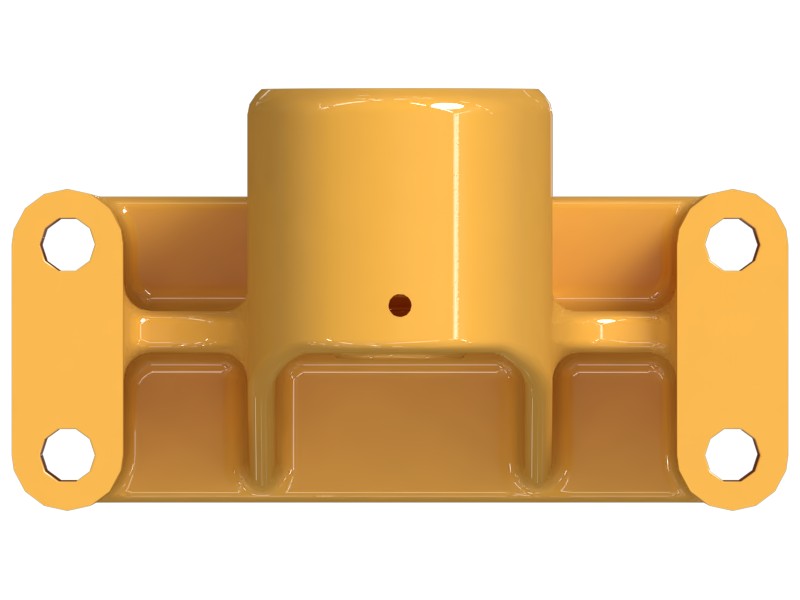

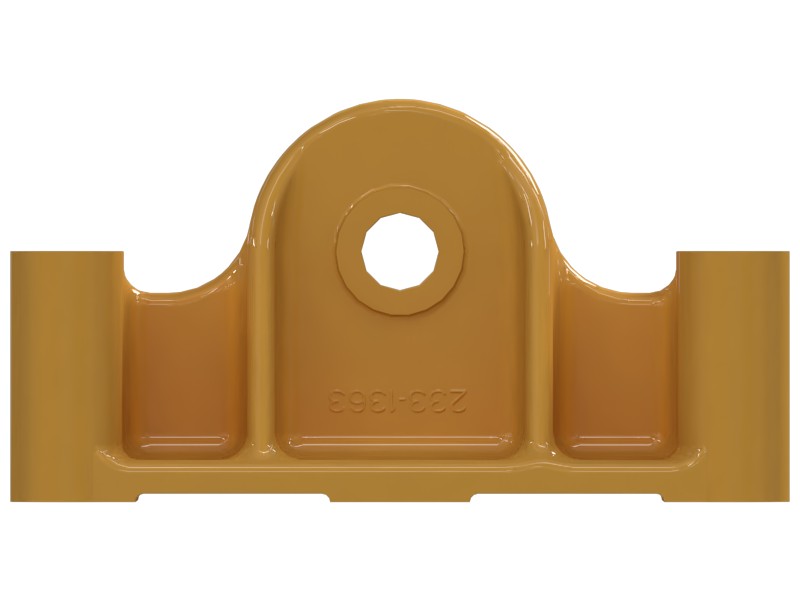

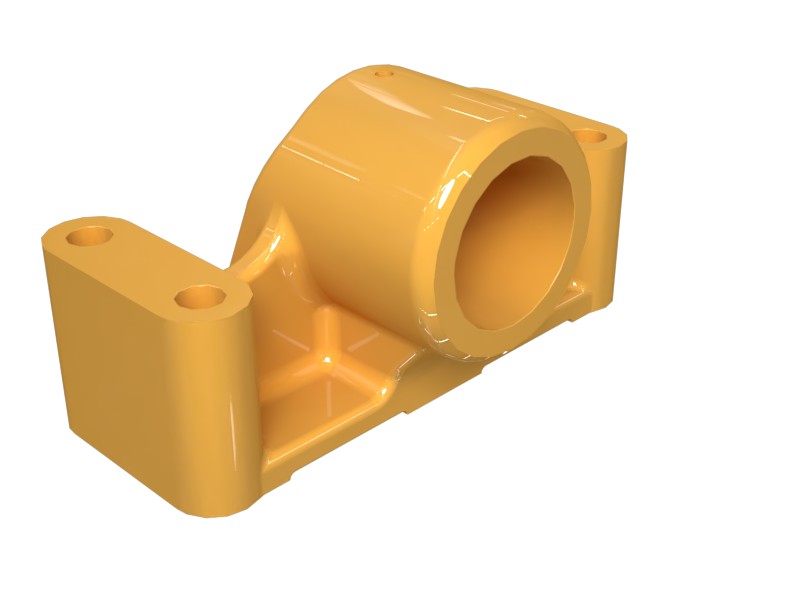

The tailgate pivot is used to turn the tailgate so that it opens or closes. It connects the tailgate to the body and acts as a hinge point to ensure the tailgate moves safely. It can withstand the weight and forces applied to the tailgate during operation.
Features
- Made of cast steel for high strength and stiffness
- Contains 1.2-1.6% manganese for improved corrosion resistance and hardenability
Applications
The tailgate pivot is used for precise control of the tailgate.
Specifications
| Hole Diameter | 76.33 mm (3.01 in) |
|---|---|
| Overall Length | 280 mm (11.02 in) |
| Overall Width | 152 mm (5.98 in) |
| Height | 145 mm (5.71 in) |
| Overall Height | 145 mm (5.71 in) |
| Mounting Hole Spacing | 76; 240 mm (2.99; 9.45 in) |
| Length | 280 mm (11.02 in) |
| Material | Steel Casting, Rubber |
| Width | 152 mm (5.98 in) |
Compatible Equipment
- Off-Highway Trucks: 745, 740, 740B, 730, 745C, 735, 725C2, 725
