Description

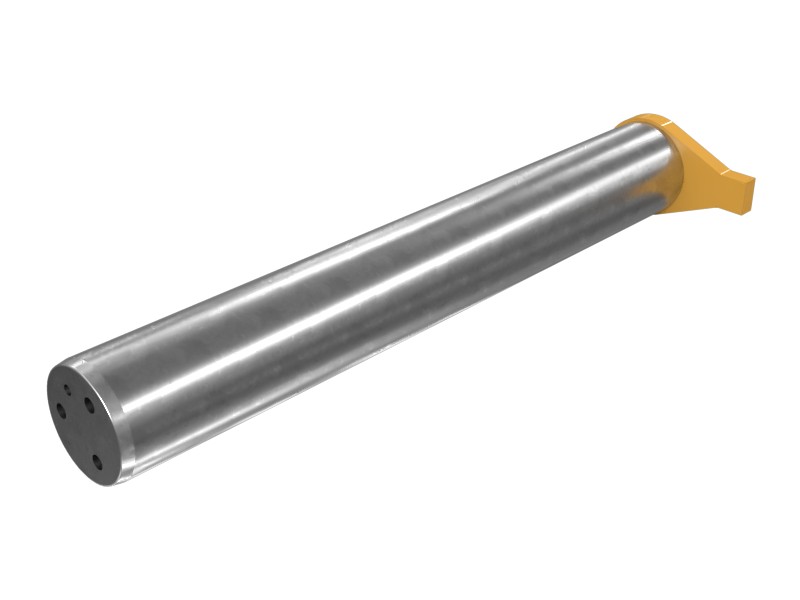

Pin Description:
The excavator bucket joint, also known as a bucket pin or bucket tool pin, is used in heavy machinery, especially in construction and earthmoving. It is mainly used to connect the bucket or work tool to the boom or stick of the machine.
Features
- Designed to withstand forces and tension.
- Corrosion resistant.
- Durable and wear resistant.
Applications
The excavator bucket pin connector is used to secure the bucket or attachment to the boom or stick of the machine. It serves as a pivot point, allowing the bucket to move and articulate during digging or material handling. It is widely used in Caterpillar 329D, 330D, 336, 336D, 336E, 336F, 340, 340D, 340F, 345, 345C, 345D, 349, 349D, 349E, 349F, 350, 352, 352F, 355, 365B, and 365C excavators, 330D material handlers, and 336D, 345C, and 365C OEM applications.
Specifications
| Outside Diameter | 79.85 mm (3.144 in) |
|---|---|
| Internal Grease Passage Hole | Yes |
| Plating | No Plating |
| Effective Length | 529.5 mm (20.846 in) |
| Puller Thread | Yes |
| Material | Alloy Steel |
| Overall Length | 549.5 mm (21.63 in) |
| Pin Diameter | 79.85 mm (3.14 in) |
| Weight | 21.76 kg (47.97 lb) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 330D L, 336D2 L, 352, 336, 336D L, 336 GC, 330D, 345C, 336E L, 340, 345 GC, 340D2 L, 340D L, 350, 355, 349, 336D2, 336D
