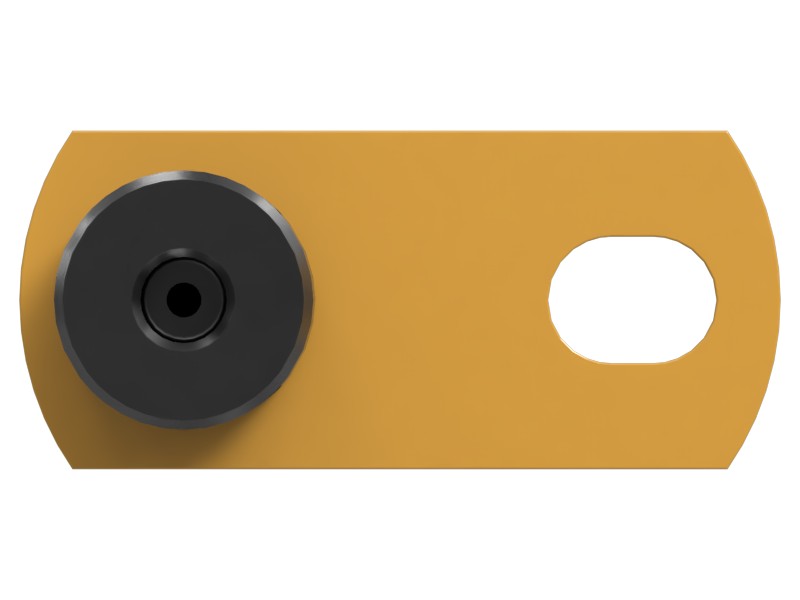

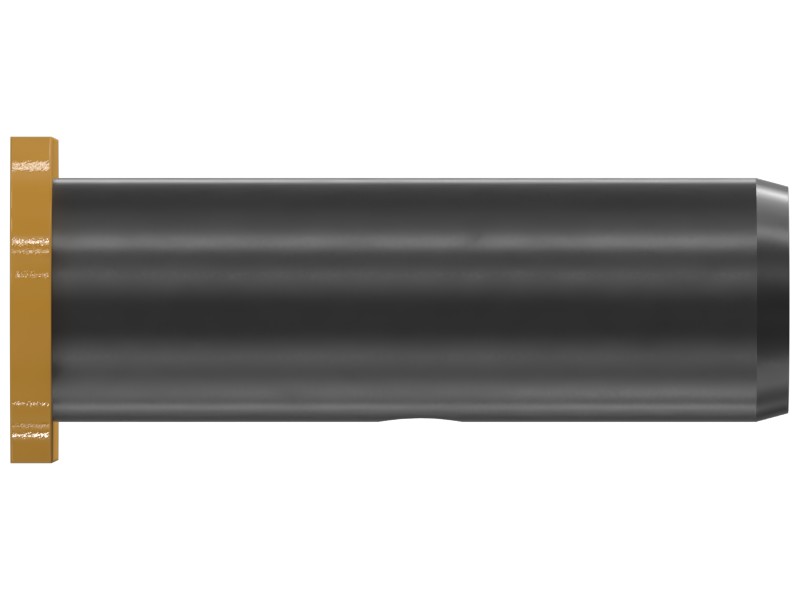

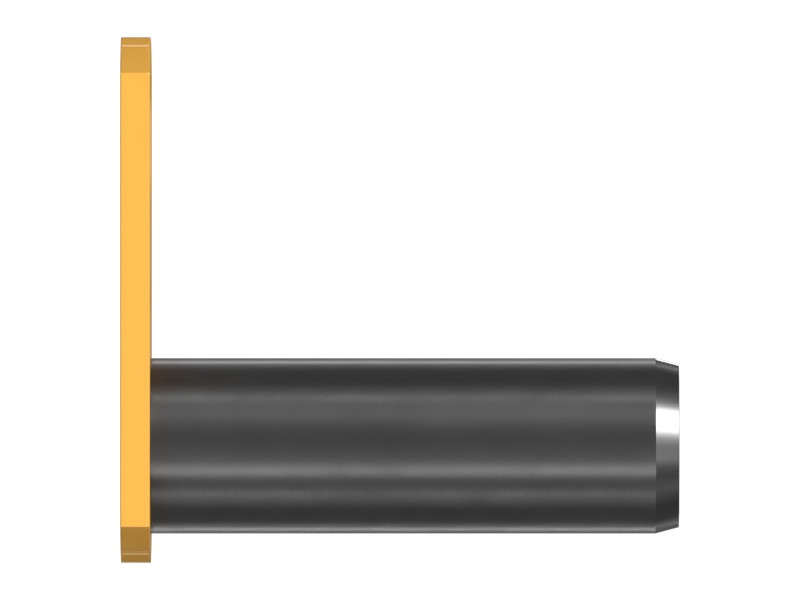

399-8543 59.95 mm Diameter Undercarriage Equalizer Bar Pin
Cat® 59.95 mm Diameter Regular Duty Undercarriage Equalizer Bar Pin
Description
The undercarriage system equalizer bar pin is used in the undercarriage system of track-type machines. Its main function is to connect the undercarriage system bar to the equalizer bar, allowing the tracks to move independently. It is usually held in place by a locking mechanism to prevent it from loosening during operation.
Features
- Ensures precise alignment between the equalizer bar and the frame.
- Built to exact specifications for durability and reliable performance
Applications
The undercarriage system equalizer bar pin is used to secure the equalizer bar to the undercarriage system.
Specifications
| Diameter | 59.95 mm (2.36 in) |
|---|---|
| Material | Steel(1E1541A) |
| Plating | No Plating |
| Internal Grease Passage Hole | Yes |
| Outside Diameter | 59.9 mm (2.358 in) |
| Puller Thread | Yes |
| Effective Length | 181 mm (7.126 in) |
| Length | 191 mm (7.52 in) |
| Weight | 4.65 kg (10.25 lb) |
Compatible Equipment
- Dozers: D6N, D6M
