Description

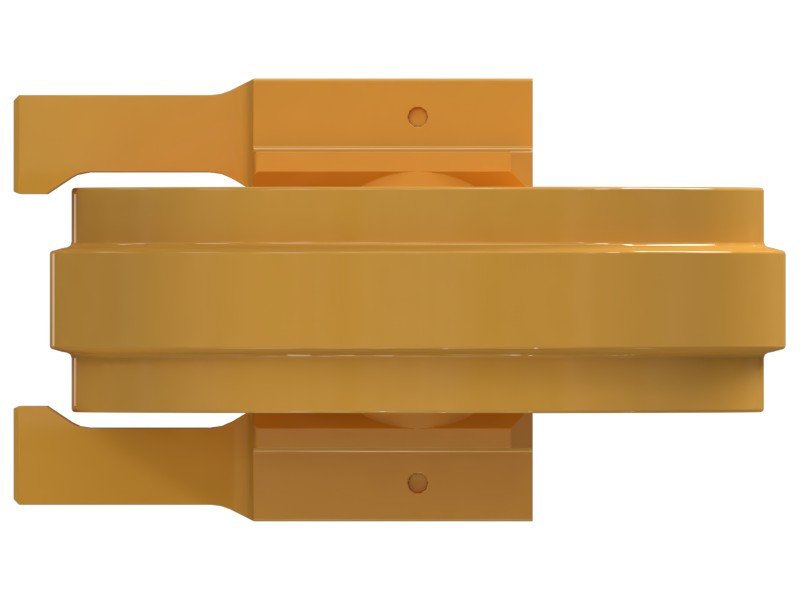

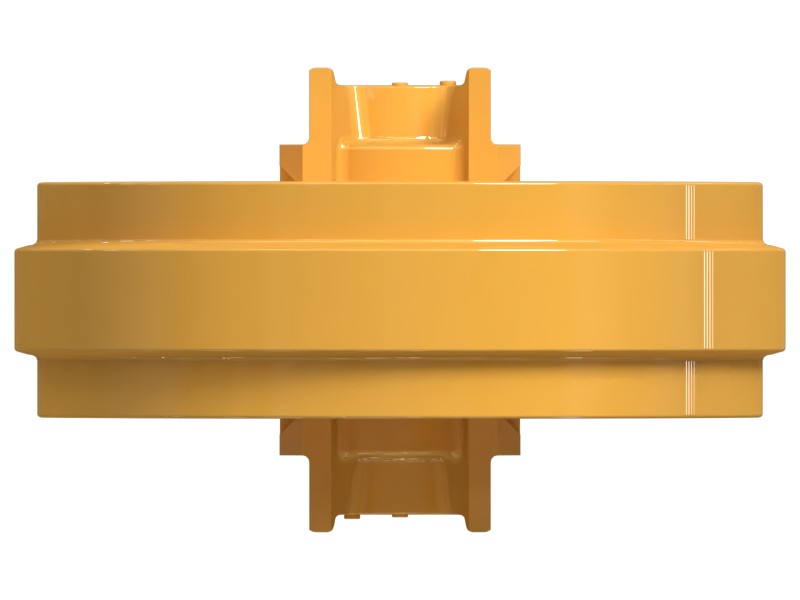

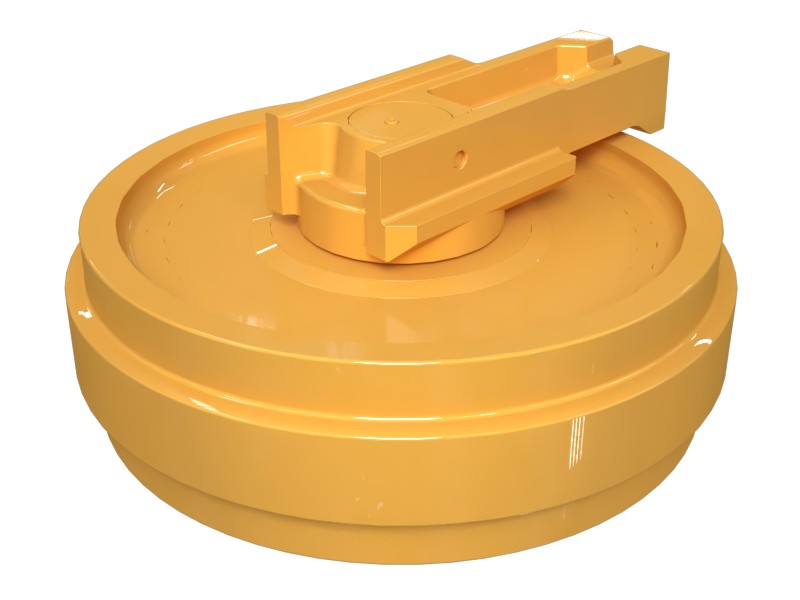

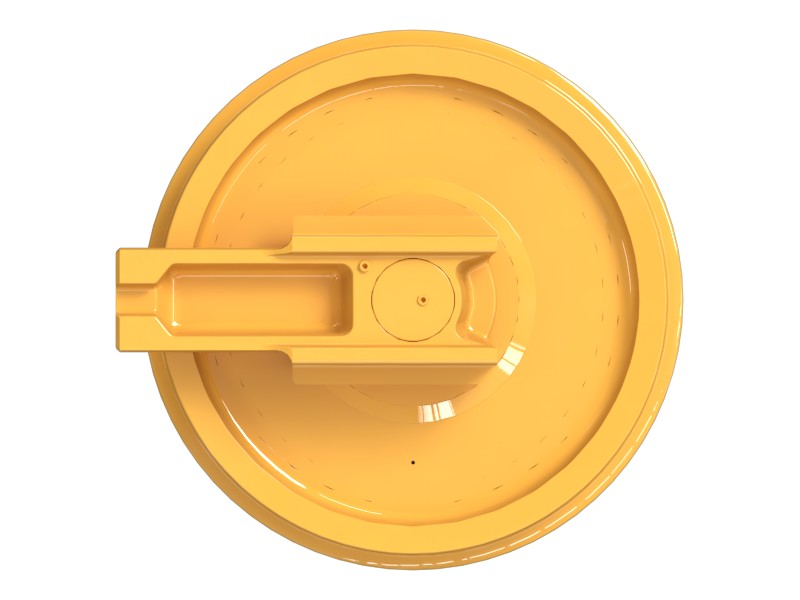

Idlers (e.g., part 622-2492) guide the track into and out of the track rollers. They intermittently support the weight of the machine and provide a way to control track slack and tension.
Features
- Center Flange Front Idler
- Heavy duty track is the ideal choice for the most severe application demands. Even in the harshest conditions, it ensures wet bushing rotation, pin and bushing retention is industry-leading, and the added link weight helps prevent cracking. Components are made of premium steel and hardened for exceptional hardness and wear life, and they work and wear as a complete system to maximize uptime and productivity.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Tread Type | Conventional Tread |
|---|---|
| Machine Side | Interchangeable |
| Undercarriage System | HD |
| Application | Standard Application |
| Material | Sealants / Adhesives Adhesive |
| Idler Rim Width | 205.5 mm (8.091 in) |
| Shaft Length | 375 mm (14.764 in) |
| Center Flange Width | 97.2 mm (3.827 in) |
| Bearing Mounting Length | 370 mm (14.567 in) |
| Center Flange Diameter | 675 mm (26.575 in) |
| Mounting Cap Bolt Thread Size | M16 |
| Shaft Protrusion Length | 109 mm (4.291 in) |
| Shaft Diameter | 105 mm (4.13 in) |
| Flange Diameter | 675 mm (26.57 in) |
| Flange Type | Center Flange |
| Shaft Outside Diameter | 104.92 mm (4.131 in) |
| Tread Diameter | 635 mm (25 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 350, 340, 352, 349, 355, 349D2 L, 349D2
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
