Description

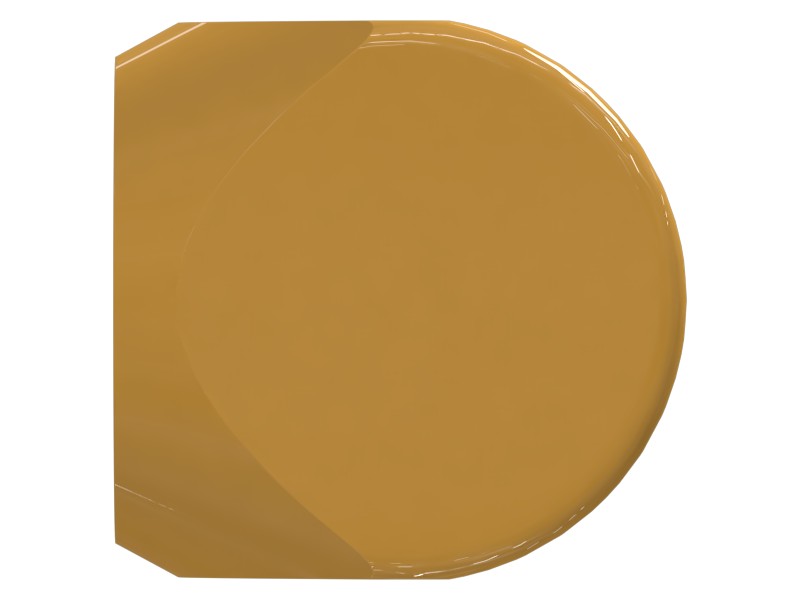

Track nuts (for example, part number 608-7785) are used with track bolts to attach track shoes to track links. Track nuts are fully hardened and tempered to meet or exceed bolt strength. Track nut core hardness is Rc30 minimum. Track nuts are installed in the nut seats in the strap area of the link. The pull groove holds the nut in place so that the bolt can be removed from the track shoe.
Features
- Inch track nut
- Coating: Zinc Phosphate and Oil
- Thread Size: 1-14
- Drive: 1.50 in (38 mm), Square (Mailbox)
- Height: 1.54 in (39 mm)
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Drive Chain | 38 mm (1.50 in) |
| Thread Size | 1.000 mm (1-14 in) |
| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
| Thread Size (Diameter × Pitch) | 1.000×14 mm |
| Coating | Zinc Phosphate and Oil |
| Thickness | 39 mm (1.535 in) |
| Thread | RH Standard |
| Height | 1.54 in |
| Nut Model | Not Specified |
| Thread Size (in – TPI) | 1-14 in |
Compatible Equipment
- Dozers: D9T, D9, D9R
