Description

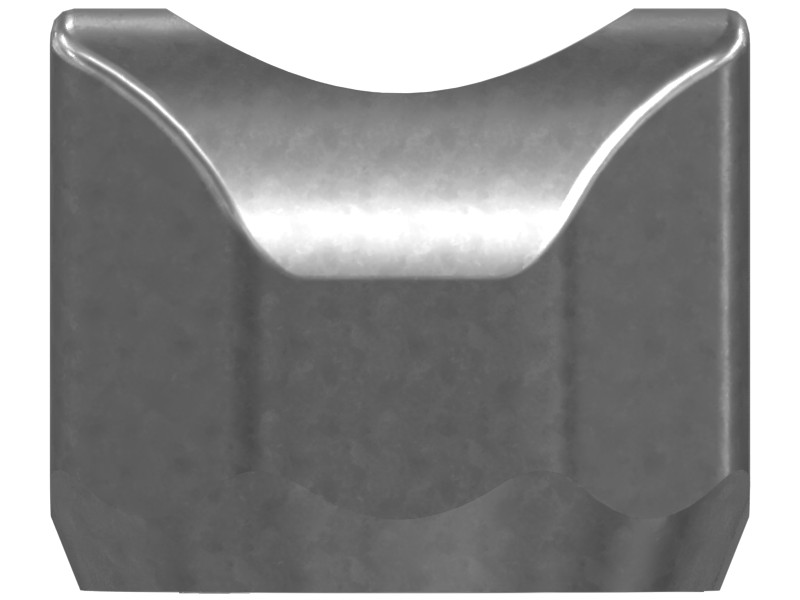

Track nuts (for example, part number 476-2817) are used with track bolts to attach track shoes to track links. Track nuts are fully hardened and tempered to meet or exceed bolt strength. Track nut core hardness is Rc30 minimum. Track nuts are installed in the nut seats in the strap area of the link. The pull groove holds the nut in place so that the bolt can be removed from the track shoe.
Features
- Metric track nut
- Coating: Zinc Phosphate and Oil
- Thread Size: M39x3
- Drive: 60 mm, Square (Mailbox)
- Height: 50 mm
- Furnace quenched and tempered
- Self-locking
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size (Diameter × Pitch) | M39x3 mm |
| Class or Grade | ISO 898-2 Class 12 |
| Coating | Zinc Phosphate and Oil |
| Thickness | 50 mm (1.969 in) |
| Drive Chain | 60 mm (2.362 in) |
| Height | 50 mm |
| Thread | RH Fine |
| Nut Model | Track Nut |
| Material | Steel |
| Thread Size (in – TPI) | M39-3 in |
| Thread Size | M39X3 mm (0 in) |
Compatible Equipment
- Excavators: 6020B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
