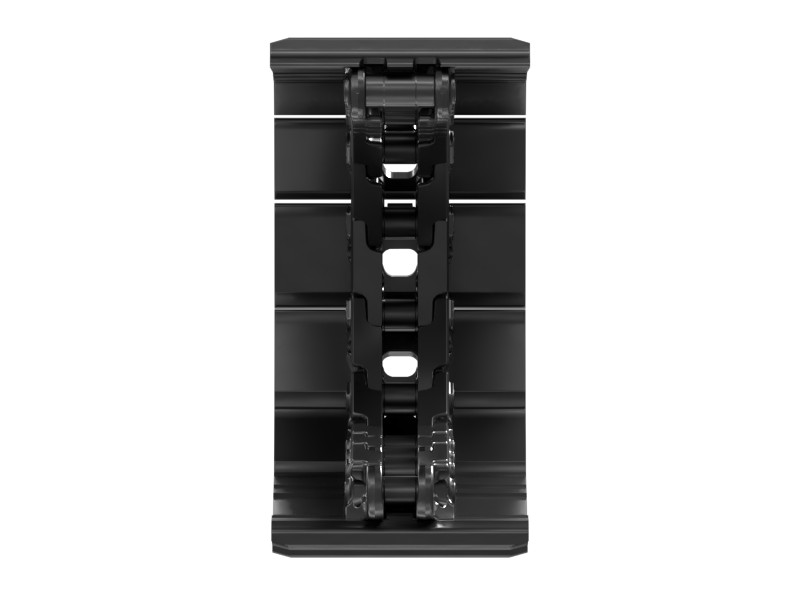

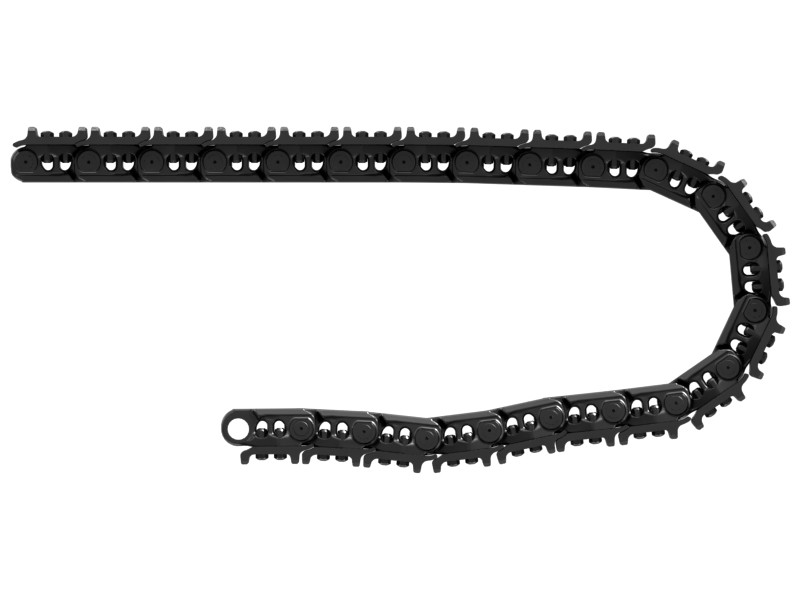

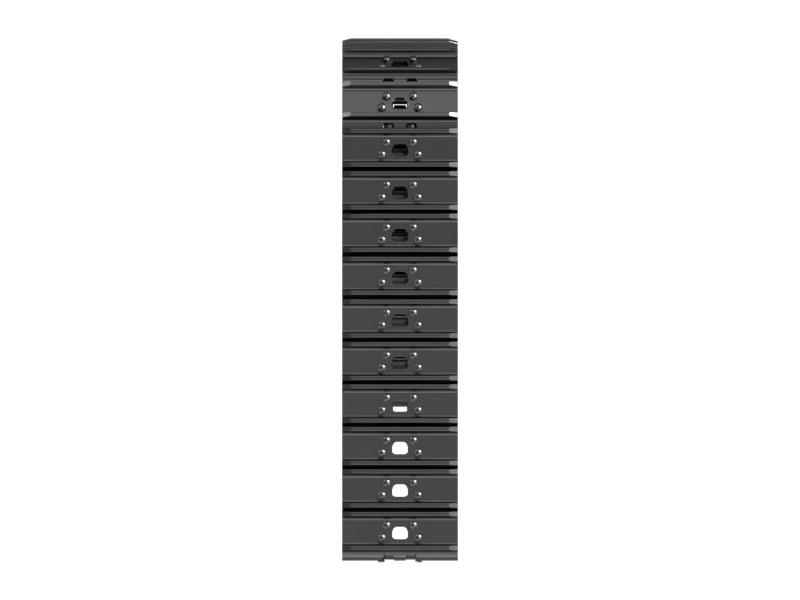

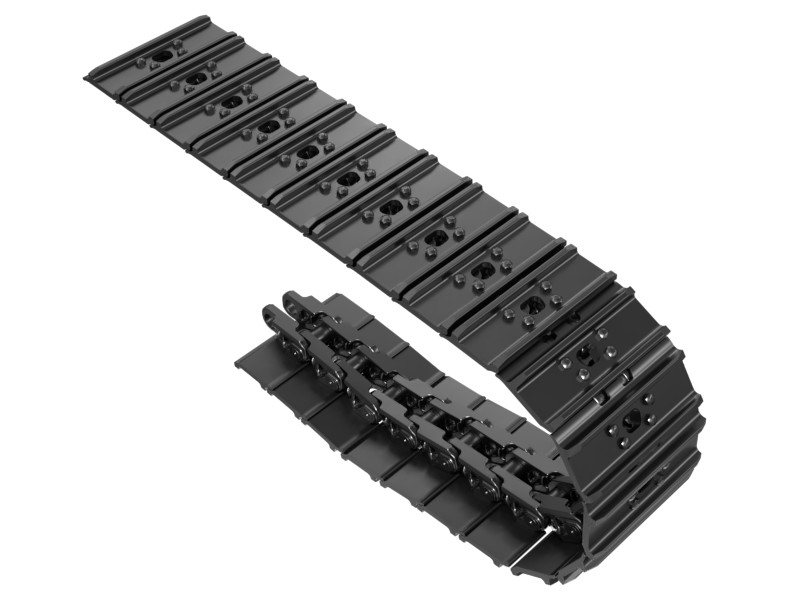

Skip to content607-3694 Double Grouser Grease Lubricated Track
Description
Specifications
| Seal and Lubrication Type | SALT |
|---|
| Track Shoe Type | Not Applicable |
|---|
| Wear Sensor | None |
|---|
| Grease Lubricated Track Type | GLT |
|---|
| Track Bolt Thread | M39 |
|---|
| Offset | Not Applicable |
|---|
| Number of Grousers | Two |
|---|
| Track Shoe Width | 950 mm (37.402 in) |
|---|
| Track Reinforcement System | Not Applicable |
|---|
| Shear | Yes |
|---|
| Master Link Type | Retaining Ring |
|---|
| Abrasion Resistant Material | None ARM |
|---|
| Main Bolt Thread | M39 |
|---|
| Undercarriage System | HD |
|---|
| Number of Track Links | 22 |
|---|
| Hole Type | Trapezoid |
|---|
| Rotating Bushing Track | No RBT |
|---|
| Track Shoe Hole Type | Trapezoidal |
|---|
| Pin Retention System | PPR2 |
|---|
| Track Pitch | 350 mm (13.78 in) |
|---|
| Bushing Inside Diameter | 125 mm (4.921 in) |
|---|
| Number of Links | 22 |
|---|
| Link Inside Spacing at Sprocket | 119 mm (4.685 in) |
|---|
| Weight | 5618 kg (1238 lb) |
|---|
