Description

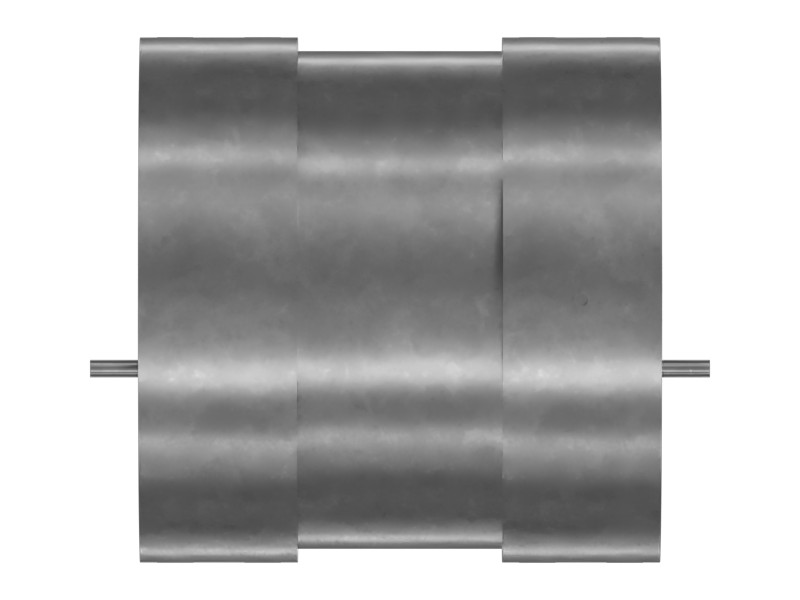

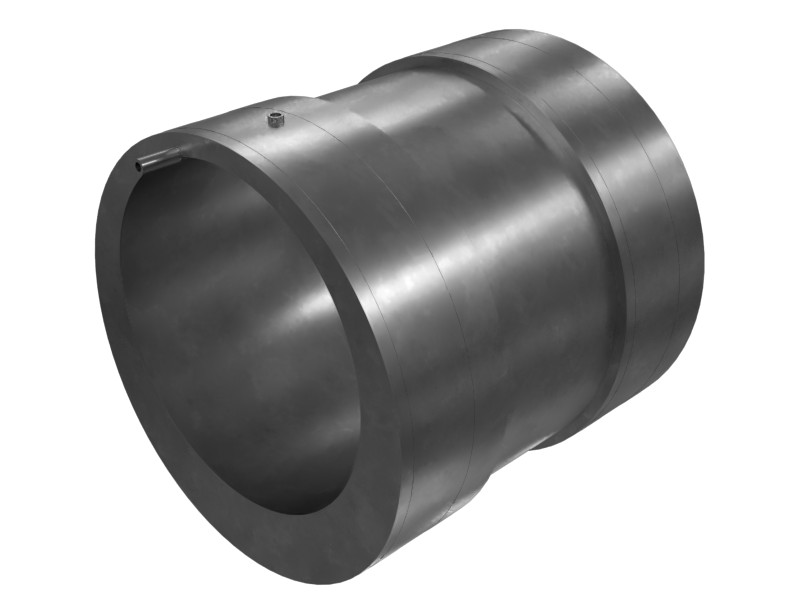

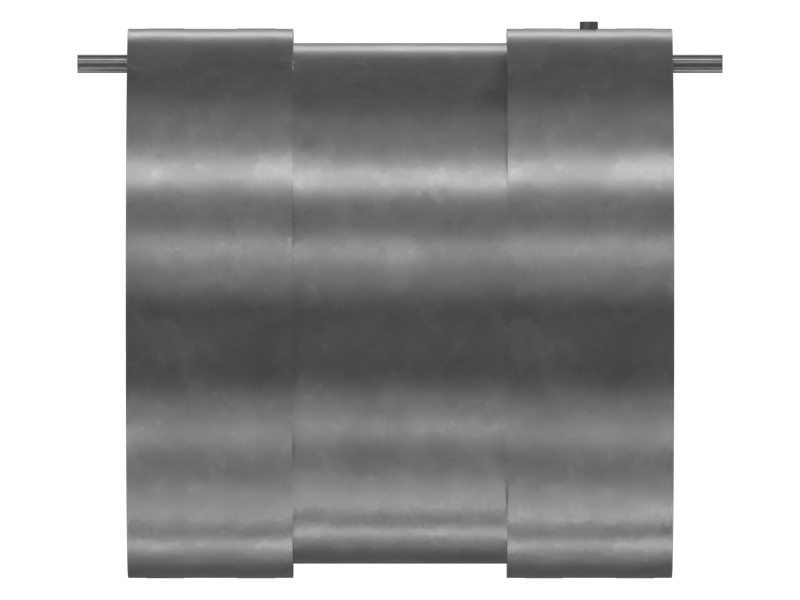

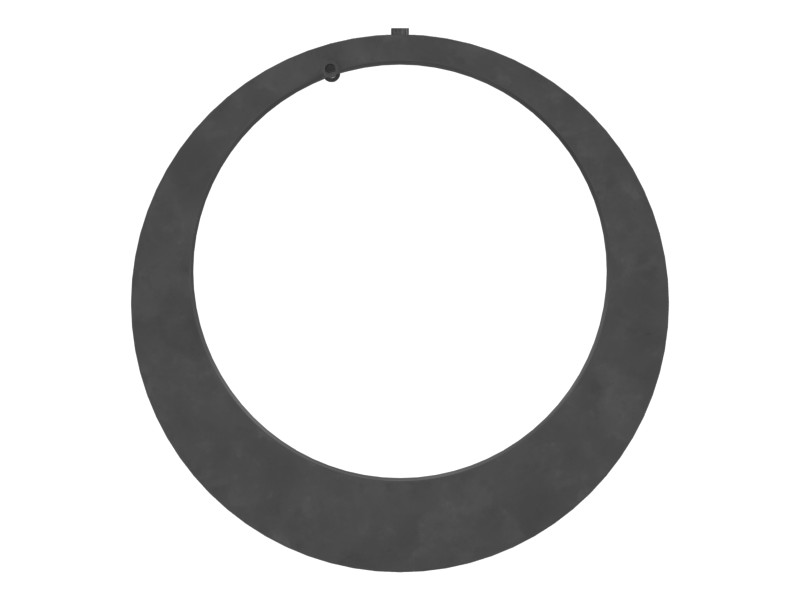

The Cat air starting motor cylinder is the housing for the air vane rotor in the air starting motor.
Features
- OEM direct replacement part
- Cylinder with end plate dowel pins (2), cylinder dowel pin, and cylinder O-ring
Applications
Air starting motor for Cat engines.
Specifications
| Inside Diameter | 120.6 mm (4.7 in) |
|---|---|
| Length | 152.5 mm (6 in) |
| Material Description | Cast Iron |
| Outside Diameter | 154 mm (6 in) |
| Material | Gray (Flake) Iron |
Compatible Equipment
- Motor Graders: 3606
- Generator Sets: 3512B, 3516C, G3516
- Engines: C32, C27
- Excavators: 3512C, 3516B, 3508B, 3516E
- Off-Highway Trucks: 785D, 777D, 789, 793D, 785, 793
