Description

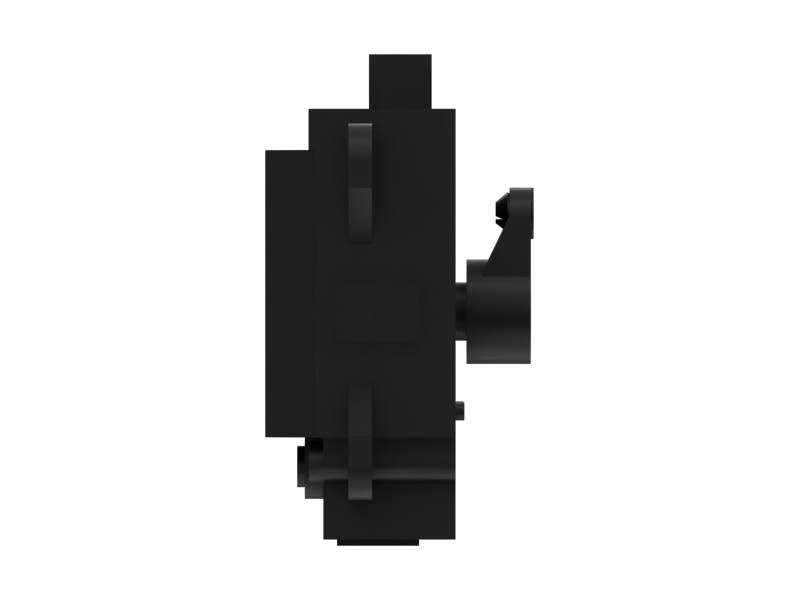

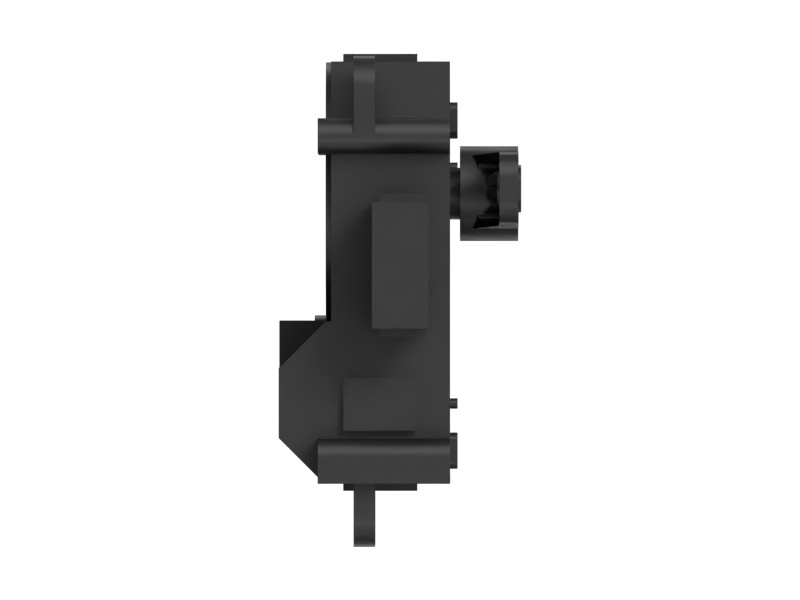

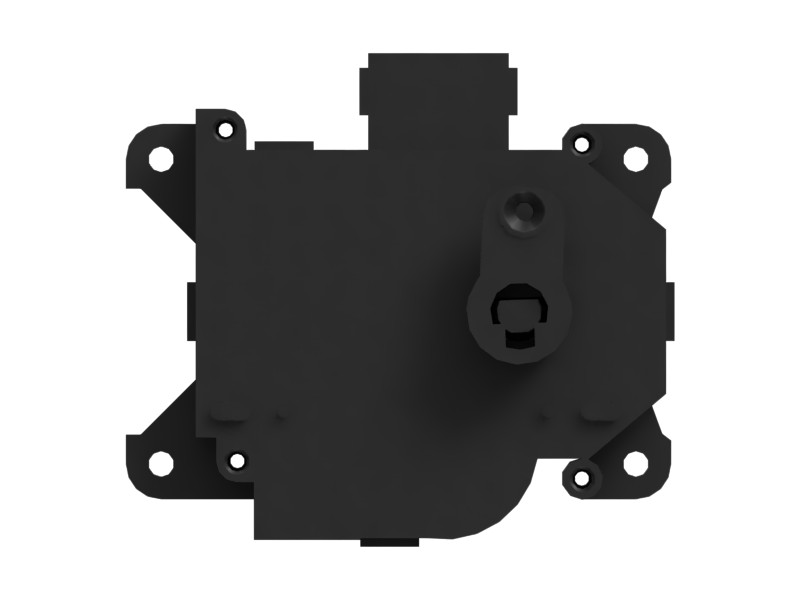

The motor group is used to control air conditioning temperature, mode, and air source.
Features
- Air Conditioning Servo Motor
- Temperature rating: 20°C (68°F)
- Rated Voltage: 24 V
- Rated Load: 0.15 N.m
- Speed: 4.2 RPM
- Rated Current: 0.03 A
- Operating Voltage Range: 20-32 V
- Operating Temperature Range: -30°C to 60°C (-22°F to 140°F)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 93 mm (3.66 in) |
|---|---|
| Overall Width | 82.5 mm (3.25 in) |
| Overall Height | 45.4 mm (1.79 in) |
Compatible Equipment
- Generator Sets: 3512B
- Wheel Excavators: M320, M315D2, M315D, M320D2, M322D, M313D, M317D2
- Mini Excavators: 307D
- Excavators: 330D L, 336D2 L, 312D2 GC, 325D L, 315D L, 320D L, 313D2 GC, 330D2, 324D L, 325D, 323D L, 324D, 336D L, 330D, 312D L, 329D L, 318D2, 336D2 GC, 318D2 L, 312D2 L, 320D3, 323D2 L, 320D2 L, 320D GC, 313D, 312D, 313D2, 328D LCR, 323D, 326D L, 320D FM, 311D LRR, 312D2, 320D2 GC, M325D L MH, 330D2 L, 318D L, 323D2, 336D2 XE, 320D RR, 345C, 345D L, 345C L, 365C, 340D2 L, 385C, 313D2-GC, 349D L, 385C FS, 365C L, 385C L, 390D, 340D L, 345D, 320D, 320D2, 336D2, 336D, 326D2 L, 326D2, 329D2, 329D, 329D2 L, 349D, 349D2, 349D2 L, 374D L, 390D L
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307D, 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 315D L, 318D L, 318D2, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 3512B, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, M313D, M315D, M315D2, M317D2, M320, M320D2, M322D, M325D L MH |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Skid Steer Loaders, Generator Sets |
| Part Source | Genuine OEM |
