Description

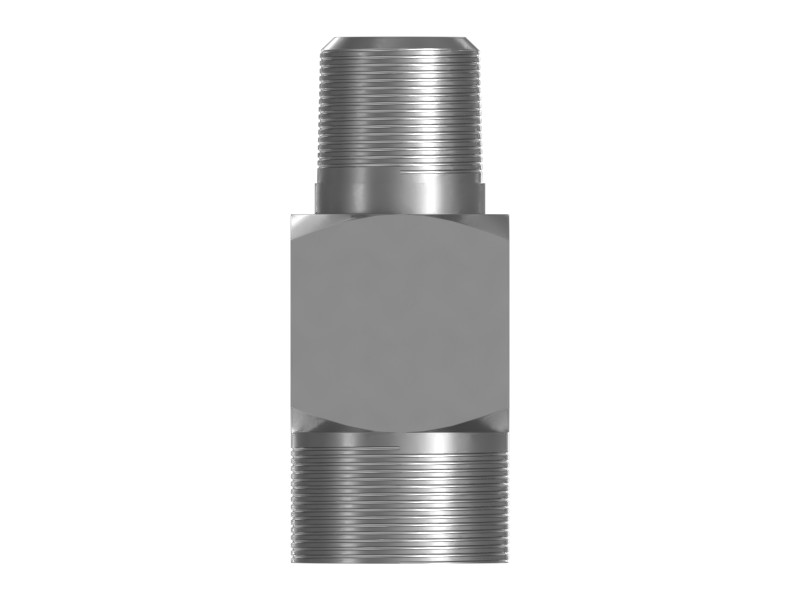

An adapter tee in a brake system is a fitting used to connect two or more brake lines. An oil-carrying adapter tee is used to connect the fuel tank, fuel line, and fuel gauge. It is an essential component that enables the pilot device to monitor the fuel level and ensure the engine has a constant fuel supply. Each Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability, and corrosion protection, ensuring the machine is durable and operates properly.
Features
- Ensures durability and corrosion resistance.
- Resists extreme temperatures and withstands high pressure.
Applications
Adapter tees can be used to split a single brake line into two or more lines.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material Description | Plated Steel |
| Material | Alloy Copper |
| Overall Length | 68.5 mm (2.7 in) |
Compatible Equipment
- Generator Sets: 3406B, 3406C, 3512B
- Track Loaders: 824C
- Compactors: CS12, CP56B, CS68B, CS56B, CS74B, CS78B, CB-66B, CB16, CB-64B, CS11, CB13, CB15, CS-54B
- Engines: C7, C18
- Excavators: 3126, 621G, 637G, 657G, 3508B, 3516B
- Skid Steer Loaders: 3126B
- Motor Graders: 12K, 140K, 160K, 3606
- Wheel Excavators: MD6310, MD6250, MD6200
- Wheel Loaders: 988G, 988H, 990H
- Off-Highway Trucks: 793F, 7495, 789, 773, 789D, 777D, 793D, 785, 793, 777E, 773D, 771D, 775G
Additional information
| Machine Model | 12K, 140K, 160K, 3126, 3126B, 3406B, 3406C, 3508B, 3512B, 3516B, 3606, 621G, 637G, 657G, 7495, 771D, 773, 773D, 775G, 777D, 777E, 785, 789, 789D, 793, 793D, 793F, 824C, 988G, 988H, 990H, C18, C7, CB-64B, CB-66B, CB13, CB15, CB16, CP56B, CS-54B, CS11, CS12, CS56B, CS68B, CS74B, CS78B, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
