Description
evenly distributes the load and prevents surface damage during the process Description:
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance. This is information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to strict specifications for durability, reliability and efficiency
High • Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, together with the associated hardened washers and nuts, form a high-performance system that produces sustained high clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts and their associated washers and nuts form a high-performance system that provides consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications

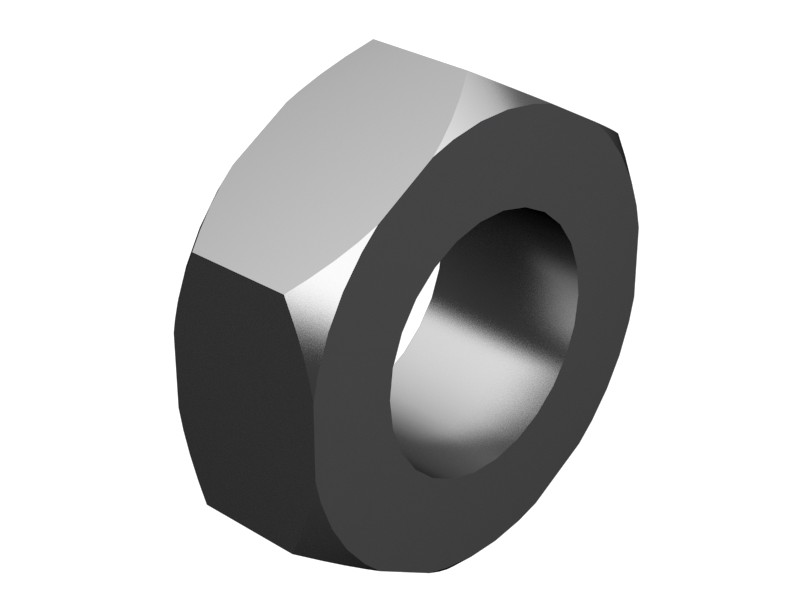

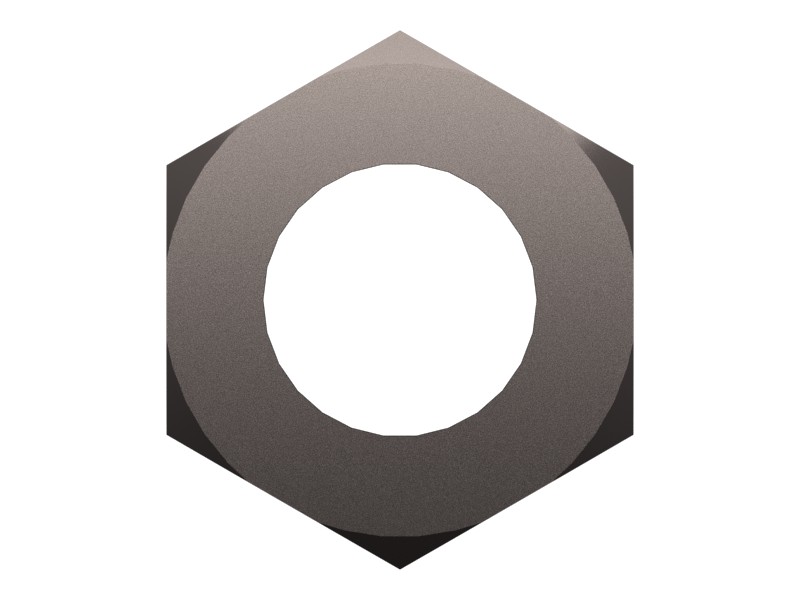

| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 3/8×24 mm |
| Thread Direction | RH |
| Thread Size | 0.375 mm (0.015 in) |
| Hole Thread Pitch | 24 |
| Drive Chain | 14.29 mm (9/16 in) |
| Thickness | 5.56 mm (0.22 in) |
| Material | Carbon Steel |
| Height | 0.22 in |
| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 3/8-24 in |
| Material Description | Hardness More Than 20% Higher Than SAE J995 Grade 8 |
| Coating | Zinc Plated |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, C7.1DE200E, C4.4, G3516, 3406B, 3406C, C3.3DE33E0, C7.1, C4.4DE88E0, C3.3DE50E0
- Track Loaders: 816F, 824C, 963, 992, 953
- Cold Planers: TH360B
- Compactors: 814, 816, 815, CB-534D, CB-434D, CS-533C, CS-563E, CB-564D, CS-533E
- Excavators: 320D2, 637E, 3512C, 3516E, 3516B, 3508B, 416F2, 320D2 L, 416E, 432, 428F, 120 GC, 330 L, 312D2, 637G, 318D2 L, 320D2 GC, 312D2 GC, 312D2 L, 434F2, 350 L, 330B, 315C, 313D2
- Asphalt Pavers: AD30
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 16, 140G, 120, 140 GC, 12K, 140K, 160K, 120H, 12H, 140H, 16H
- Wheel Excavators: IT14G, M315
- Dozers: D10N, D11N, D10, D4E, D7G, D7H, D5H, D6R, D7G2, D8L, D6G2 LGP, D7R, D9L, D6G2 XL, D9N, D6G, D4
- Mini Excavators: 307
- Wheel Loaders: 950, 980, 910, 972G, 834, 992D, 988F, 966F, 992C, R1300G, 924GZ, 836, 928G
- Off-Highway Trucks: 773D, 773E, 773, 785D, 789D, 789, 777D, 771D, 777E, 794 AC, 777, 785, 793D, 793F, 796 AC, 798 AC, 793
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 16, 160K, 16H, 307, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 LGP, 315C, 318D2 L, 320D2, 320D2 GC, 320D2 L, 330 L, 330B, 3406B, 3406C, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 416E, 416F2, 428F, 432, 434F2, 637E, 637G, 771D, 773, 773D, 773E, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 798 AC, 814, 815, 816, 816F, 824C, 834, 836, 910, 924GZ, 928G, 950, 953, 963, 966F, 972G, 980, 988F, 992, 992C, 992D, AD30, C3.3DE33E0, C3.3DE50E0, C4.4, C4.4DE88E0, C7.1, C7.1DE200E, CB-434D, CB-534D, CB-564D, CS-533C, CS-533E, CS-563E, D10, D10N, D11N, D4, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R, D8L, D9L, D9N, G3516, IT14G, M315, R1300G, TH360B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
