Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size (Diameter × Pitch) | 1/2×20 mm |
|---|---|
| Class or Grade | SAE J995 Grade 8 |
| Drive Chain | 19.05 mm (0.75 in) |
| Thread Direction | RH |
| Coating | Zinc Plated |
| Height | 7.95 mm (0.31 in) |
| Material Description | Steel |
| Hex Size | 19.05 mm (0.75 in) |
| Thread Size | 0.500 mm (1/2-20 in) |
| Thickness | 7.95 mm (0.313 in) |
| Thread | RH Fine |

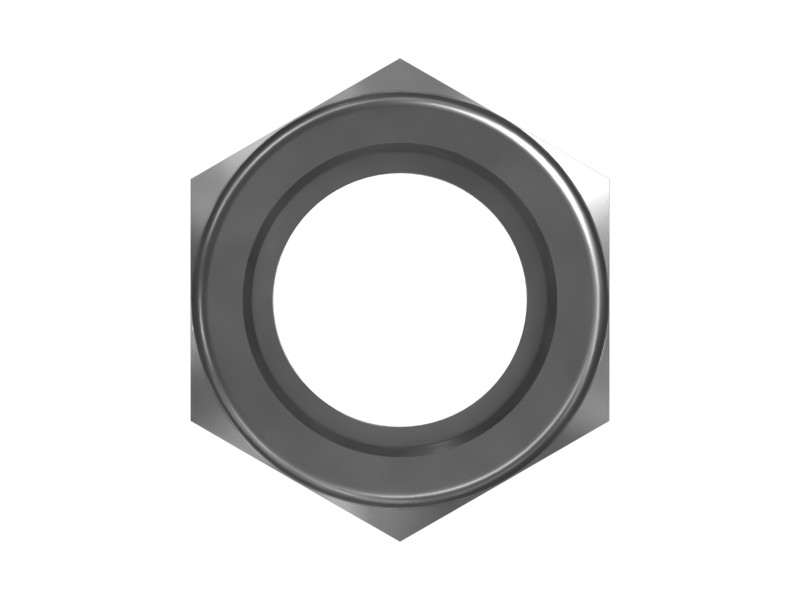

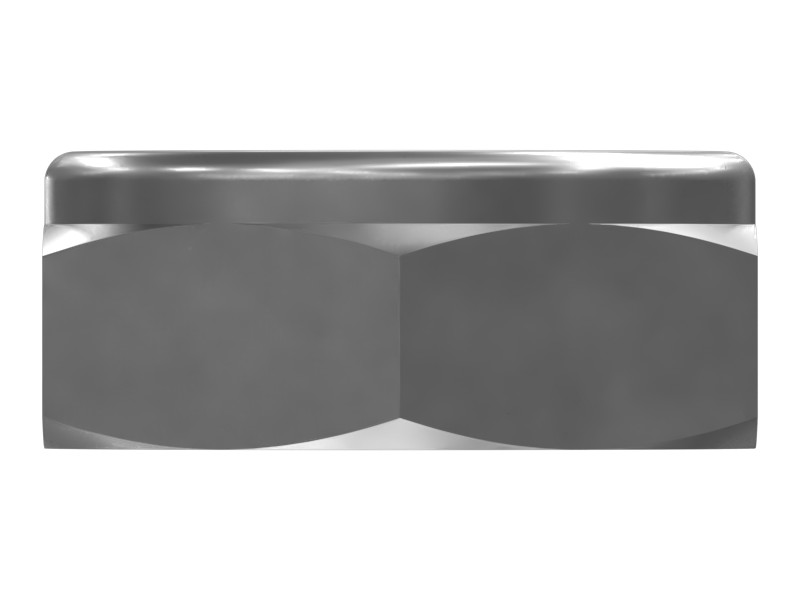

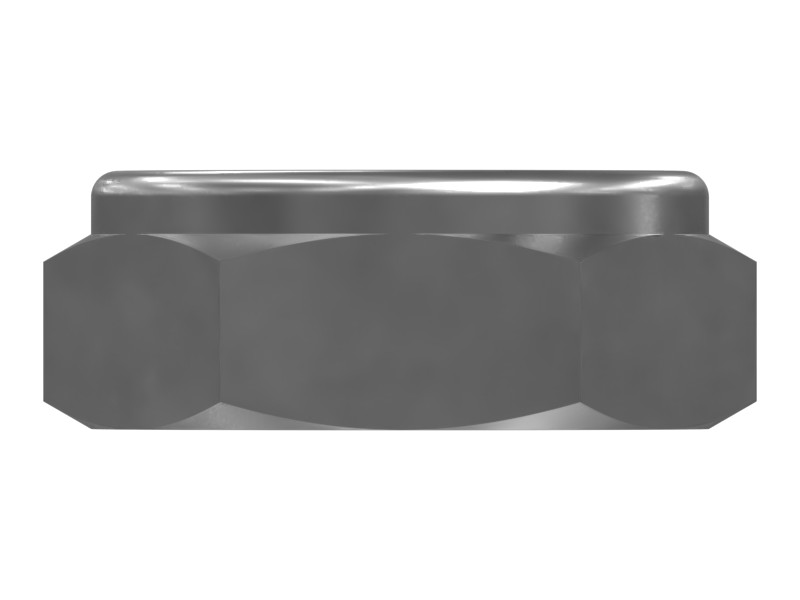

| Nut Model | Hex Head Self-Locking Nut |
| Thread Size (in – TPI) | 1/2-20 in |
Compatible Equipment
- Generator Sets: 3512B
- Track Loaders: 990K
- Cold Planers: PL87, PL83
- Engines: C18
- Excavators: 320D2, 320D, 326D2 L, 329D, 329D2 L, 326D2, 336D2, 329D2, 308D, 336D, 349D2 L, 349D, 349D2, 390F L, 330D L, 349F L, 345D L, 349D L, 345C, 374F L, 345D, 349E L VG, 349E L, 320C, 318D2, 315F LCR, 320D RR, 336E L, 336D2 L, 325C, 313F LGC, 336F LN, 313D2 GC, 336F L, 323D2 L, 320D L, 330C L, 325D L, 328D LCR, 315D L, 330D, 312E L, 320D2 L, 336E LH, 329E L, 314D CR, 312E, 324D L, 323D L, 336F L XE, 329D L, 313F L, 312D L, 336D L, 314C, 312D2, 311D LRR, 313D2-GC, 313D2, 315C, 312F, 336F, 312D, 314D LCR, 320E, 637E, 312C L, 312C, 312D2 GC, 330D2 L, 318D2 L, 325D, 324D, 320C L, 323D, 312D2 L, 320D FM, 335F LCR, 336D2 XE, 120 GC, 311C, 330D2, 352F, 349E, 345C L, 390F
- Skid Steer Loaders: 24, 236, 226B
- Motor Graders: 18, 16, 16M, 12K, 120, 12H, 140H, 16M3, 120H, 140G, 140K, 14M, 160K, 14, 16H, 140 GC
- Dozers: D6R, D7, D7R, D8, D11, D10, D8T, D11R, D6T, D6R II, D5N, D4G, D6N, D6M, D6T LGP, D6R III, D9T, D5M, D7R II, D3G, D7E, D5G, D6R XL, D8R, D9, D11T, D10R, D10T, D6R LGP
- Mini Excavators: 307D, 307C
- Wheel Loaders: 928G, 938K, 924GZ, 926M, 988K, 924K, 928HZ, 938M, R1700G, 924HZ, 966H, 990H, R1600H, 988H, R1300G, R3000H
- Off-Highway Trucks: 772G, 793F, 789D, 797F, 777D, 730, 785D, 773E, 771D, 735, 725, 740 GC, 775G, 725C2, 740B, 793D, 770G, 785, 777, 777E, 798 AC, 794 AC, 793, 773D, 796 AC, 745, 740, 745C, 789, 773
