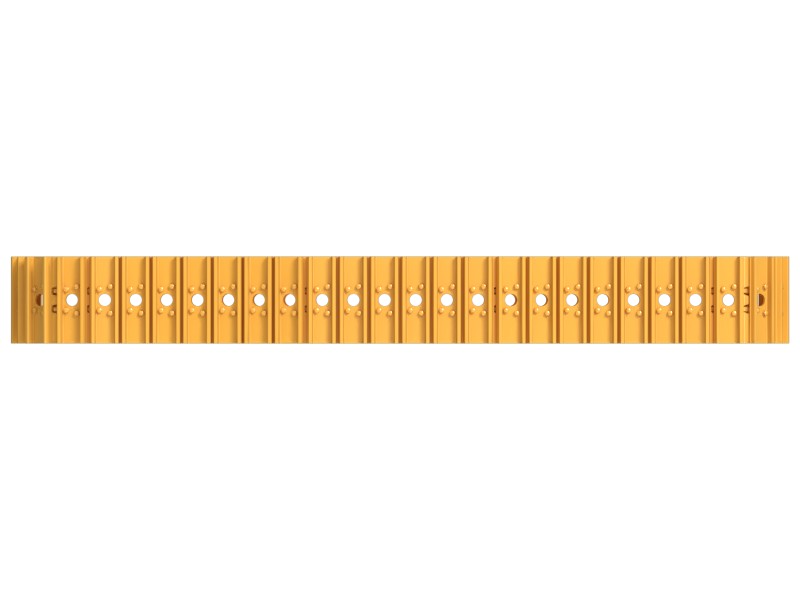

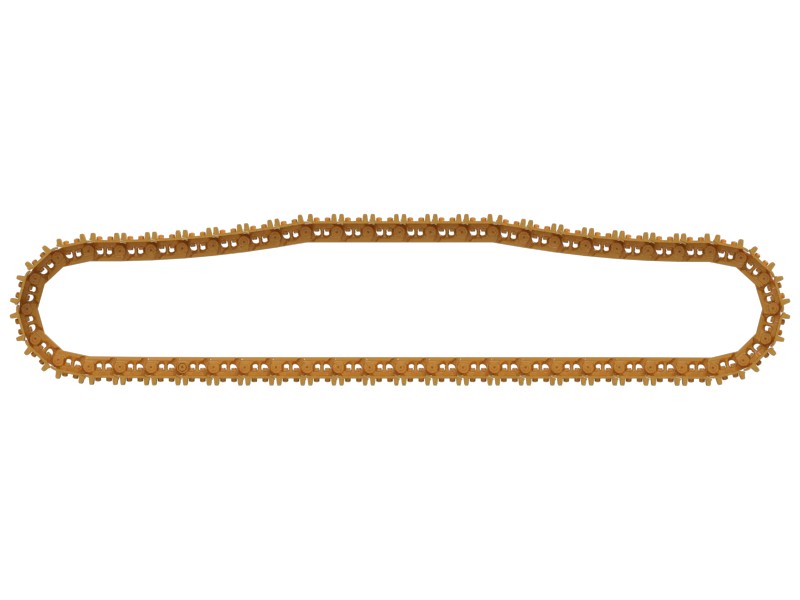

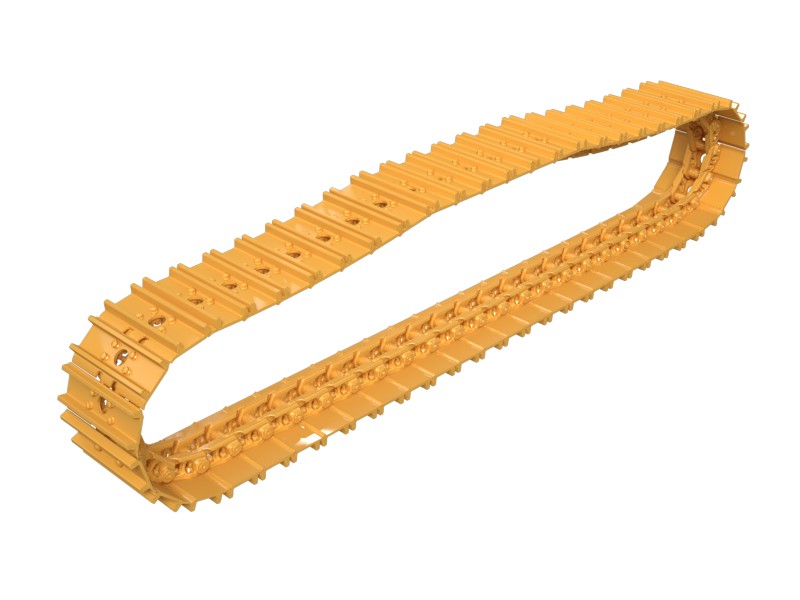

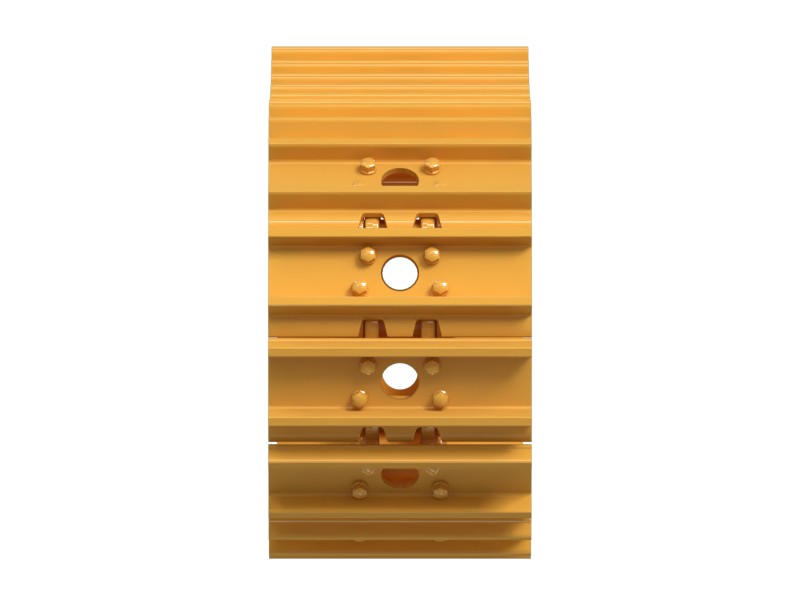

598-2762 600 DG Double Grouser Track Shoe
Cat® Double Grouser Track Shoes improve traction and stability for heavy equipment undercarriage systems.
Description
A track assembly is formed when track shoes and fasteners secure the track shoes to the link group.
Features
General duty tracks can provide an affordable option for machines nearing retirement or with low utilization. Their lower initial price allows them to be run until failure. All Cat® undercarriage is backed by the Undercarriage System Guarantee. Manufactured by Caterpillar, they are hardened and quality tested to meet the productivity and performance demands of the work site.
Triple grouser track shoes offer less penetration and traction than single grouser track shoes, but better swing capability. Triple grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.
Specifications
| Rotating Bushing Track | No RBT |
|---|---|
| Pin Retention System | PPR3 |
| Number of Links | 52 |
| Track Pitch | 215.9 mm (8.5 in) |
| Link Inside Spacing at Sprocket | 104.02 mm (4.095 in) |
| Bushing Inside Diameter | 71.46 mm (2.813 in) |
| Track Shoe Hole Type | Round |
| Hole Type | Round |
| Number of Track Links | 52 |
| Undercarriage System | HD |
| Track Reinforcement System | Not Applicable |
| Main Bolt Thread | M24 |
| Number of Grousers | Double |
| Grease Lubricated Track Type | GLT |
| Master Link Type | Press Fit Master |
| Seal and Lubrication Type | Sealed |
| Track Bolt Thread | M24 |
| Abrasion Resistant Material | 0 ARM |
| Track Shoe Width | 600 mm (23.622 in) |
| Track Shoe Type | Multi Grouser |
| Offset | Not Applicable |
| Shear | No |
| Wear Sensor | No |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 350
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
