Description

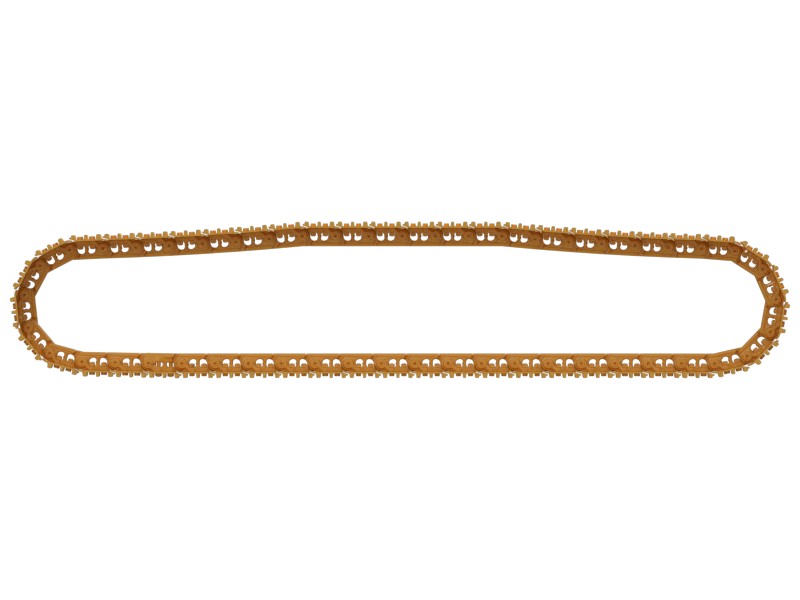

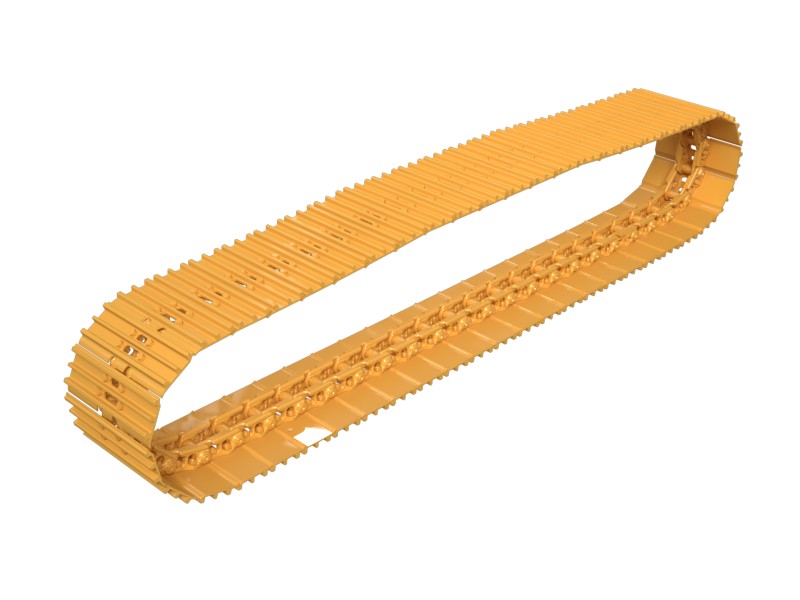

The undercarriage system track is a key component of a track-type undercarriage system unit, providing traction, stability, and support for movement. It consists of a series of interlocking metal plates formed by continuous track shoes that wrap around the undercarriage system drive sprocket.
Features
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Equipped with bolted connections with a thread size of M20.
- Can handle the high stresses and impacts generated during operation.
Applications
The undercarriage system track helps maintain stability and control during movement.
Specifications
| Undercarriage System | GD |
|---|---|
| Number of Track Links | 49 |
| Hole Type | Slotted |
| Bushing Inside Diameter | 58.72 mm (2.312 in) |
| Number of Links | 49 |
| Track Shoe Hole Type | Slotted |
| Track Pitch | 190 mm (7.48 in) |
| Pin Retention System | Press Fit |
| Link Inside Spacing at Sprocket | 82.57 mm (3.251 in) |
| Rotating Bushing Track | No RBT |
| Wear Sensor | No |
| Grease Lubricated Track Type | GLT |
| Number of Grousers | Triple |
| Offset | Not Applicable |
| Shear | No |
| Track Shoe Type | Not Applicable |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | Not Applicable |
| Master Link Type | Clamp Master |
| Main Bolt Thread | M20 |
| Track Bolt Thread | M20 |
| Seal and Lubrication Type | Sealed |
| Track Shoe Width | 600 mm (23.622 in) |
Compatible Equipment
- Excavators: 320 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
