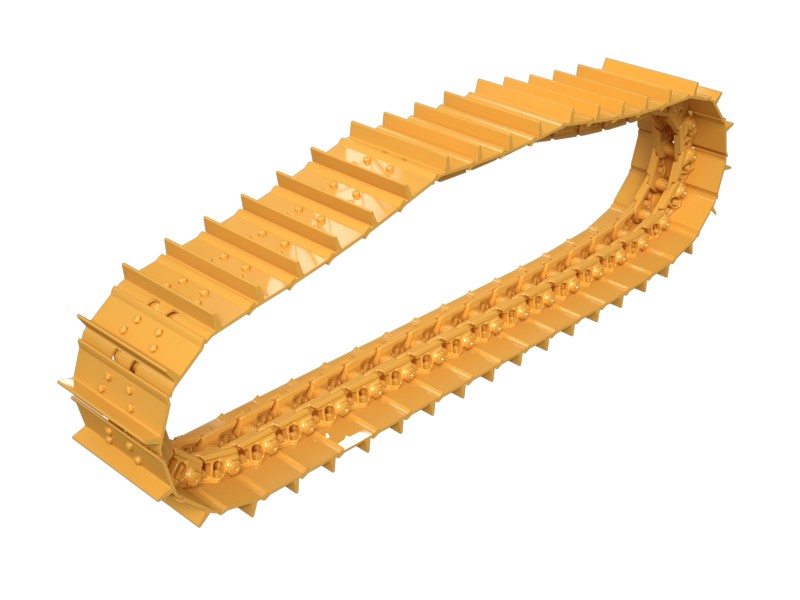

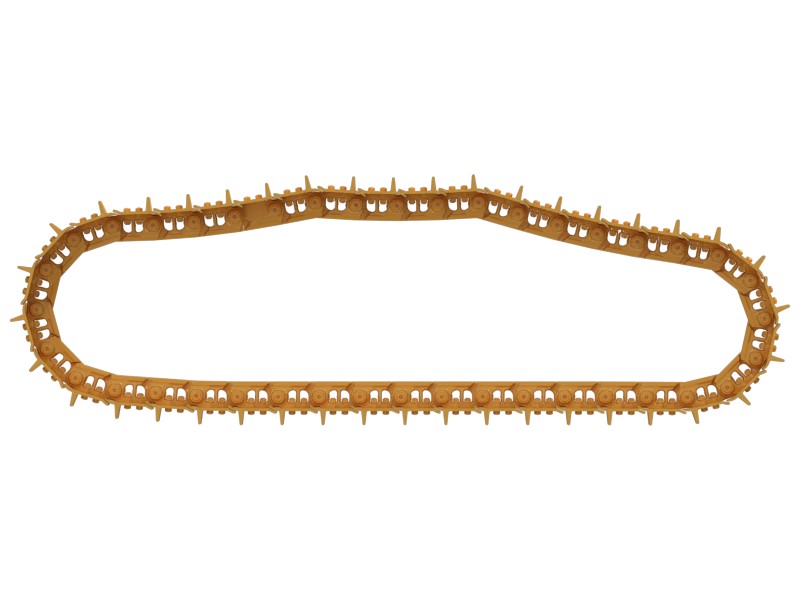

422-1129 Track Assembly
Cat® General Duty Track Assembly (40 Sections) Moderate Duty Track Shoe – 24" (610 mm)
Description
Cat® standard-duty parts offer a competitive initial purchase price and an advantageous service life compared with industry standards for the target application.
Attributes
Standard-duty parts are backed by the standard Cat® parts warranty.
Standard-duty parts meet industry expectations for durability and technology.
Applications
Standard-duty parts are designed for moderate and light applications and lower-utilization applications.
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Track Shoe Hole Type | Not Applicable |
|---|---|
| Rotating Bushing Track | No RBT |
| Pin Retention System | Press Fit |
| Number of Links | 40 |
| Bushing Inside Diameter | 79.16 mm (3.117 in) |
| Link Inside Spacing at Sprocket | 97.2 mm (3.827 in) |
| Undercarriage System | HD |
| Hole Type | Not Applicable |
| Track Shoe Width | 610 mm (24 in) |
| Wear Sensor | No |
| Number of Track Links | 40 |
| Bolt Size | 7/8 mm (7/8 in) |
| Track Pitch | 215.9 mm (8.5 in) |
| Track Shoe Type | Moderate Duty, Single Grouser |
| Shear | No |
| Offset | Not Applicable |
| Main Bolt Thread | 0.875 |
| Seal and Lubrication Type | SALT |
| Grease Lubricated Track Type | Not Applicable |
| Abrasion Resistant Material | 0 ARM |
| Number of Grousers | Single |
| Track Reinforcement System | Not Applicable |
| Track Bolt Thread | 0.875 |
| Master Link Type | 5 Tooth Master |
Compatible Equipment
- Dozers: D7R II
