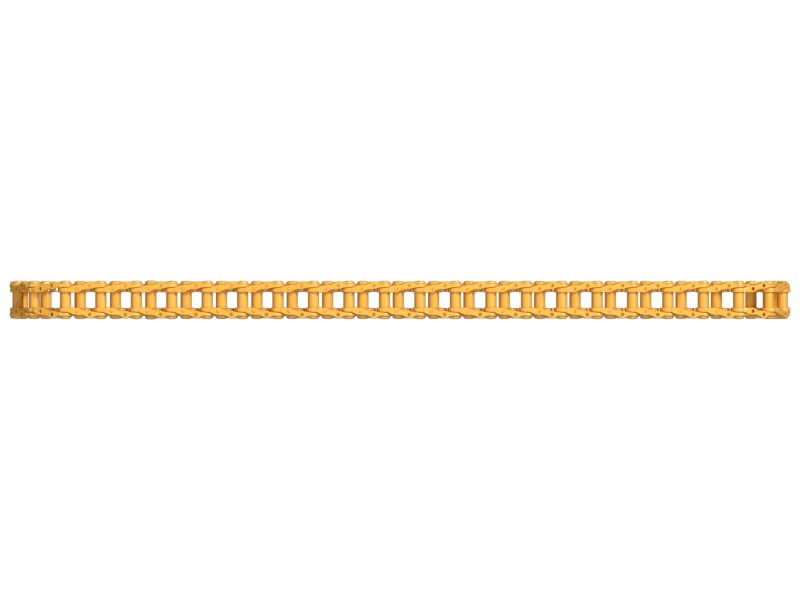

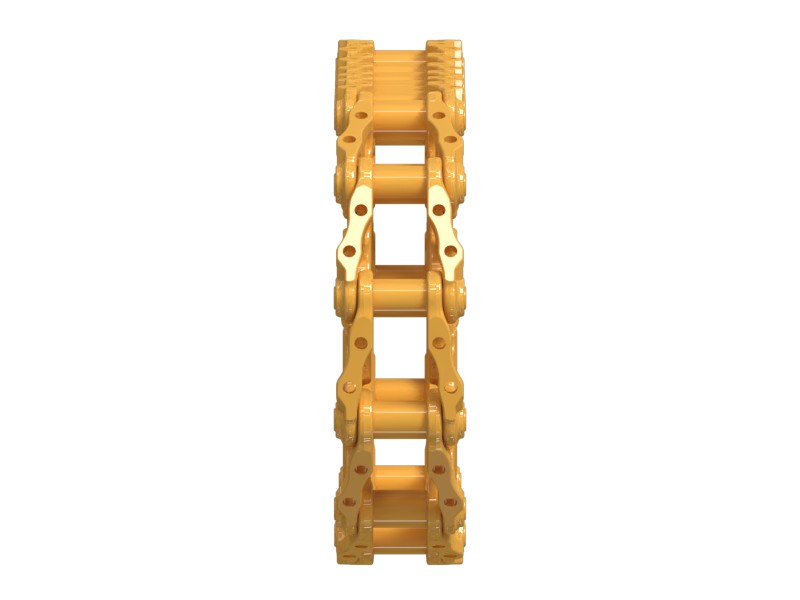

Description
The link assembly is driven by the sprocket and final drive. It supports the weight of the machine, provides a rail for the machine to travel on, and provides a place for the track shoes to attach.
Features
Grease lubricated tracks have internally lubricated pins and bushings to avoid contact and friction, and each track joint is sealed to keep the grease in. As a result, the internal wear life of sealed tracks is extended by 25%, undercarriage noise is reduced, and the chance of joints freezing or seizing is lowered.
Specifications
| Undercarriage System | HD |
|---|---|
| Main Bolt Thread | M20 |
| Wear Sensor | None |
| Track Bolt Thread | M20 |
| Track Reinforcement System | Not Applicable |
| Master Link Type | Clamp Master Link |
| Seal and Lubrication Type | SALT |
| Grease Lubricated Track Type | GLT |
| Track Shoe Bolt Hole Spacing A | 69 mm (2.717 in) |
| Track Shoe Bolt Hole Spacing C | 155.6 mm (6.126 in) |
| Track Pitch | 190 mm (7.48 in) |
| Number of Links | 47 |
| Bushing Outside Diameter | 58.72 mm (2.312 in) |
| Pin Length | 203 mm (7.992 in) |
| Number of Track Links | 47 |
| Pin Retention System | Press Fit |
| Link Inside Spacing at Sprocket | 82.6 mm (3.252 in) |
| Rail to Bushing Outside Diameter | 27.6 mm (1.087 in) |
| Track Shoe Bolt Hole Spacing B | 119.6 mm (4.709 in) |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Rotating Bushing Track | No RBT |
| Link Outside Spacing | 168.5 mm (6.634 in) |
| Link Height | 103 mm (4.055 in) |
| Link Inside Spacing at Roller | 96.3 mm (3.791 in) |
| Rail to Pin Boss Outside Diameter | 30.6 mm (1.205 in) |
Compatible Equipment
- Excavators: 320 GC, 323 GX, 320 GX, 320
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
