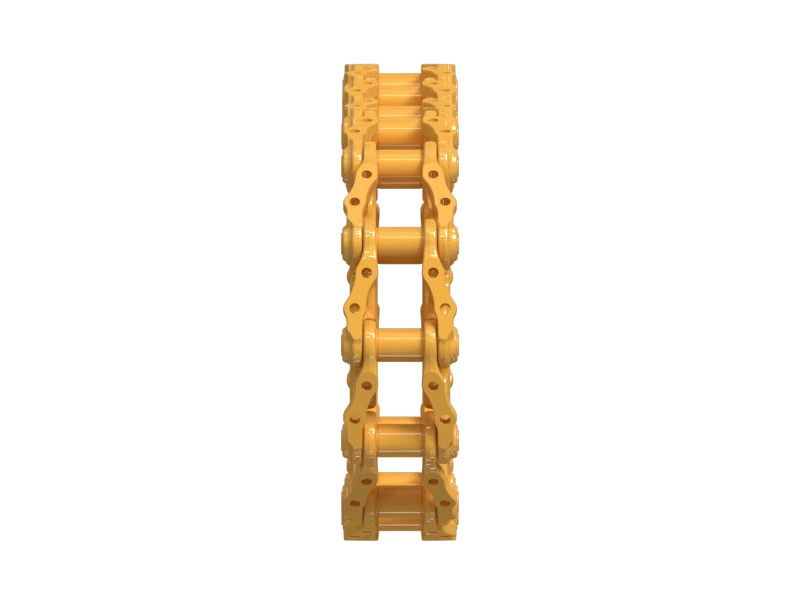

213-1972 Connecting Rod Group
Cat® Double Grouser Track Shoe Lubricated Track Link
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Track links engage with the sprocket and idlers to form a continuous loop that allows the vehicle to travel forward or backward. The rugged construction of the track links ensures the strength and reliability needed to withstand heavy loads, impact, and continuous movement.
Attributes
- Resists wear and extends service life.
- Reduces noise and vibration levels during machine operation.
Applications
Track links provide traction, stability, and the ability to cross uneven surfaces, enabling the machine to push, dig, and move heavy loads effectively.
Specifications
| Number of Track Links | 45 |
|---|---|
| Bolt Size | M22 mm (0.8661 in) |
| Master Link Type | Press Fit Master |
| Seal and Lubrication Type | SALT |
| Main Bolt Thread | M22 |
| Track Bolt Thread | M22 |
| Grease Lubricated Track Type | GLT |
| Track Reinforcement System | Not Applicable |
| Track Pitch | 215.9 mm (8.5 in) |
| Undercarriage System | HD |
| Wear Sensor | No |
| Track Shoe Bolt Hole Spacing A | 76 mm (2.992 in) |
| Rotating Bushing Track | No RBT |
| Rail to Bushing Outside Diameter | 33.4 mm (1.315 in) |
| Link Height | 124 mm (4.882 in) |
| Link Inside Spacing at Roller | 108.4 mm (4.268 in) |
| Bolt Hole Diameter | 23 mm (0.906 in) |
| Track Shoe Bolt Hole Spacing C | 190 mm (7.48 in) |
| Pin Length | 245.5 mm (9.665 in) |
| Track Shoe Bolt Hole Spacing B | 140 mm (5.512 in) |
| Pin Retention System | Press Fit |
| Rail to Pin Boss Outside Diameter | 35.8 mm (1.409 in) |
| Number of Links | 45 |
| Link Outside Spacing | 200.8 mm (7.906 in) |
| Bushing Outside Diameter | 70 mm (2.756 in) |
| Link Inside Spacing at Sprocket | 92 mm (3.622 in) |
Compatible Equipment
- Excavators: 336E, 336D2 L, 336E H, 330D, 312D, 330C L, 336D2, 336D
