Description

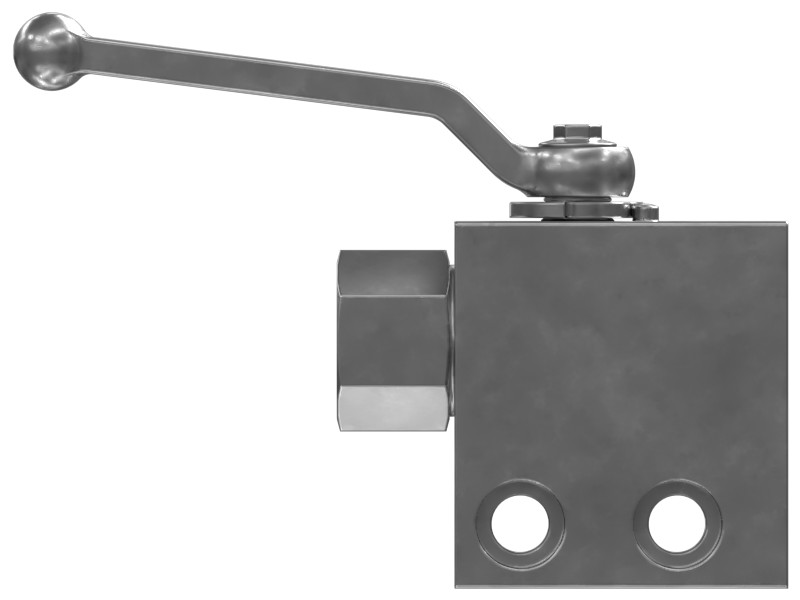

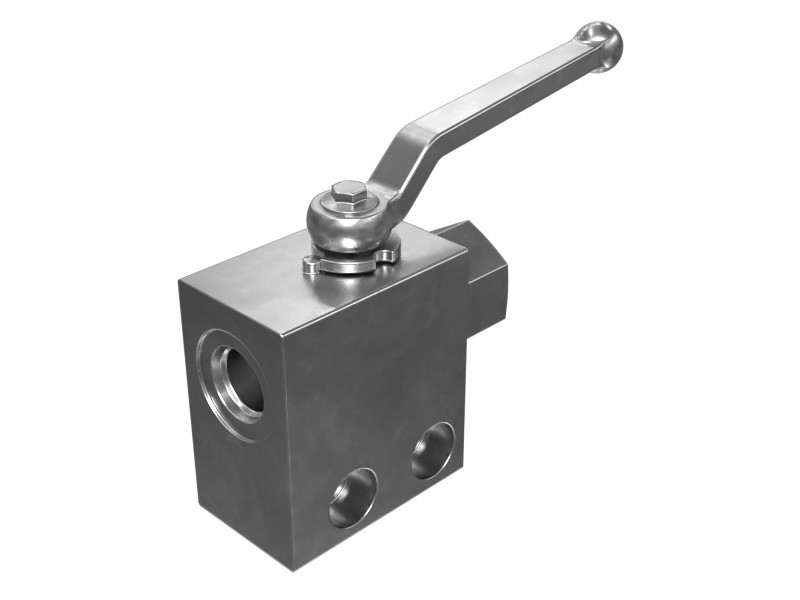

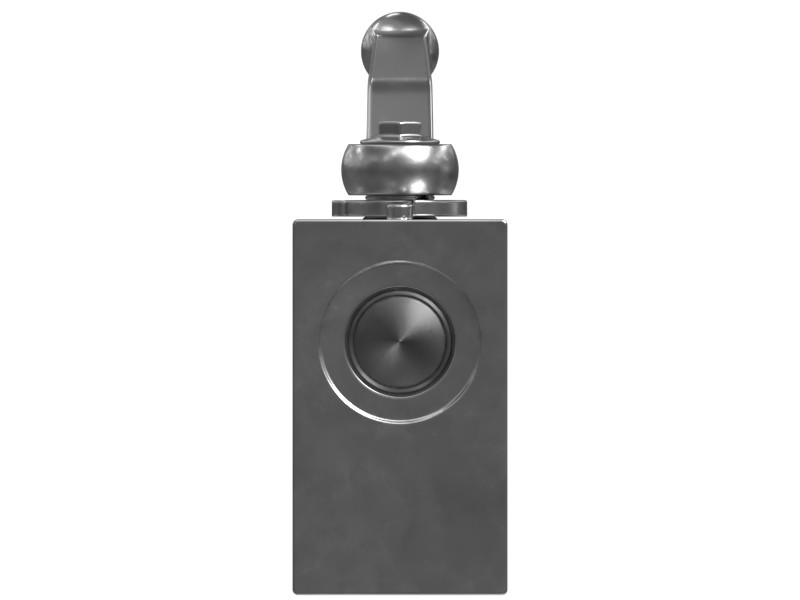

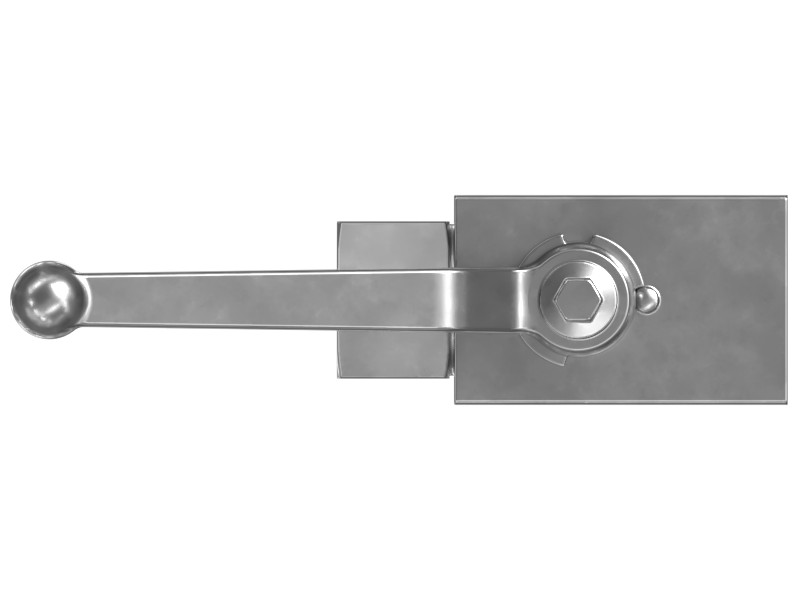

The Cat® ball valve is an in-line component that manually shuts off fluid flow when the handle is turned a quarter turn.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Overall Length | 148.0 mm (5.8 in) |
| Length | 64 (Body) mm (2.50 (Body) in) |
| Overall Width | 40.0 mm (1.6 in) |
| Width | 70 mm (2.76 in) |
| Height | 40 mm (1.57 in) |
| Overall Height | 110.0 mm (4.3 in) |
| Weight | 0.7 kg (1.6 lb) |
| Thread Size | 3/4-16 (2X) in |
Compatible Equipment
- Mini Excavators: 302CR, 301.5, 301.7CR, 308, 305.5E, 303.5E
- Excavators: 305E2 CR, 303CR, 303.5CR, 305 CR, 305, 303.5E2 CR
