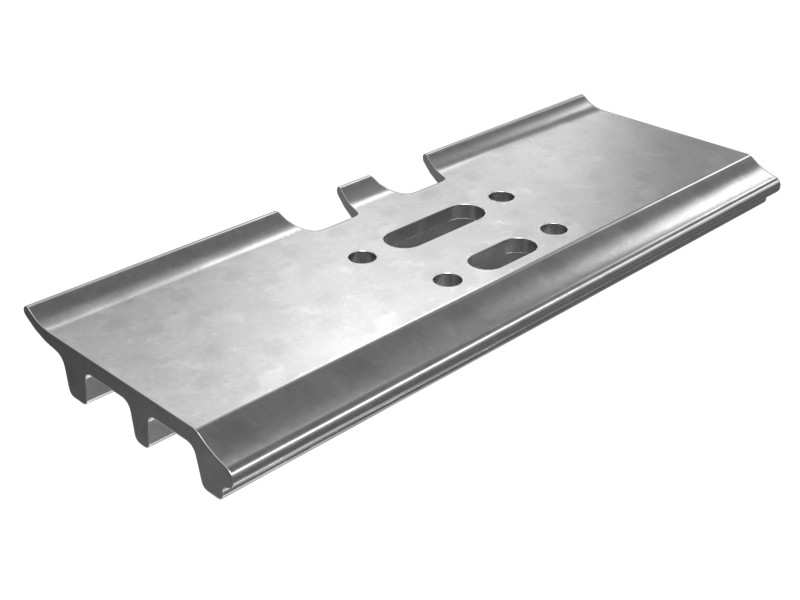

527-8990 600 mm Wide Triple Grouser Track Shoe

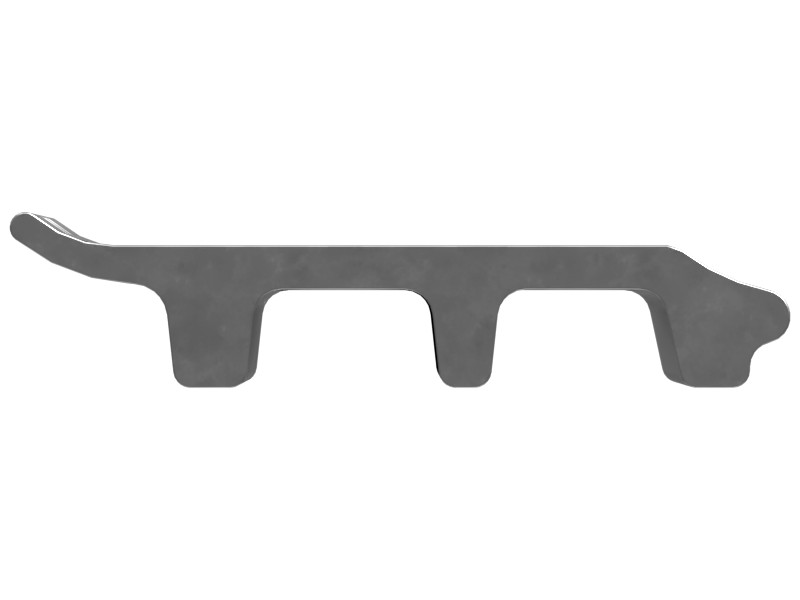

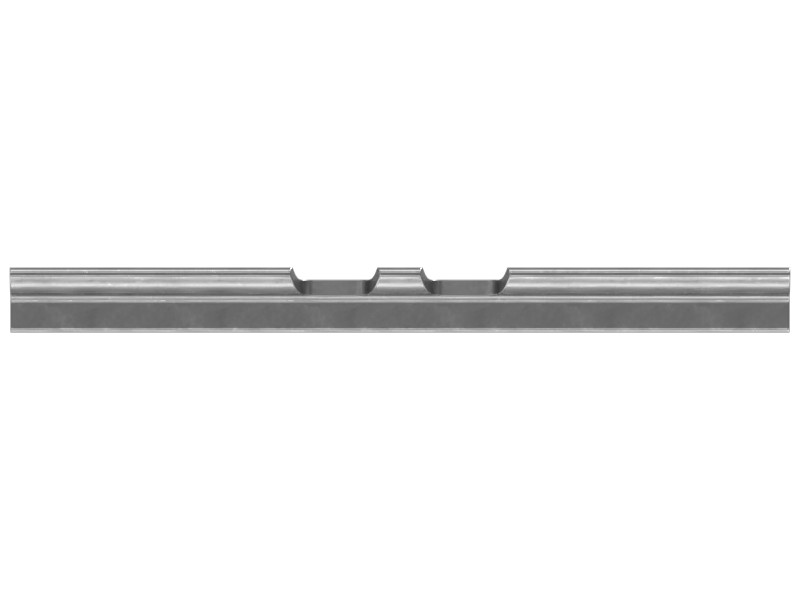

Heavy Duty Track Shoe (Triple Grouser) (Slotted)
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
- Triple grouser track shoes offer less penetration and traction than single grouser track shoes, but better steering capability. Triple grouser track shoes are standard on track-type loaders and excavators because they have less turning resistance and better maneuverability.
- Heavy Duty tracks meet the demands of the most severe applications. Even in the harshest conditions, they ensure wet bushing rotation, industry-leading pin and bushing retention, and added link weight that helps prevent cracking. Components are made of premium steel and hardened for exceptional hardness and wear life, and they work and wear together as a complete system to maximize uptime and productivity.

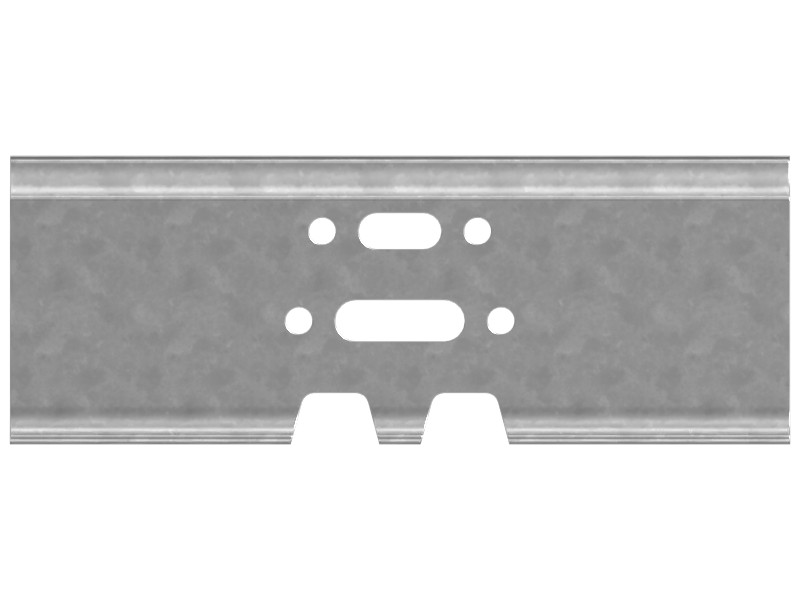

- Slotted track shoes have a cross slot cut between the bolts to release squeezable packed material.
Specifications
| Plate Thickness | 8.5 mm (0.335 in) |
|---|---|
| Track Shoe Bolt Hole Spacing B | 119.57 mm |
| Track Shoe Section 1E Specification | 1E1845 |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Track Shoe Bolt Hole Spacing C | 155.57 mm |
| Track Shoe Bolt Hole Spacing A | 69 mm |
| Material | Carbon Steel |
| Abrasion Resistant Material | 0 ARM |
| Main Bolt Thread | M20 |
| Offset | None |
| Hole Type | Slotted |
| Connector Type | Regular |
| Number of Grousers | Triple |
| Track Bolt Thread | M20 |
| Track Reinforcement System | None |
| Shear | No |
| Undercarriage System | HD |
| Track Shoe Type | Triple Grouser |
| Track Shoe Width | 600 mm (23.62 in) |
Compatible Equipment
- Excavators: 323, 325, 320B, 320, 326GC, 326, 323D2 L, 320D2 L, 320C, 323D L, 326 GC, 333 GC, 323D, 320D2, 326D2, 320D
