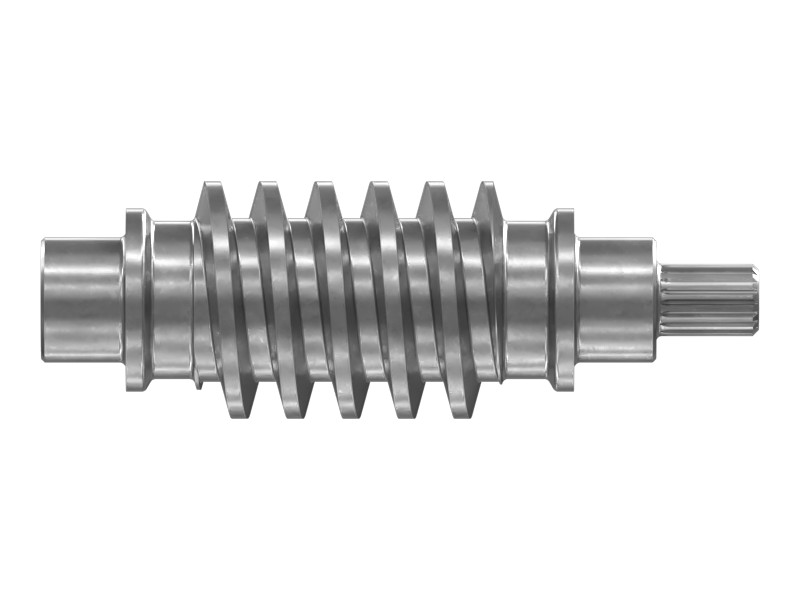

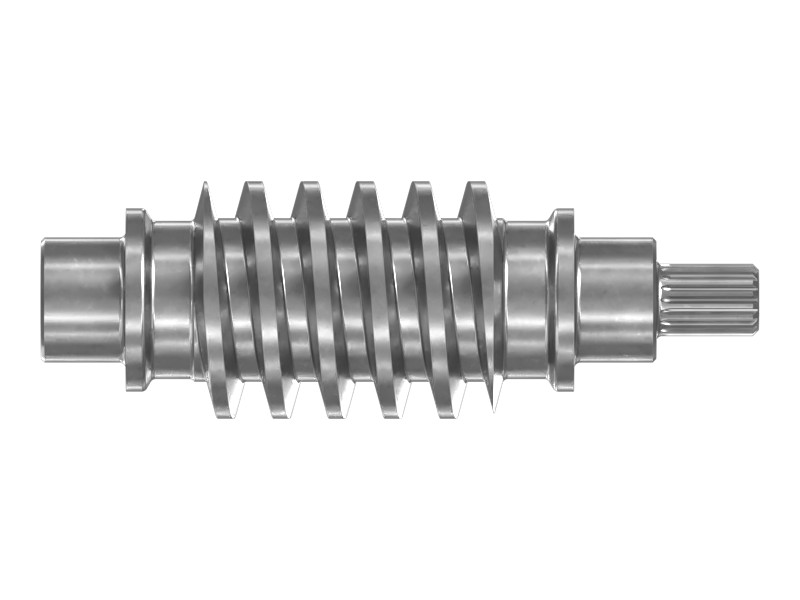

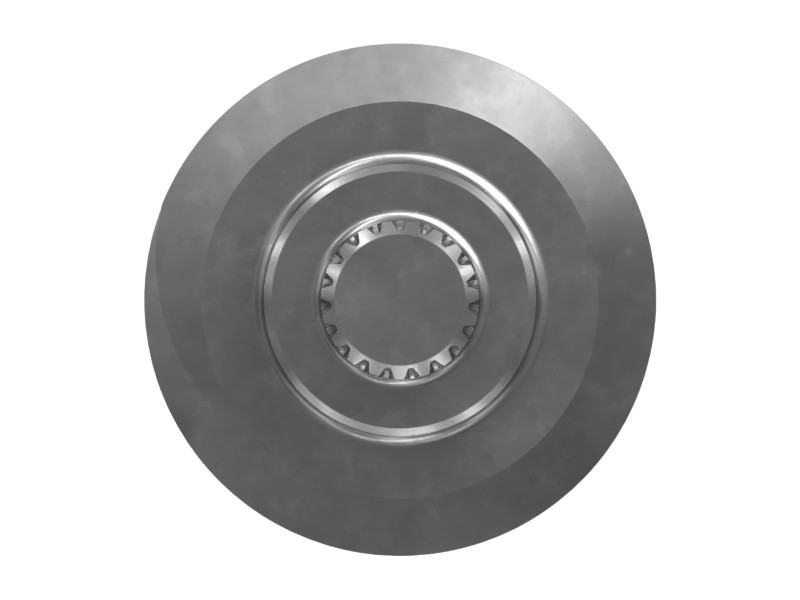

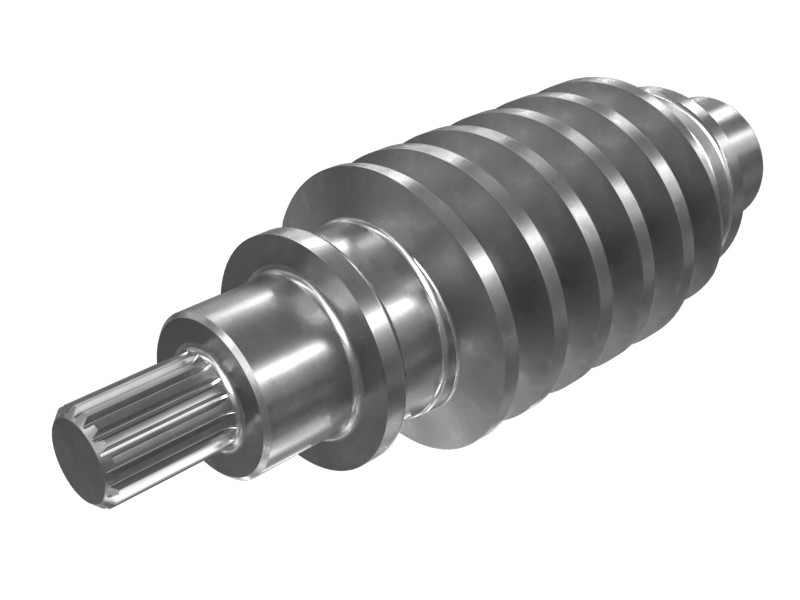

523-9068 19 Tooth External Spline Worm Gear
The Cat® hydraulic system circle drive worm gear converts the rotary motion of the hydraulic motor into linear motion.
Description
Cat power train components must withstand extremely high torque, high shock loads, and frequent direction changes and gear shifts. Cat designs and manufactures transmission and final drive components with this requirement in mind. The Cat worm gear consists of a threaded shaft that meshes with a gear to change the direction of the shaft's rotary motion.
Features
- Hardened Steel Worm Gear Shaft
- Number of External Spline Teeth: 19
Applications
The Cat worm gear is used in the circle drive group on Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Diameter | 102.69 mm (4.042 in) |
| Length | 310.4 mm (12.220 in) |
Compatible Equipment
- Motor Graders: 18, 16M, 16M3, 16, 16H
- Skid Steer Loaders: 24
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
