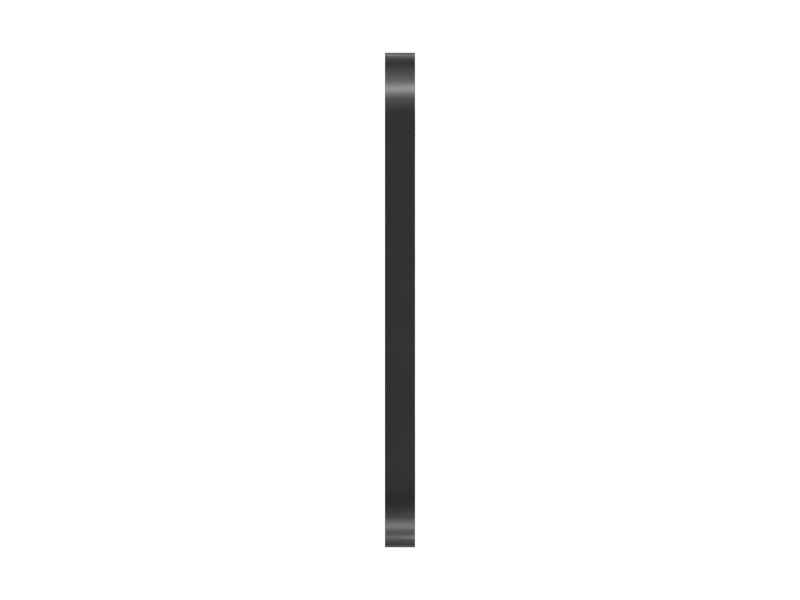

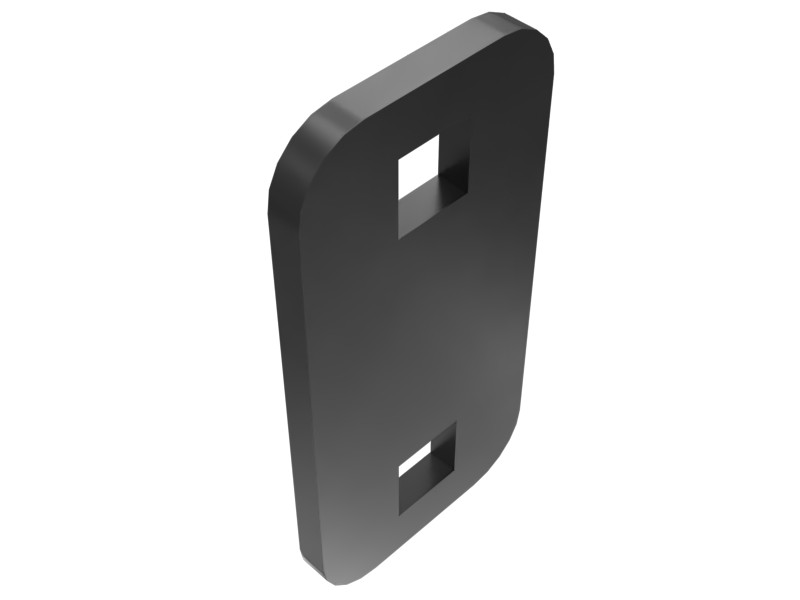

4V-9804 6 mm Thick Pedal Support Plate
Cat® 6 mm thick steel step support plate for ladders
Description
Cat® bearing retainers are designed to hold the bearing in the correct position for its application. Rugged construction and materials ensure a long service life.
Features
Outside Diameter: 184 mm (7.24 in)
Inside Diameter: 80 mm (3.15 in)
Overall Width: 52.6 mm (2.07 in)
Material: Iron
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel |
| Overall Height | 50 mm (1.97 in) |
| Overall Length | 100 mm (3.94 in) |
| Thickness | 6 mm (0.24 in) |
| Weight | 0.21 kg (0.46 lb) |
Compatible Equipment
- Motor Graders: 140G, 12H, 140K, 12K, 120H, 140H, 160K, 16M, 14M, 16H
- Track Loaders: 824C
- Compactors: CS-583D, CS-533C
- Dozers: D10R
- Excavators: 637G, 621G, 621H, 621K, 657G, 320D FM, 637K
- Wheel Loaders: RM500B
- Off-Highway Trucks: 772G, 777D, 793F, 789D, 770G, 793D, 797F, 785D, 777, 798 AC, 777E, 785, 796 AC, 794 AC, 773, 793, 773E, 789, 773F, 771D, 773D, 775G
Additional information
| Machine Model | 120H, 12H, 12K, 140G, 140H, 140K, 14M, 160K, 16H, 16M, 320D FM, 621G, 621H, 621K, 637G, 637K, 657G, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 824C, CS-533C, CS-583D, D10R, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
