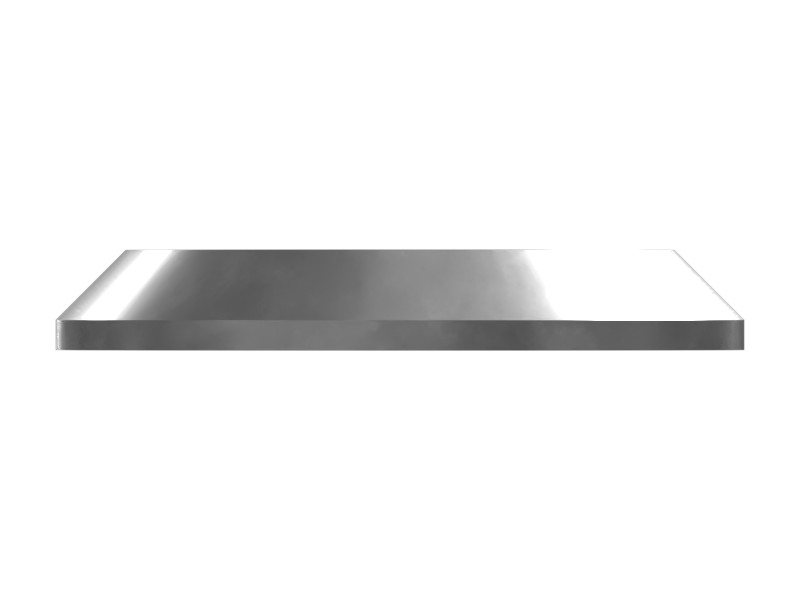

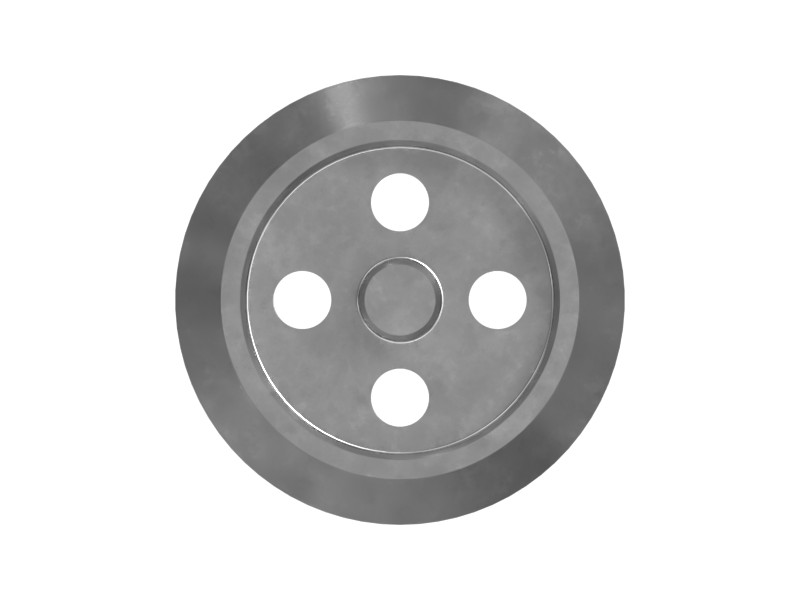

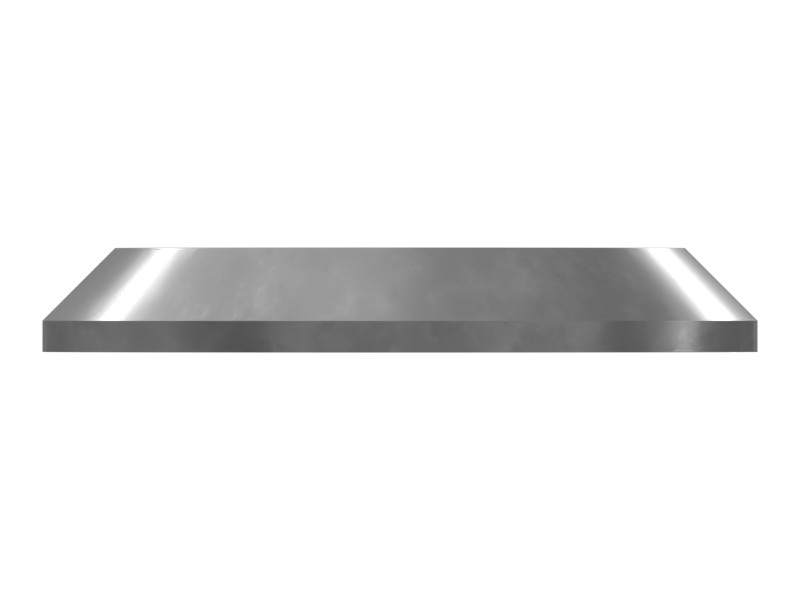

Description
Cat retainers are used to hold components in the correct position for the application. Their rugged construction and materials ensure long service life.
Features
Cat retainers are manufactured to precise specifications for durability, reliability and high efficiency, and are environmentally friendly and reusable.
Applications
- Retainers are used, among other purposes, to position and secure the reaction hub on the spindle in the final drive assembly, and to position and secure the bearing on the wheel spindle in the wheel and brake assembly.
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Structural Steel |
|---|---|
| Coating | Not Specified |
| Inside Diameter | Not Specified mm (Not Specified in) |
| Outside Diameter | 138 mm (5.433 in) |
| Hole Size | 18 mm (0.709 in) |
| Mounting Hole Spacing | 60 mm (2.362 in) |
| Thickness | 20 mm (0.787 in) |
| Fits Bolt Size | M16 mm (5/8-11 in) |
Compatible Equipment
- Dozers: D9T, D9R, D9, D11
