Description
Cat® J Series tips offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
With an industry-standard side-retained design, Genuine Cat bucket tips can be used in a wide variety of applications, greatly increasing equipment versatility. The standard pin and retainer system allows quick installation and removal. You can also convert to our innovative hammerless J Series CapSure™ system to make the job easier.

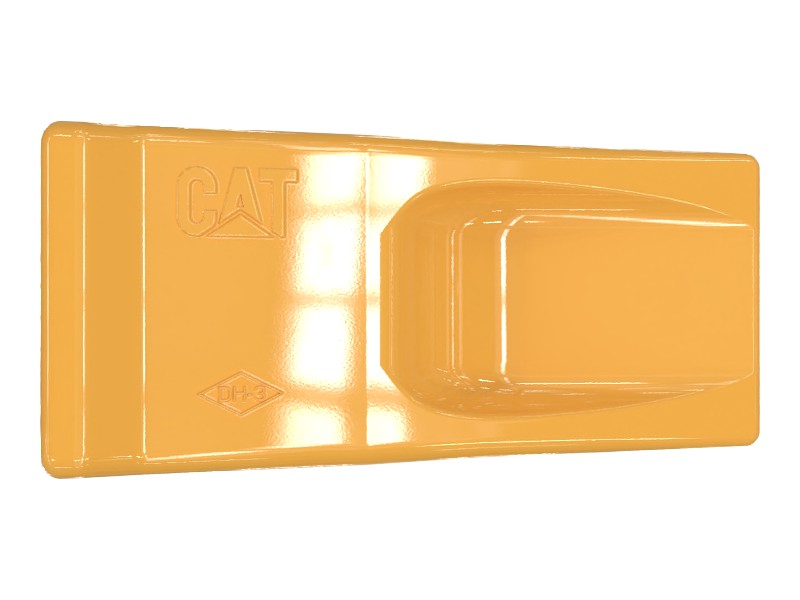

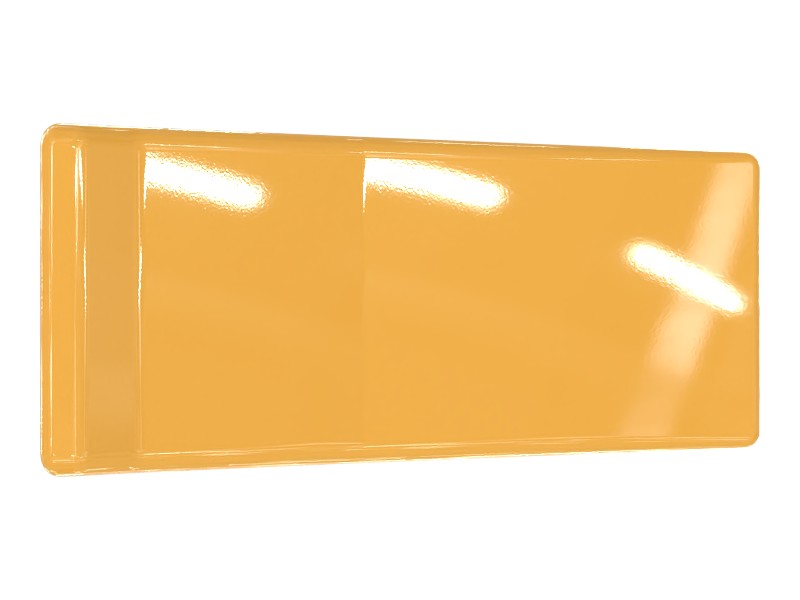

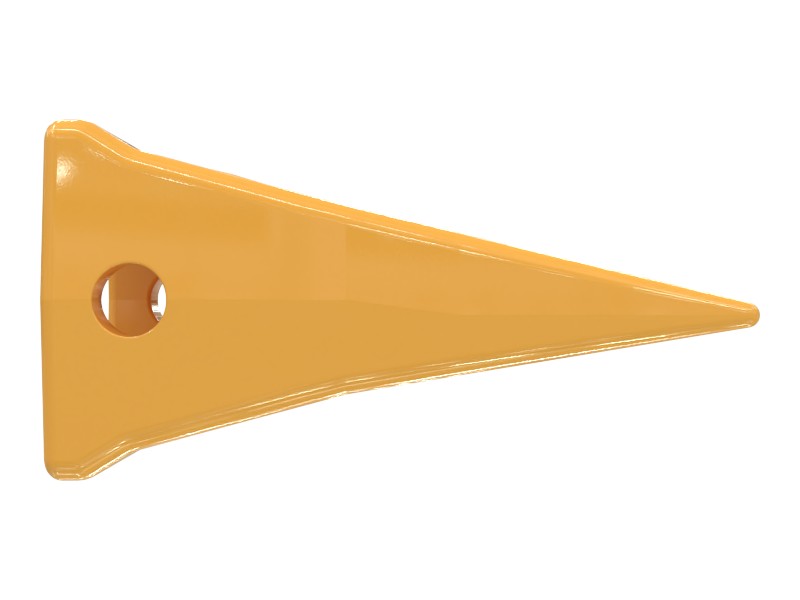

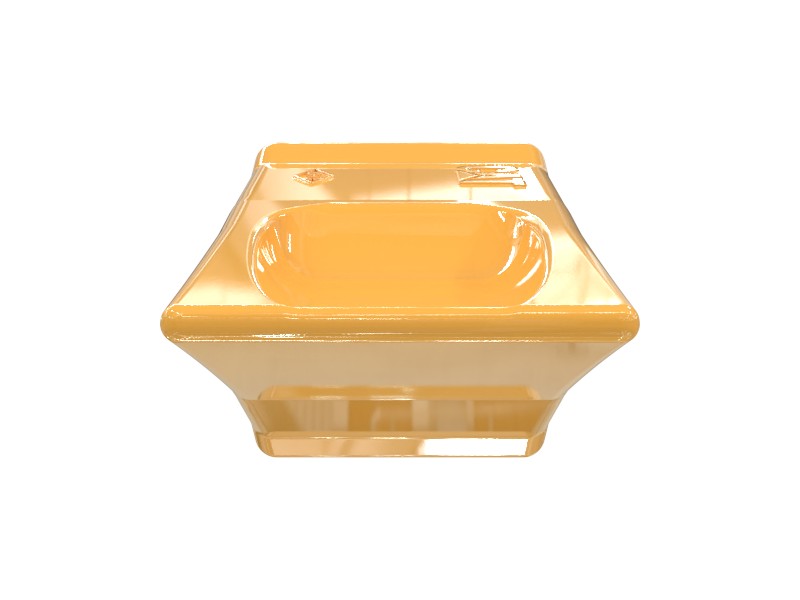

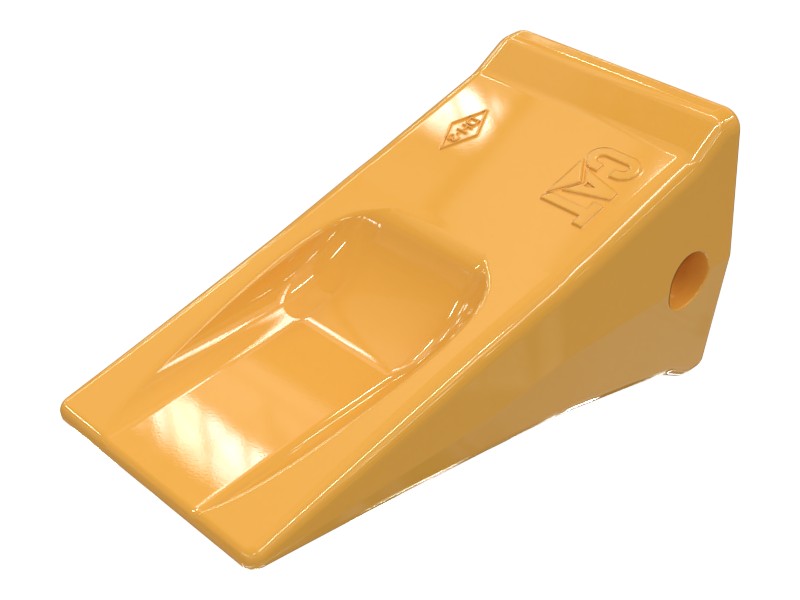

The long tip is symmetrical and is the benchmark for other tip styles. Our tips are durable, cast from steel that holds its hardness and offers long wear life, enabling your machine to deliver the performance you need. Always choose Genuine Cat bucket ground engaging tools to protect your investment.
Features
- Long, symmetrical top and bottom self-sharpening chambers
- High strength, high penetration, and excellent abrasion resistant material
Applications
- General digging and loading
- Low to medium impact and wear
Specifications
| Series | J Series |
|---|---|
| Size | J700 |
| End Bit Size | J700 |
| Wear or Durability | Standard |
| Material | Alloy Steel |
| Front Width | 180 mm (7.087 in) |
| End Bit Length | 415 mm |
| Shape | General Purpose |
| Rear Width | 200 mm (7.874 in) |
| Overall Length | 415 mm (16.339 in) |
| Rear Height | 200 mm (7.874 in) |
Compatible Equipment
- Excavators: 385C, 385B, 345C L, 390D, 385C L, 385C FS
- Wheel Loaders: 992C, 992D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
