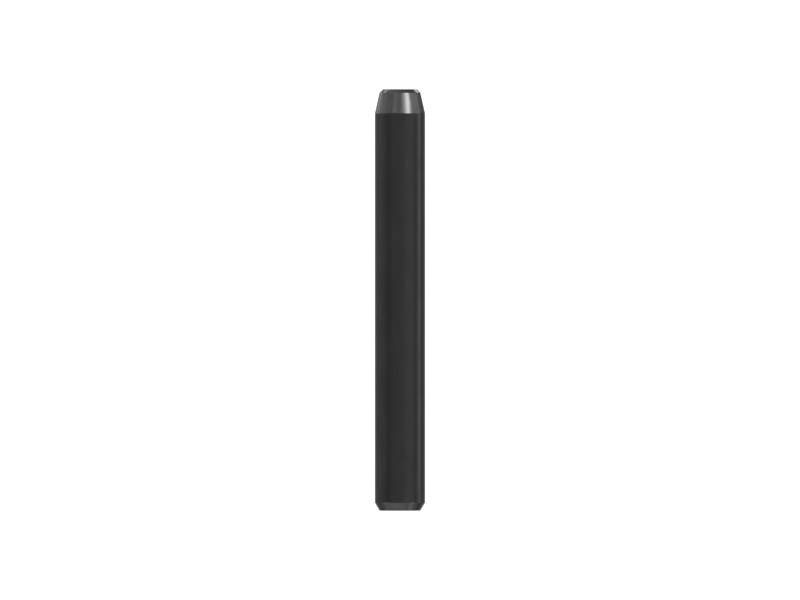

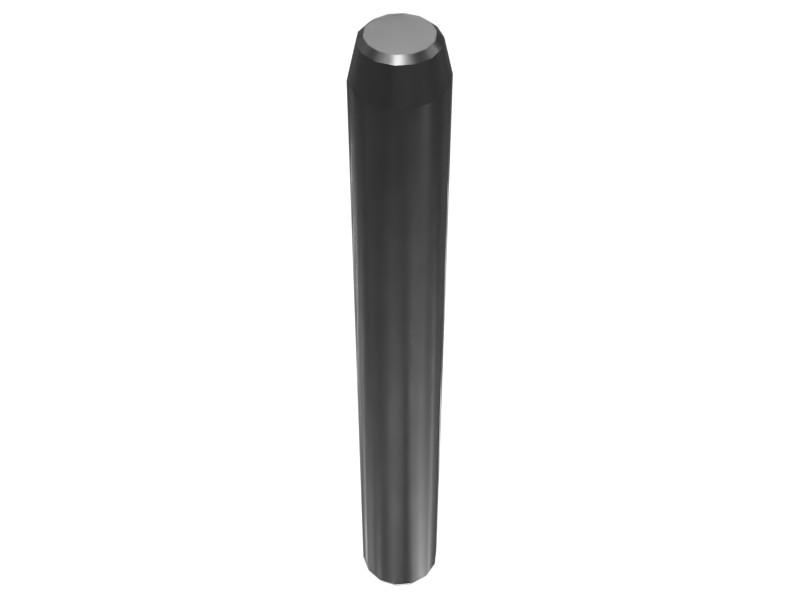

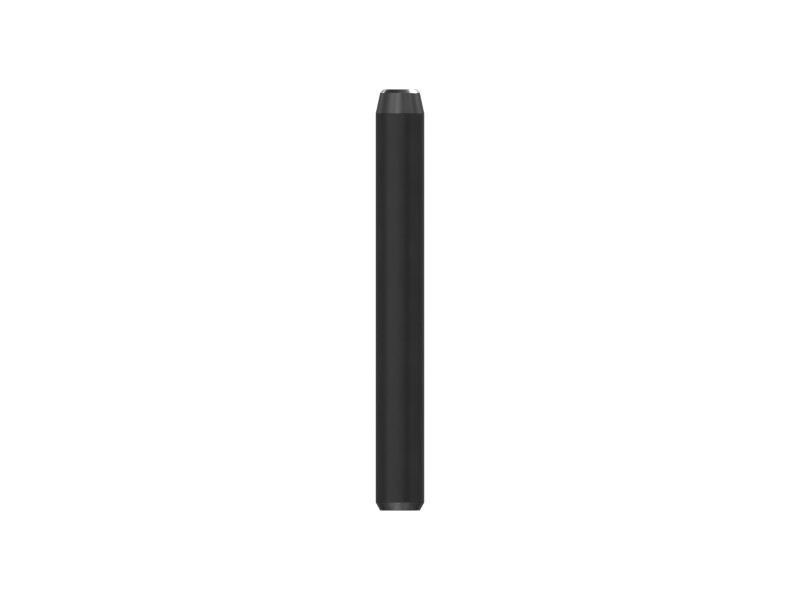

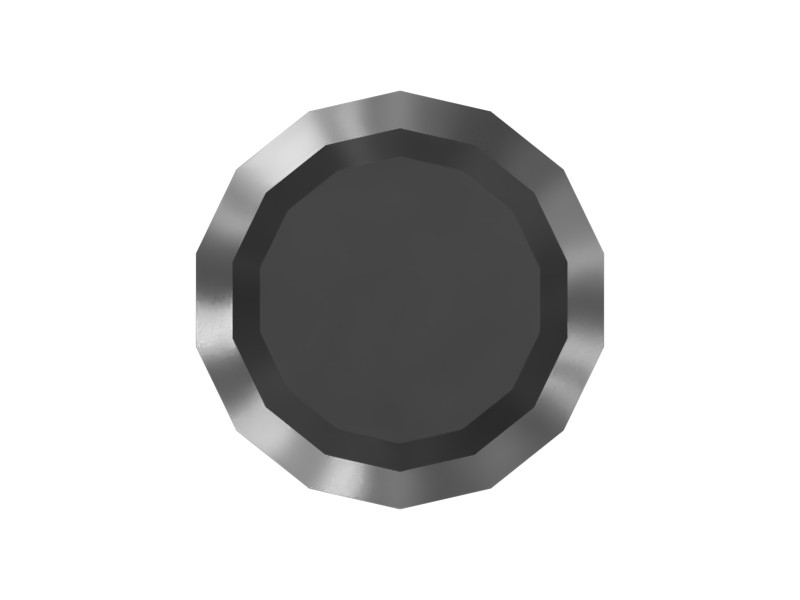

Description
Heat treated by a direct hardening process. Hardens to a Rockwell hardness of C33-39. Designed with a taper point that can be used for a plug tap. Meets SAE Grade 8 strength requirements
Specifications
| Thread Size (in – TPI) | 3/8 – 16 in |
|---|---|
| Coating | Fabric Texture Finish |
| Hole Thread Pitch | 16 |
| Locking Feature | Dimensions and tolerances for straight, tapered and interference-thread studs. Includes metric thread sizes M5 to M64 and Unified Inch thread sizes � to 1-� in. |
| Grade | Fabric Texture Finish |
| Thread | Coarse Thread UNC |
| Thread Size | 0.375 mm |
| Overall Length | 80.9625 mm (3.19 in) |
| Screw Length – A | 3 3/16 in |
| Material Description | High-Temperature Steel (Up to 500°C) |
| Stud Type | Fully Threaded Stud |
| Material | Coating Fluid |
| Stud Thread Size | 3/8-16 in |
Compatible Equipment
- Generator Sets: 3406C, 3406B, 3512E, 3512B, 3516C, C9, C4.4
- Track Loaders: 824C, 826G, 824G
- Cold Planers: PM620, PM622
- Compactors: 815, 816, 814, C-15
- Engines: C15, C18
- Excavators: 3456, 3512C, 637E, 385B, 6018
- Asphalt Pavers: AD30
- Motor Graders: 120
- Wheel Excavators: MD6200
- Dozers: D8N, D9N, D4E, D8L, D6G2 LGP, D9R, D9L, D8R, D6G2 XL, D10
- Wheel Loaders: R2900G, R3000H, 950, 992C, 980G, 988G
- Off-Highway Trucks: 785D, 785, 735, 789D, 793, 740, 789
Additional information
| Machine Model | 120, 3406B, 3406C, 3456, 3512B, 3512C, 3512E, 3516C, 385B, 6018, 637E, 735, 740, 785, 785D, 789, 789D, 793, 814, 815, 816, 824C, 824G, 826G, 950, 980G, 988G, 992C, AD30, C-15, C15, C18, C4.4, C9, D10, D4E, D6G2 LGP, D6G2 XL, D8L, D8N, D8R, D9L, D9N, D9R, MD6200, PM620, PM622, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
