Description

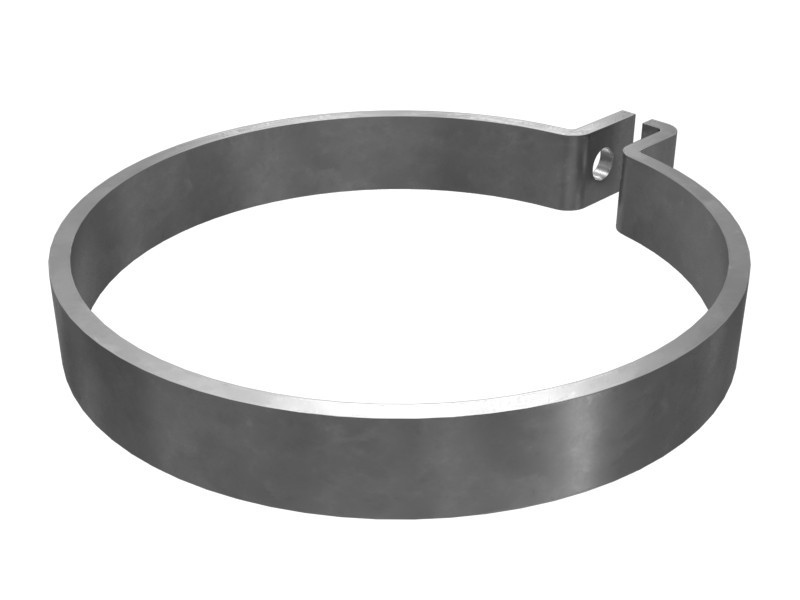

The exhaust muffler clamp is a band clamp specifically designed to provide a support structure to secure the muffler to the exhaust pipe. It is typically made of strong material such as steel, ensuring that the components are securely held in place and providing a tight seal between the components.
Features
- Good wear resistance.
- Provides a torque value of 4.5 Nm for a secure, tight seal without damaging the clamped components.
Applications
The exhaust muffler clamp is used to securely connect to the muffler and exhaust pipe.
Specifications
| Clamp Width | 31 mm (0.94 in) |
|---|---|
| Material | Steel |
| Hole Size | 13.5 mm (0.531 in) |
| Maximum Effective Diameter | 206.38 mm (3.62 in) |
| Inside Diameter | 206.38 mm (8.125 in) |
| Thickness | 6.4 mm (0.23 in) |
| Material Description | Steel |
| Weight | 0.84 kg (1.84 lb) |
Compatible Equipment
- Cold Planers: PM-200
- Engines: C15, C27, C18
- Dozers: D10, D10R
- Excavators: 385C, 3456
- Off-Highway Trucks: 777, 773, 773E, 773F, 777D, 773D, 777E, 775G, 785
