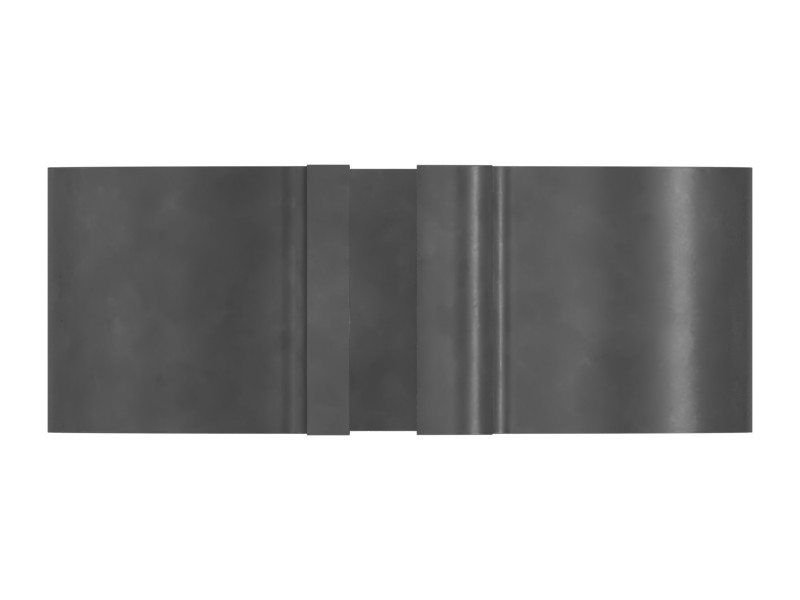

151-9706 Tension Band Clamp
Cat® 75.20 mm Diameter Steel Tension Exhaust Band Clamp
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The tension band clamp, also known as a pipe band clamp or pipe clamp, is used to provide a secure, leak-proof connection between a pipe and a fitting. It is typically made of metal or plastic. It can be used to connect a hose to a pipe, fitting, or other tube, and can be easily adjusted or removed as needed. The band clamp is designed to be highly flexible.
Features
- Comes with 2 mounting holes for use with M10 fasteners.
- Made of steel for high strength and high wear resistance.
- Provides a reliable, secure connection between the exhaust pipe and fitting.
Applications
The tension band clamp is used to retain or secure the exhaust extension pipe.
Specifications
| Clamp Width | 32 mm (1.26 in) |
|---|---|
| Hole Size | 13.0 mm (0.511 in) |
| Maximum Effective Diameter | 75.2 mm (2.96 in) |
| Inside Diameter | 75.20 mm (2.960 in) |
| Material Description | Steel |
| Thickness | 5 mm (0.2 in) |
| Weight | 0.38 kg (0.84 lb) |
Compatible Equipment
- Wheel Excavators: M315D, M313D, M315D2, M317D2
- Compactors: CB-534D, CB-564D
- Mini Excavators: 307C, 307D, 307B, 306, 305.5
