Description
Track bolts are used to secure track shoes to the link assembly.
Specifications
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Thread Size | 0.500 mm (0.02 in) |
| Thread Direction | RH |
| Bolt Size | 1/2 in |
| Locking Feature | None |

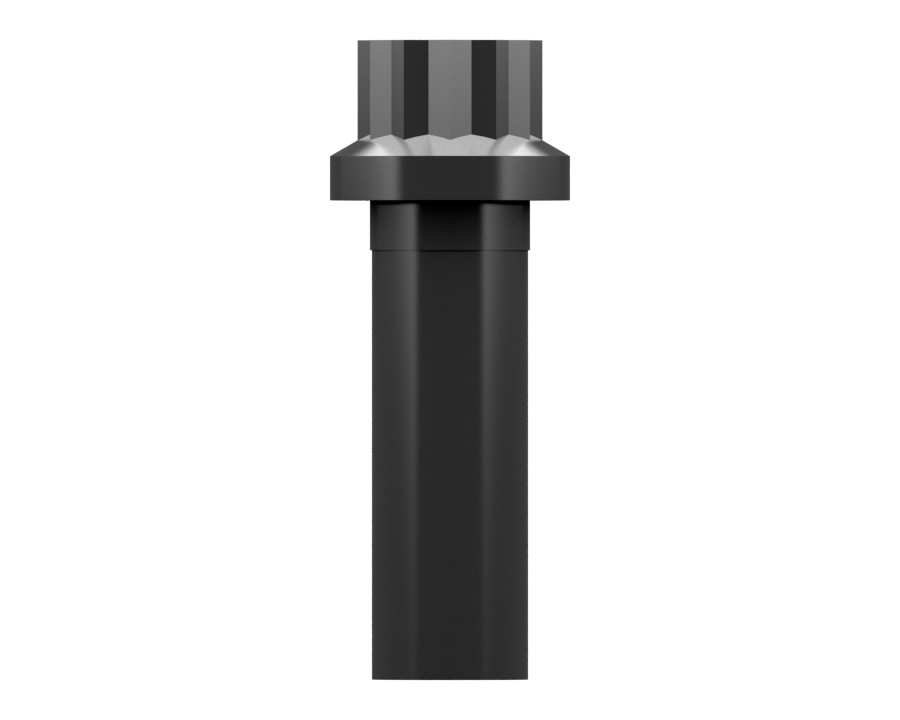

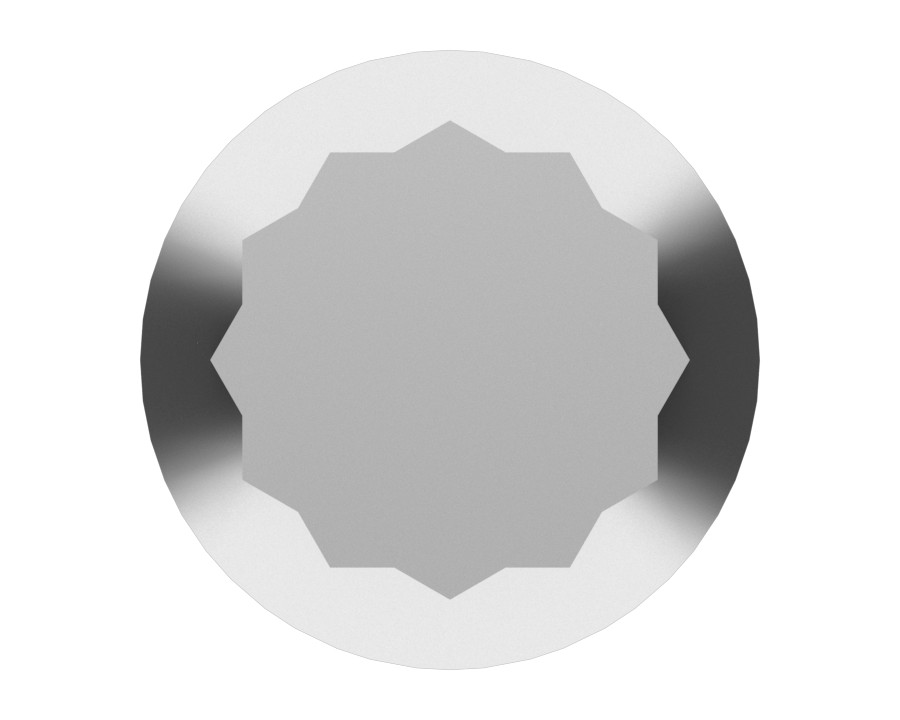

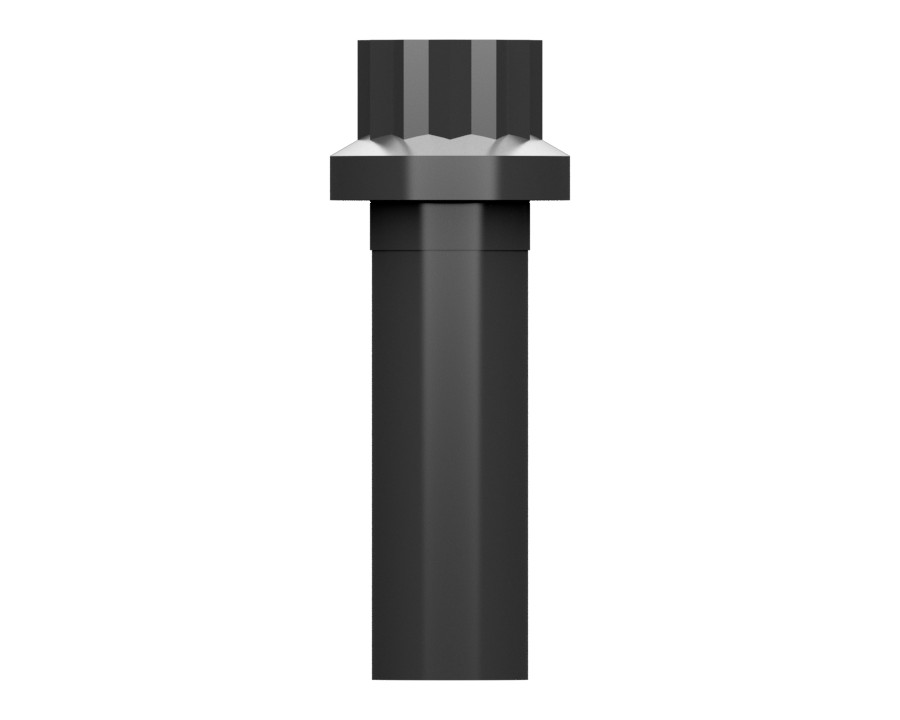

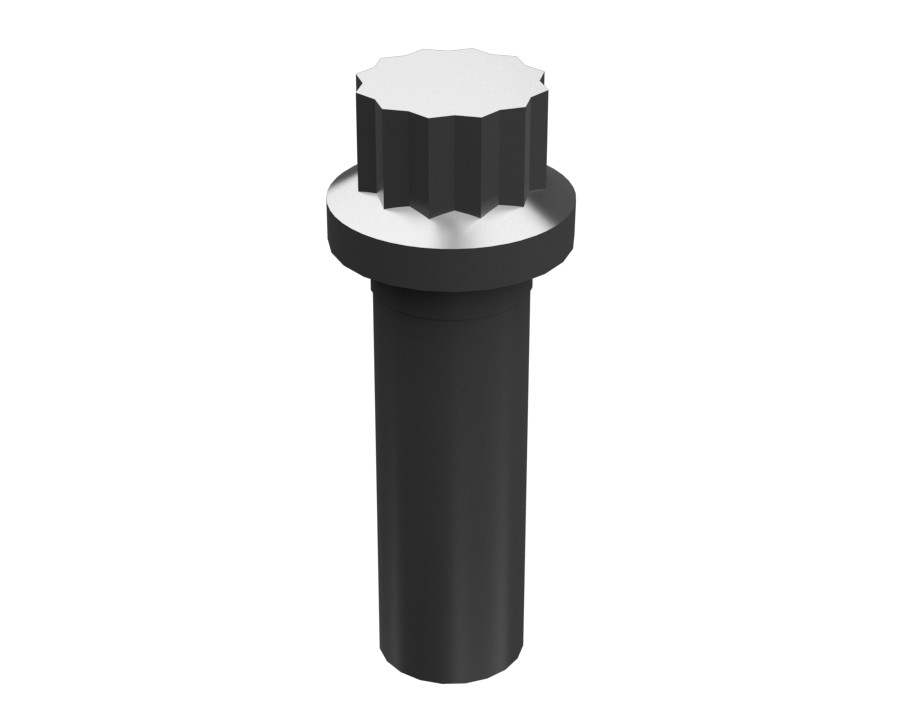

| Type | 12-Point Head Bolt |
| Material | Alloy Zinc |
| Bolt Length | 38.1 mm (1 1/2 in) |
| Bolt Type | 12-Point Head Bolt |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
| Handle Length | 3.96875 mm (0.16 in) |
| Flange Diameter | 0.75 in |
Compatible Equipment
- Generator Sets: 3512E, 3512B, 3516C, C7.1, G3516
- Track Loaders: 992, 953, 994K, 995, 993, 824C
- Cold Planers: PM620, PM622, PM-200
- Engines: C15, C32, C18
- Excavators: 303.5E2 CR, 305E2 CR, 3516E, 330 L, 3516B, 3508B, 3512C, 350 L, 6060, 330B, 637G
- Asphalt Pavers: AP655F, AD45, AP-600D, AP655F L, AD63
- Motor Graders: 3606
- Dozers: D10, D10R, D10T2, D11R, D10T, D11N, D10N, D9, D6R, D5H, D5M, D9T, D4E, D6M, D9R, D7R, D9L, D8L, D9N
- Mini Excavators: 305.5E, 303.5E
- Wheel Loaders: 988F, 950, RM500B, RM400, R1700G, 836, R1300G, R1700 II, R2900G, R3000H
- Off-Highway Trucks: 785D, 789, 777D, 793D, 785, 735, 777, 725, 773, 793
Additional information
| Machine Model | 303.5E, 303.5E2 CR, 305.5E, 305E2 CR, 330 L, 330B, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 6060, 637G, 725, 735, 773, 777, 777D, 785, 785D, 789, 793, 793D, 824C, 836, 950, 953, 988F, 992, 993, 994K, 995, AD45, AD63, AP-600D, AP655F, AP655F L, C15, C18, C32, C7.1, D10, D10N, D10R, D10T, D10T2, D11N, D11R, D4E, D5H, D5M, D6M, D6R, D7R, D8L, D9, D9L, D9N, D9R, D9T, G3516, PM-200, PM620, PM622, R1300G, R1700 II, R1700G, R2900G, R3000H, RM400, RM500B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
