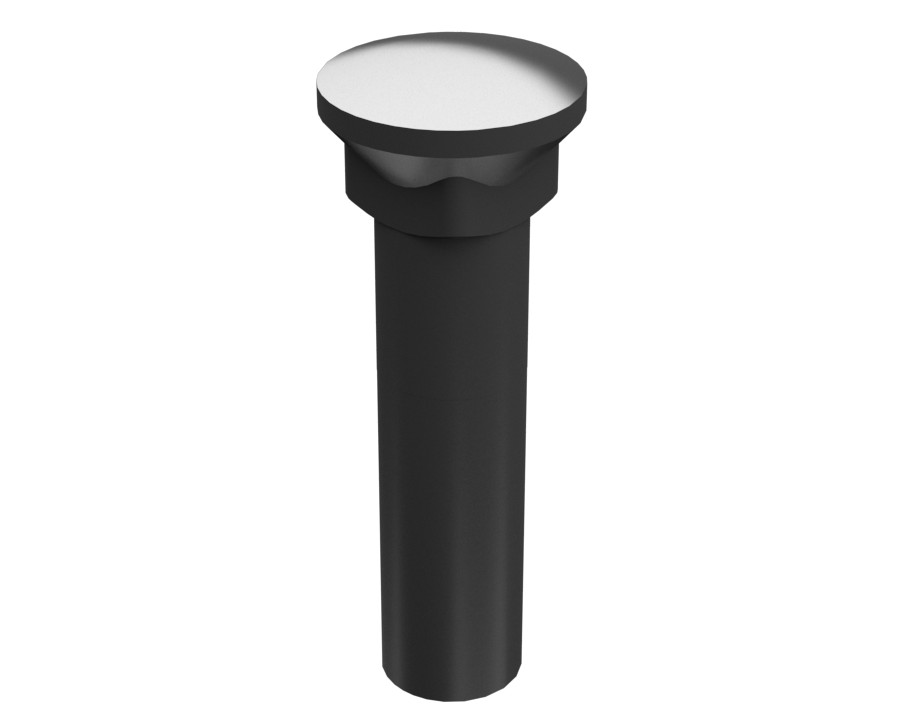

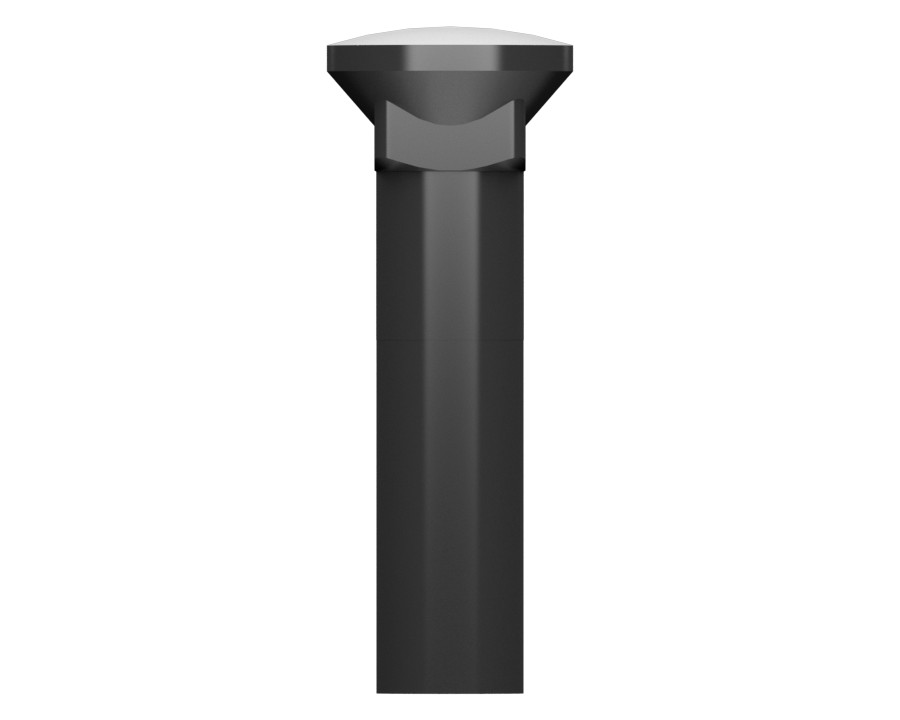

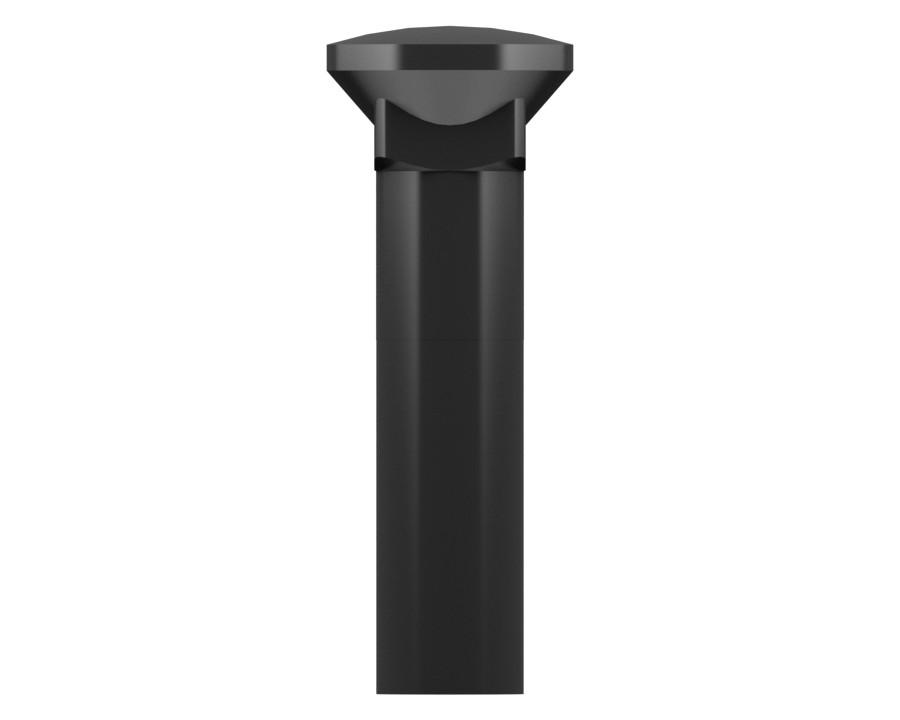

4F-3657 5/8-11 Thread 69.85 mm Long Plow Bolt
5/8" – 11 x 2 ¾" Plow Bolt
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® plow bolts form a matched system with the corresponding hardened washers and nuts to produce consistently high clamp force. These bolts install on the cutting edge and feature a domed head for added strength and wear life.
Features
- Thread Size: 5/8" – 11 TPI
- Bolt Length: 2 ¾"
- Domed head adds strength and wear resistance
- Exceeds SAE Grade 8 tensile strength and proof load specifications
Applications
- Cutting edge bolts
Specifications
| Material | Carbon Steel |
|---|---|
| Handle Length – 2 | 1.25 in |
| Bolt Type | Cutting Edge Bolts |
| Thread | Coarse Thread UNC |
| Head Width – 5 | 1.04 in |
| Bolt Overall Length – 3 | 2 3/4 in |
| Head Height – 4 | 0.54 in |
| Thread Size (in – TPI) | 5/8 – 11 in |
Additional information
| Part Source | Genuine OEM |
|---|
