Description

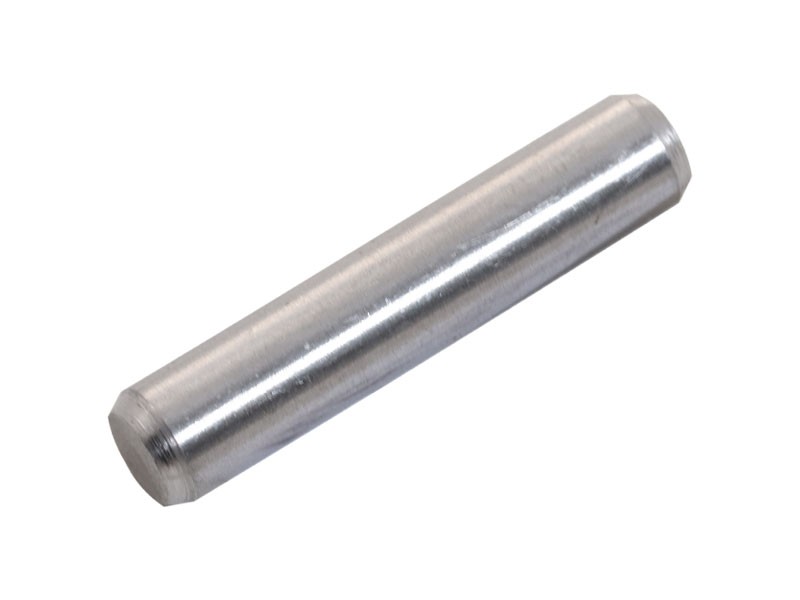

The solid pin is used to provide precise alignment and prevent relative movement between mating parts. It is a cylindrical pin that can be inserted into a hole in one part and then into the corresponding hole in another part to align and secure the two parts. It is typically designed to withstand the high stresses and high temperatures generated during operation.
Attributes
- Ensures proper fit and reliable performance
- Built to exact specifications for durability and reliability
Applications
Solid pins fit tightly in the hole, preventing any movement between parts, and are widely used in Cat 112, 112E, 112F, 12, 120, 120G, 12E, 12F, 12G, 130G, 140G, 14B, 14C, 14D, 14E, 14G, 16G and 212 Motor Graders, 1673, 1673B, 1674, 3508, 3512, 3516, D13000, D311, D311H, D315, D315G, D318, D318G, 1673, 1674, 3508, 3512, 3516, D13000, D311, D311H, D315, D315G, D315G, D318, D318G, D320A, D326, D330A, D330B, D333A, D333B, D334, D336, D336, 1676, D337, D3400, D346, D348, D349, D353C, D353D, D353E, D379A, D379B, D397D, D398A, D398B, D399, G333B, G348, G349, G379A, G398A and G399 Engines (Piston), 3508, 3512, 3512B, 3516, D379B, D398B and D399 Generator Sets, 561B, 561C, 594 and 594H Pipelayers, 6, 65, 65B, 65C, 65C, 65D, 70C, 75, 75C, 75D, 85C, 933C, 933E, 933F, 933G, 955C, 955E, 955F, 977D, 977E, 977H, D10, D11, D2, D4, D4C, D4D, D4E, D5, D6, D6B, D6C, D9G and D9H Track-Type Tractors, 621, 623, 627, 633C, 641B, 650B, 660B, 651B, 657B and 666B Wheel Tractor-Scrapers, 621, 623, 633, 633B, 641, 641B, 650, 650B, 651, 651B, 657, 657B, 660, 660B and 666, 666B Scrapers, 772 and 776 Trucks, 772, 773, 776 and 777 Trucks, 922A, 922B, 922B, 944A, 950, 966A, 966B, 980 and 992, 992B Wheel Loaders, 951, 951B, 955H, 955K and 977K Track Loaders, 9C and 9U Dozers, M520 and M553 Goer, M559 Cargo – Tank Trucks, Powershift, SPF743 Water Pumps, Cement Trucks.
Specifications
| Material | Steel(1E1042A) |
|---|---|
| Pin Type | Solid |
| Pin Length | 30 mm (1.181 in) |
| Pin Outside Diameter | 6.19 mm (0.244 in) |
| Length | 30 mm (1.18 in) |
| Pin Diameter | 6.19 mm (0.24 in) |
| Weight | 0.01 kg (0.02 lb) |
Compatible Equipment
- Motor Graders: 140G
- Track Loaders: 992
- Dozers: D11, D10
- Wheel Loaders: 980
- Off-Highway Trucks: 773, 777
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
