Description
Description: Cat® fastener parts are designed for specific applications based on size, strength, clamp load, and past performance.
. This information is not available to other manufacturers. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Features
- Cat fasteners are manufactured to strict specifications for durability, reliability and efficiency
High • Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, together with the associated hardened washers and nuts, form a high-performance system that produces sustained high clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts and their associated hardened washers and nuts form a high-performance system that provides sustained high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Material | Alloy Zinc |
|---|---|
| Drive Chain | 8.73125 mm (0.344 in) |
| Hole Thread Pitch | 32 |
| Thread Size | #8 mm (0 in) |
| Coating | Zinc Electroplated |
| Material Description | ISO Class 8 or SAE Grade 5 Equivalent |
| Thread Direction | RH |
| Class or Grade | SAE J995 Grade 5 (120 ksi) |
| Thread Size (Diameter × Pitch) | No. 8 (.164)x32 mm |
| Thickness | 3.18 mm (0.13 in) |

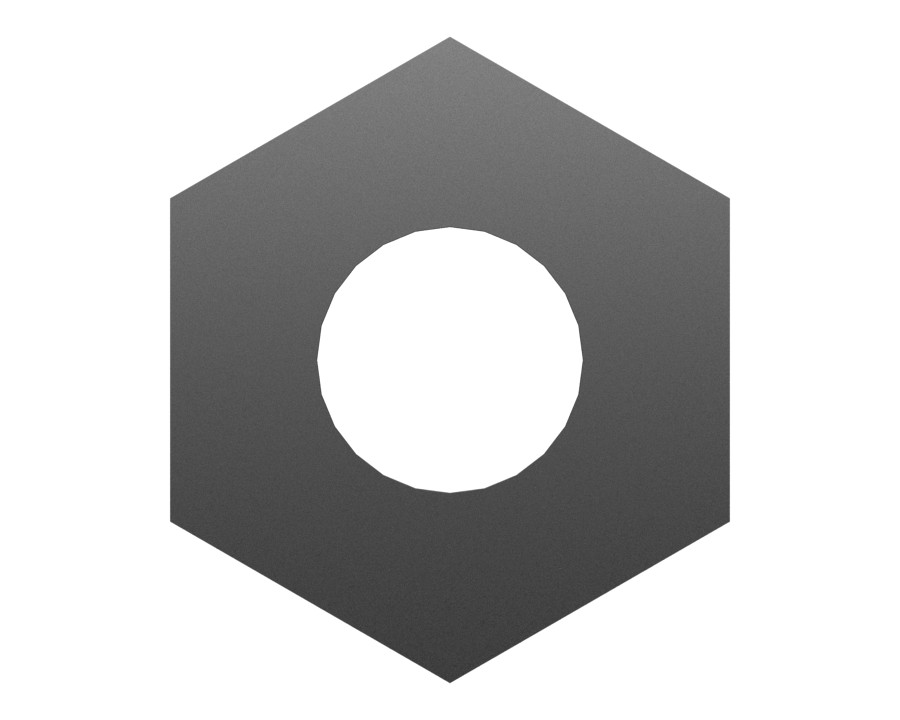

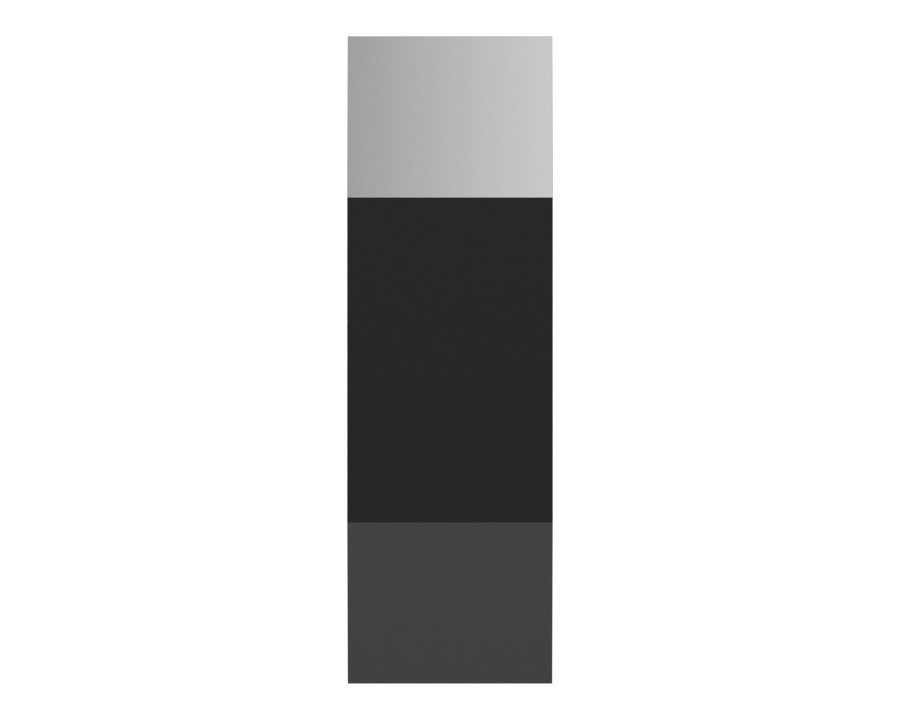

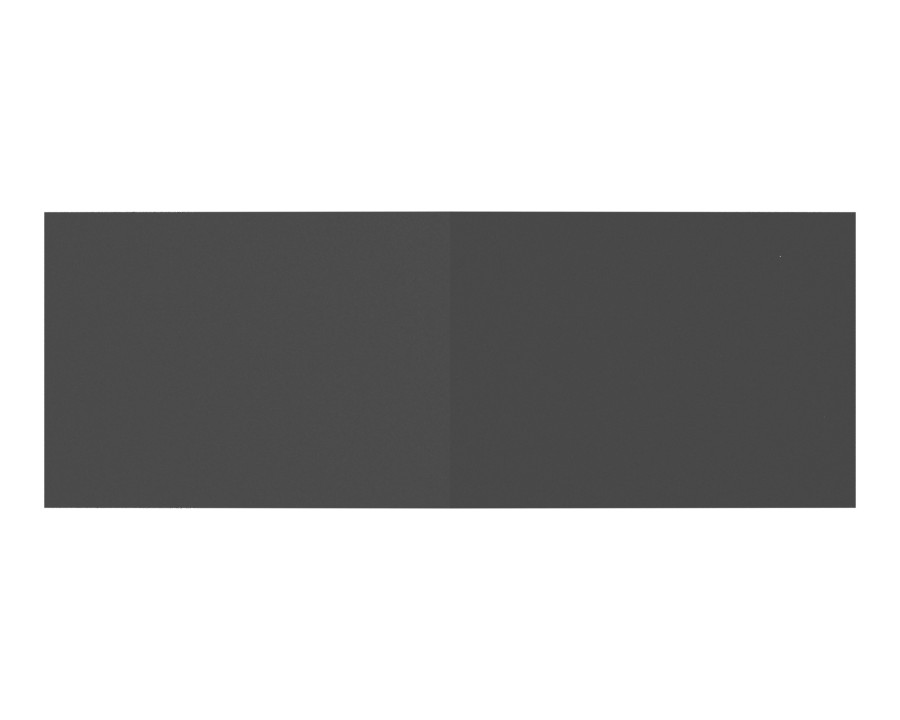

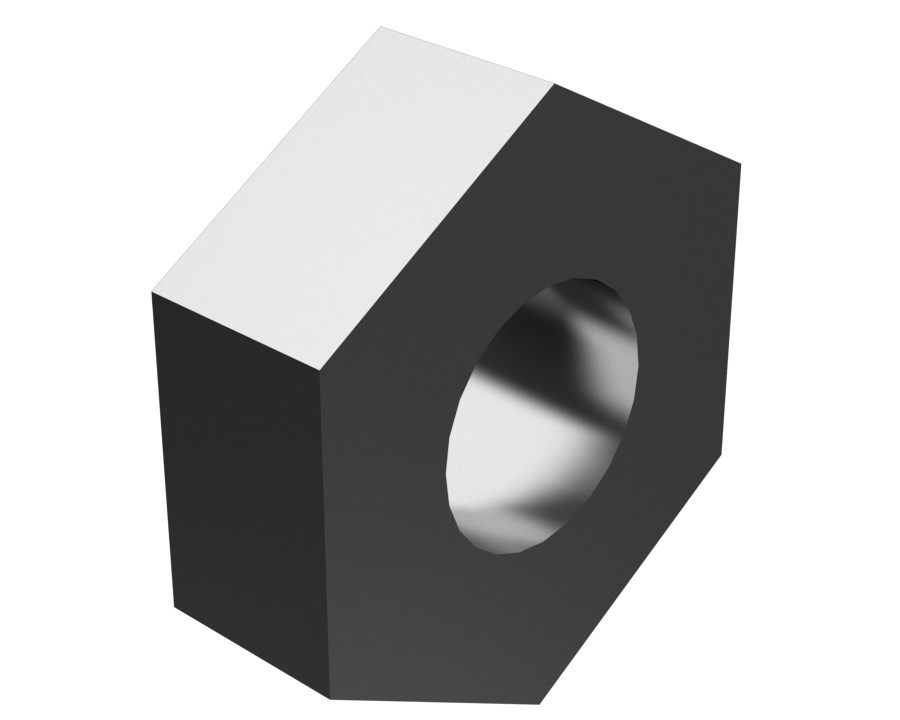

| Nut Model | Hex Nut |
Compatible Equipment
- Generator Sets: 3512E, 3516C, G3516, 3512B, 3406B, 3406C, C9, G3516C, C4.4
- Track Loaders: 992, 824C, 963, 953, 816F, 824G, 826G
- Cold Planers: TH360B, TH255C
- Compactors: CB1.8, CB1.7, CB-564D, 815, CS-563E, CB-434D, 814, CB-534D, CS-56, CB-24B, 816, CS-54, CB-14, CB-334D, CB2.9, CB-335D, CB2.7, CB2.5, C-15, C-9, CS-54B, CS-533E
- Engines: C11, C13, C32, C15, C7, C27, C175-16, C18, C12
- Excavators: 305C CR, 3126, 307.5, 3456, 303C CR, 308E, 3512C, 3516E, M325D L MH, 365B L, 330 L, 301.6, 3508B, 345B, 3516B, 385B, 637G, 637E, 350 L, 416E, 365B, 305 CR, 621G, 330C L, 301.8, 325B L, 325C L, 320B, 6040, 6060, 302.7CR, 325C, 345C, 303.5CR, 303CR
- Asphalt Pavers: AD30, AD45, AP-600D
- Skid Steer Loaders: 226B, 216B3, 236, 226B3, 3126B, 236B3
- Motor Graders: 16, 120, 120H, 140G, 140K, 3606, 12H, 140H, 12K, 160K
- Wheel Excavators: IT14G
- Dozers: D7G2, D6G2 XL, D7H, D6R, D8L, D9L, D5M, D6R II, D8R, D5H, D7R, D9R, D7G, D6N, D3G, D10, D5N, D4E, D8N, D6M, D10N, D7R II, D9N, D6G2 LGP, D4G, D6K2, D5G, D5K XL, D11N, D11R, D10R, D5K LGP, D6G
- Mini Excavators: 308.5, 303.5E, 302CR, 306, 310, 308, 305.5 GC, 305.5E, 301.5, 303.5D, 305.5, 301.7CR, 303.5C, 305.5E2, 306.5
- Wheel Loaders: R3000H, 938K, R2900G, 834, 950, 992D, 988F, 926M, 836, 938M, 962G, 910, 950G, 924K, R1300G, 972G, 990H, 980G, 966F, 980, 992C, 950H, 924GZ, R1700G, 906K, 928G, R1700 II
- Off-Highway Trucks: 785, 7495, 793, 777D, 773, 771D, 794 AC, 798 AC, 777, 773D, 796 AC, 735, 789, 793D, 740
