Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

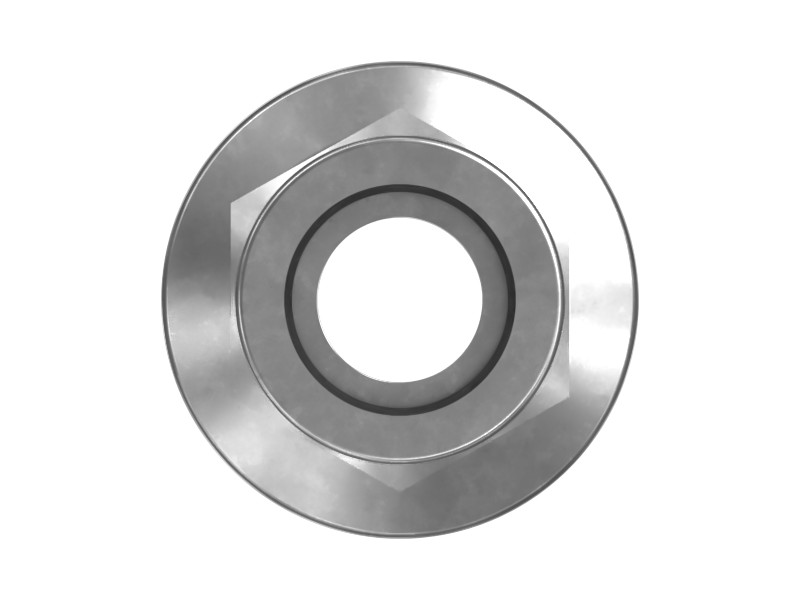

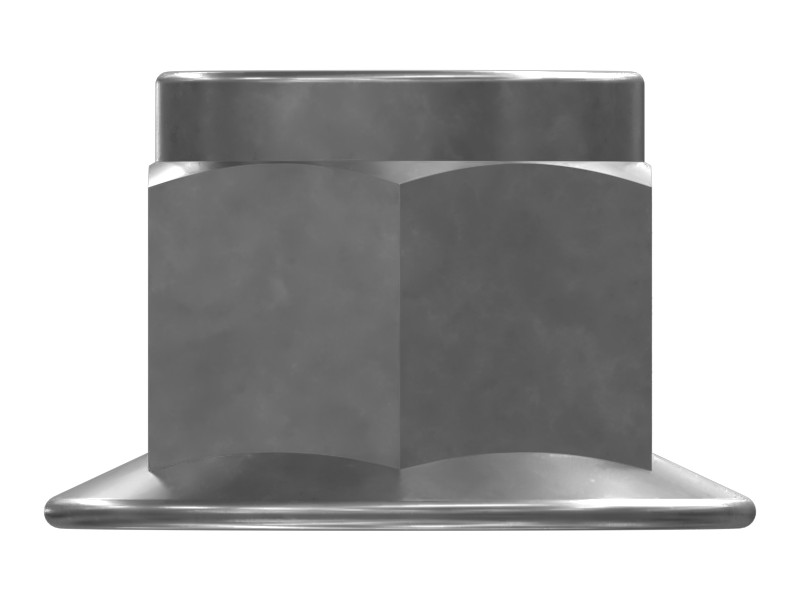

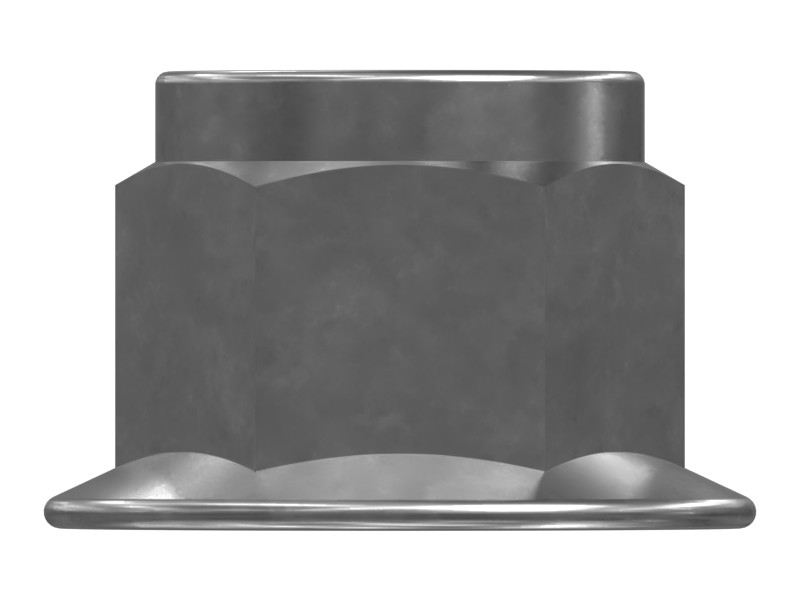

These nuts provide prevailing torque so the nuts will not loosen. Do not exceed 120 C.
Features
*Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
* Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
* Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
* Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-2 Class 10 |
|---|---|
| Thread Size (Diameter × Pitch) | M6x1 mm |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Drive Chain | 10 mm (0.394 in) |
| Material | Alloy Zinc |
| Hole Thread Pitch | 1.00 |
| Material Description | ISO Grade 10/12 Equivalent |
| Thread Size | M6 mm (0 in) |
| Flange Diameter | 14.2 mm |
| Thread Direction | RH |
| Thickness | 9.1 mm (0.358 in) |
| Thread | RH Coarse |
| Nut Model | Hex Flange |
| Thread Size (in – TPI) | M6-1 in |
Compatible Equipment
- Generator Sets: 3516C, C4.4
- Track Loaders: 982, 973K, 972, 963D, 834H, 953, 826K, 963K, 953D, 953K, 995, 963, 992
- Cold Planers: PL83, PL87, PL61, PL72
- Compactors: CB-66B, CB-64B, CS-533C, 824K, CB16, 834K, 825K, 815, CS-583D, 816, 814, C-9, CB13, CB15, CB10
- Engines: C175-16
- Excavators: 3126, 3512C, 3516E, 637K, 3508B, 621H, 621K, 325C, 330C L, 330C, 325C L
- Skid Steer Loaders: 3126B
- Motor Graders: 120H
- Dozers: D9, D8, D11T, D3K2 LGP, D4, D10T2, D10T, D9T, D7E, D6T, D6K2, D6N, D5K2 XL, D6T LGP, D6R II, D8T, D5K LGP, D5N, D11, D8R, D5K XL, D1, D7, D10
- Wheel Loaders: 950, 966, 980, 966H, 924K, 950H, 972H, 938K, 972L, 980H, R1700 XE, 834, 962L, 950L, 980L, 966F, 992D, 988F, 966K, 966L, 938M, 926M, R2900 XE, 986H, 836, R1700K
- Off-Highway Trucks: 793F, 797F
Additional information
| Machine Model | 120H, 3126, 3126B, 325C, 325C L, 330C, 330C L, 3508B, 3512C, 3516C, 3516E, 621H, 621K, 637K, 793F, 797F, 814, 815, 816, 824K, 825K, 826K, 834, 834H, 834K, 836, 924K, 926M, 938K, 938M, 950, 950H, 950L, 953, 953D, 953K, 962L, 963, 963D, 963K, 966, 966F, 966H, 966K, 966L, 972, 972H, 972L, 973K, 980, 980H, 980L, 982, 986H, 988F, 992, 992D, 995, C-9, C175-16, C4.4, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CS-533C, CS-583D, D1, D10, D10T, D10T2, D11, D11T, D3K2 LGP, D4, D5K LGP, D5K XL, D5K2 XL, D5N, D6K2, D6N, D6R II, D6T, D6T LGP, D7, D7E, D8, D8R, D8T, D9, D9T, PL61, PL72, PL83, PL87, R1700 XE, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
