Description

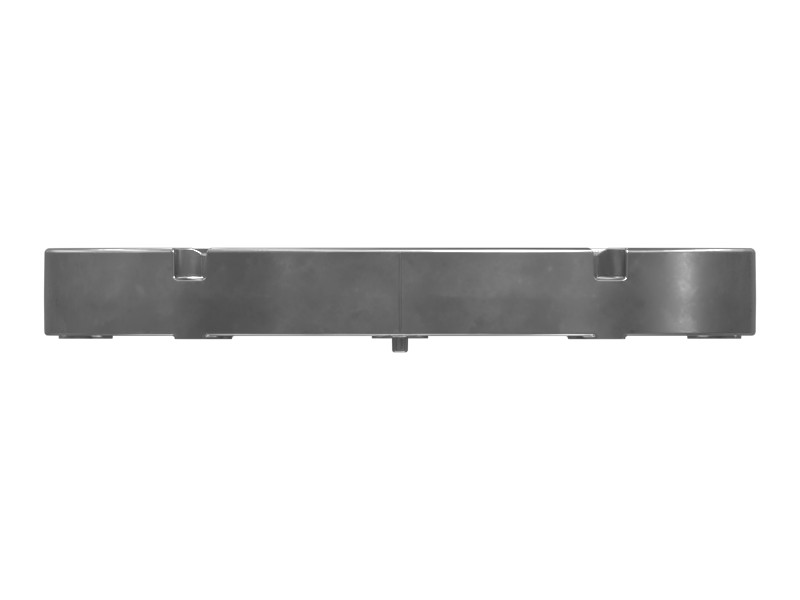

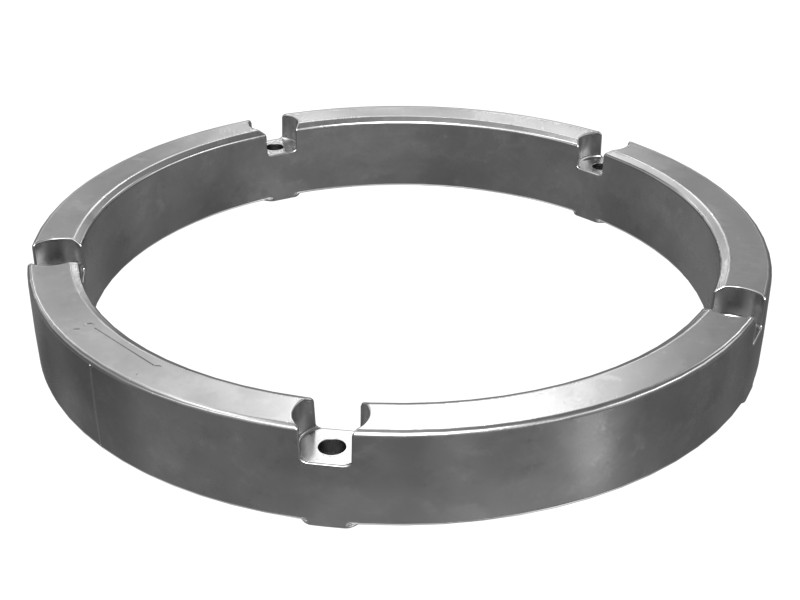

Position Sensor Description:
The magnetic sensor gauge is used in combination with the rotary arc position sensor to measure bucket position.
Features
- With neodymium magnet
cast aluminum housing • Outside diameter: 220 mm (8.67 in)
- Inside Diameter: 190 mm (7.5 in)
- With M6 fasteners
Used in combination • RoHS compliant
Applications
Bucket position sensor for the Cat excavator tilt control system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Outside Diameter | 220 mm (8.67 in) |
| Inside Diameter | 190 mm (7.5 in) |
| Height | 31.9 mm (1.25 in) |
Compatible Equipment
- Excavators: 349F L, 374, 352, 340, 336, 336F L, 336F, 336F L XE, 349, 352F, 335, 325, 350, 320, 330
