Description

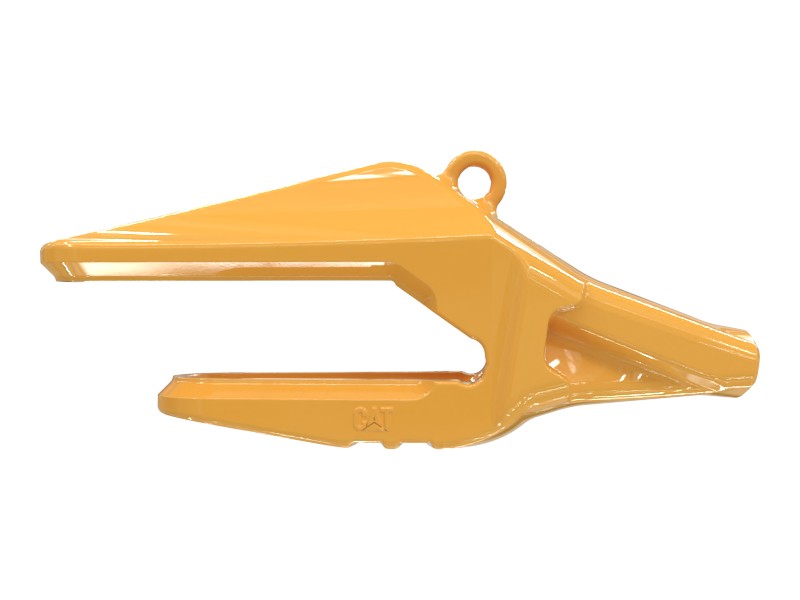

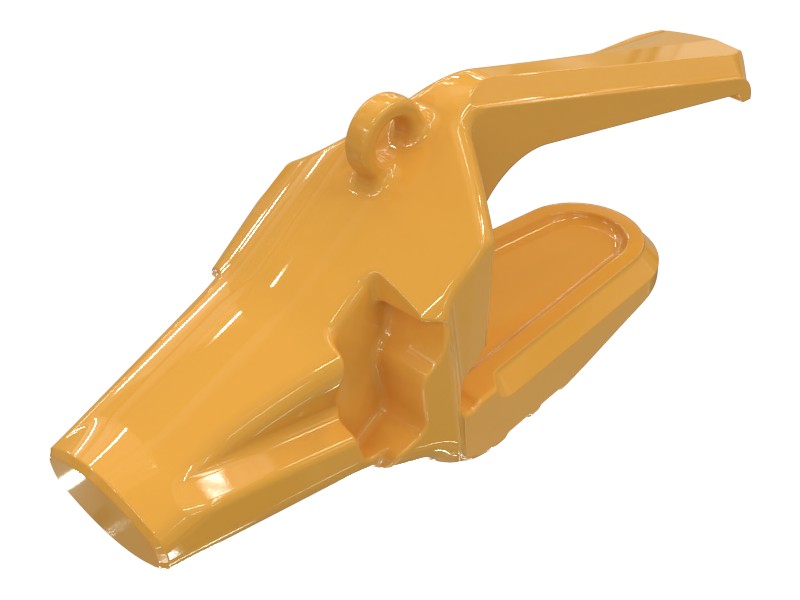

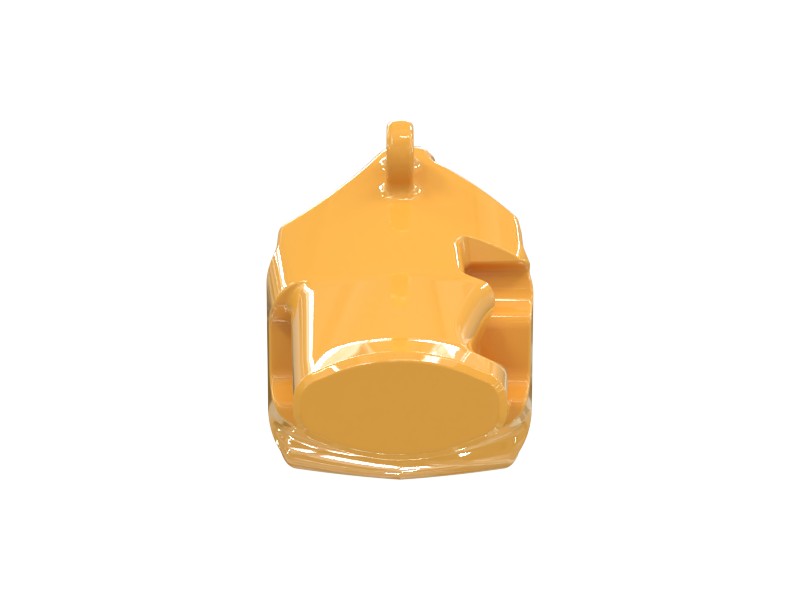

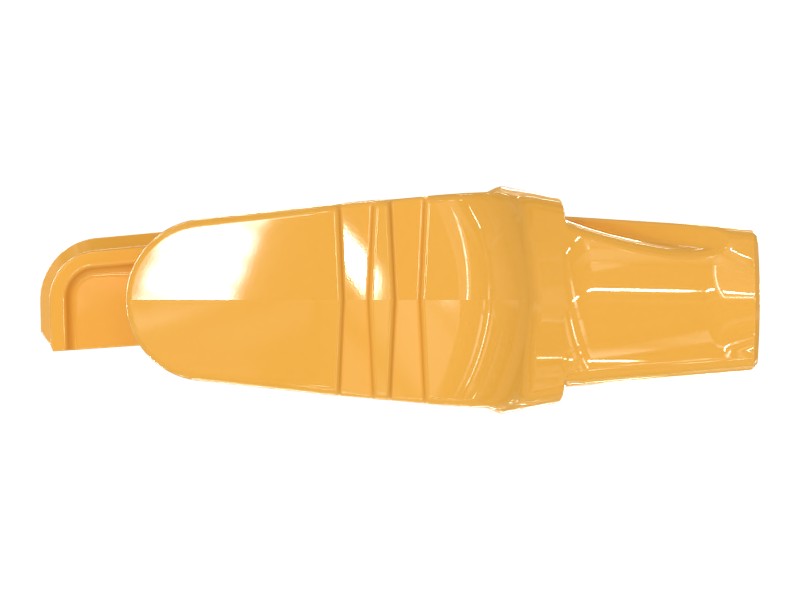

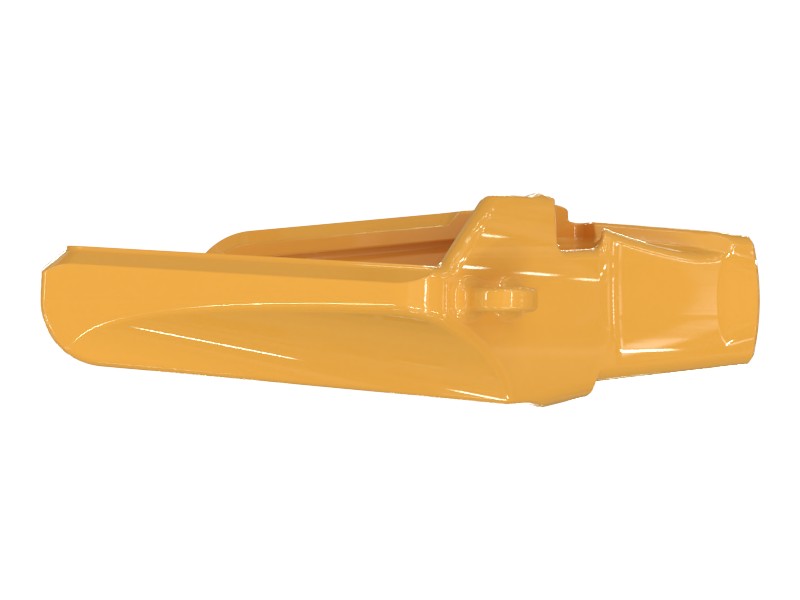

Cat® K Series adapters offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat® corner shroud adapters provide excellent corner protection along with all of the added penetration benefits of bucket teeth.
Our adapters are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket protection to protect your investment.
Features
- K170 right-hand hammerless adapter fits 90 mm base edge with 22.5 degree bevel angle
- Stop angle is 4 degrees
Applications
- Excavator Buckets
Specifications
| Type | Two Strap |
|---|---|
| Size | K170 |
| Attachment Method | Weld-On |
| Overall Length | 695 mm (27.362 in) |
| Hole Spacing | 0 mm |
| Base Edge Thickness Grade | 90 |
| Number of Holes | 0 |
| Bottom Bar Length | 326 mm (12.835 in) |
| Bevel Angle | 35 |
| Width | 207 mm (8.15 in) |
| Corner Stop Angle | 4 |
| Wear or Durability | Standard |
| Position | RH Corner |
| Series | K Series |
Compatible Equipment
- Excavators: 374F L, 390D, 374D L, 374F, 390D L, 390F L
