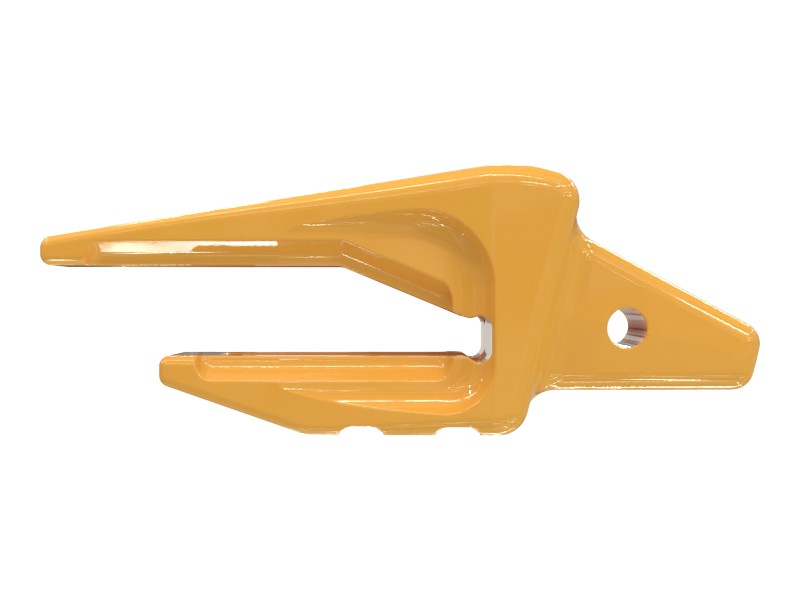

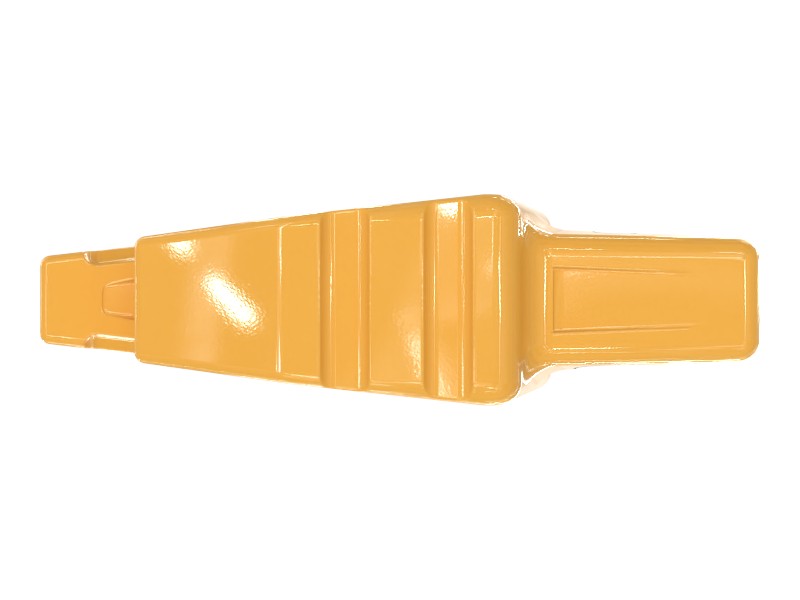

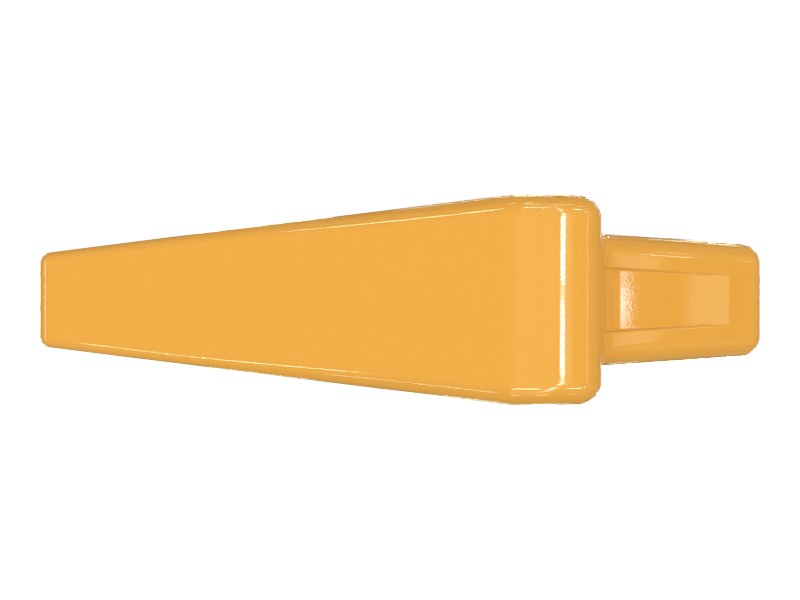

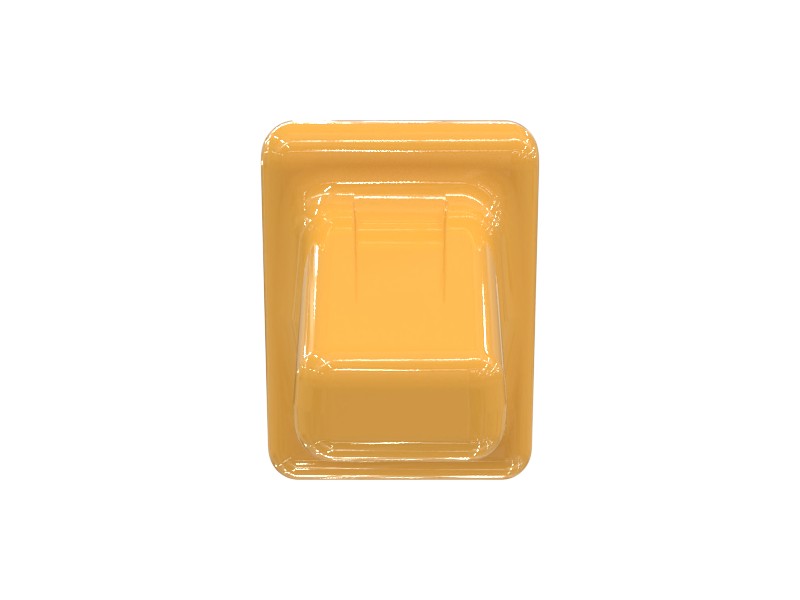

113-0354 Bucket Adapter
J350 Two-Strap Adapter
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® J Series adapters offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat® two-strap adapters have a lower profile than flush-mount adapters, improving penetration and productivity.
Our adapters are durable and cast from steel that holds its hardness, providing long wear life so your machine delivers the performance you need. Always choose Genuine Cat Ground Engaging Tools to protect your investment.
Features
- J350 Adapter fits a 45 mm cutting edge with a 22.5 degree bevel angle
Applications
- Wheel Loader Buckets
Specifications
| Wear or Durability | Standard |
|---|---|
| Adapter Size | J350 |
| Type | Two Strap |
| Size | J350 |
| Series | J Series |
| Hole Spacing | 0 mm |
| Base Edge Thickness Grade | 45 |
| Width | 104 mm (4.094 in) |
| Bevel Angle | 22.5 |
| Overall Length | 383 mm (15.079 in) |
| Corner Stop Angle | 0 |
| Attachment Method | Weld-On |
| Bottom Bar Length | 175 mm (6.89 in) |
| Number of Holes | 0 |
| Machine Model | Loader |
| Wear Material | A.R.M. Optional |
| Attachments | Weld-On |
Additional information
| Part Source | Genuine OEM |
|---|
