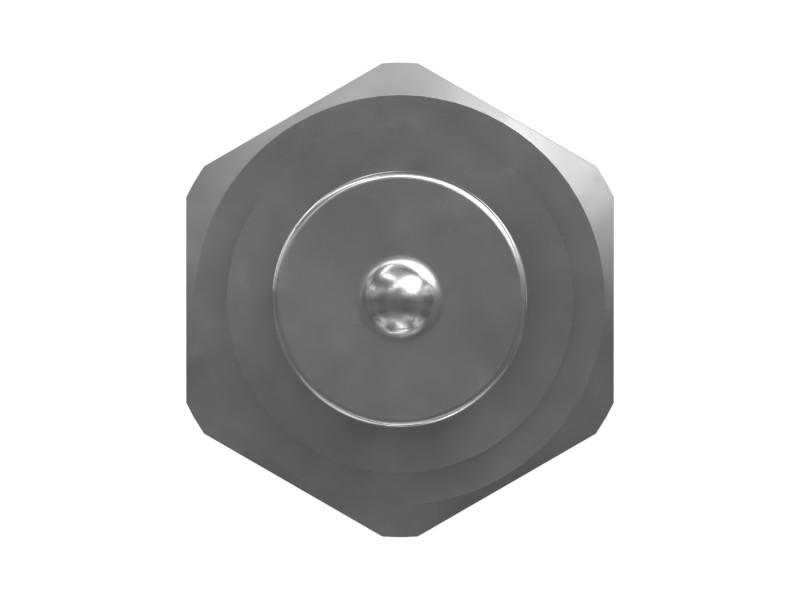

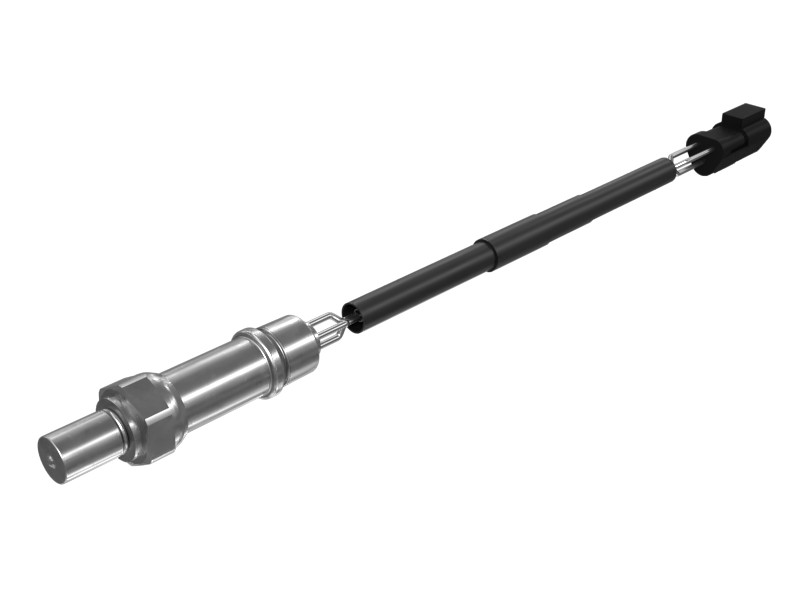

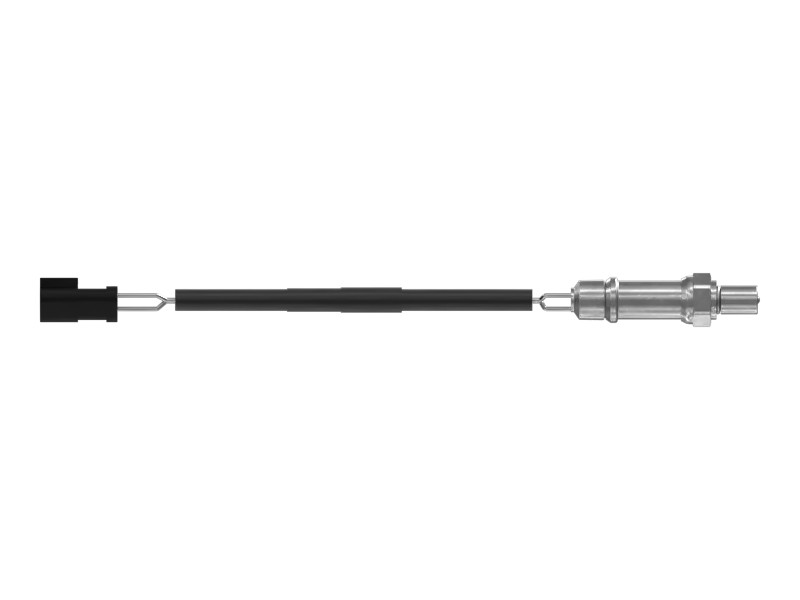

459-2595 Hydraulic Control Valve Pressure Switch
Cat® track tensioner hydraulic control valve pressure switch with pressure sensing that can trigger an actuator mechanism at a set pressure
Description
Cat pressure switch groups are designed to turn on and off in response to changes in the system set pressure. Cat parts ensure your equipment runs at its best.
Features
- Steel pressure switch with pigtail connector
- Activation Pressure: 13450 kPa (1951 psi)
- Contact Position: Normally Closed and Normally Open
- Media: Petroleum-based hydraulic oil and engine oil, diesel fuel, and air
- Voltage: 28 VDC
- Connector Type: 3-Pin DT
- Thread Size: 9/16-18
- ROHS compliant
- Rugged design for long service life
- High accuracy and stable performance
- Quick and easy installation
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion and dust.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 391.9 mm (15.42 in) |
| Hex Size | 27 mm (1.06 in) |
| Connector Type | 3-Pin DT |
| Thread Size | 9/16-18 in |
Compatible Equipment
- Wheel Loaders: RM500B
- Off-Highway Trucks: 725, 730
- Asphalt Pavers: AP355F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
