Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | M10 mm (0 in) |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 25 mm (0.984 in) |

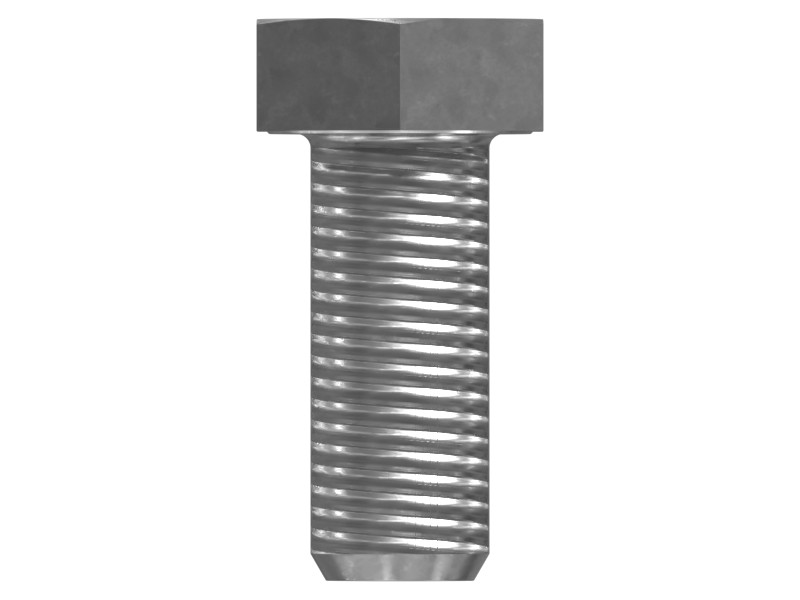

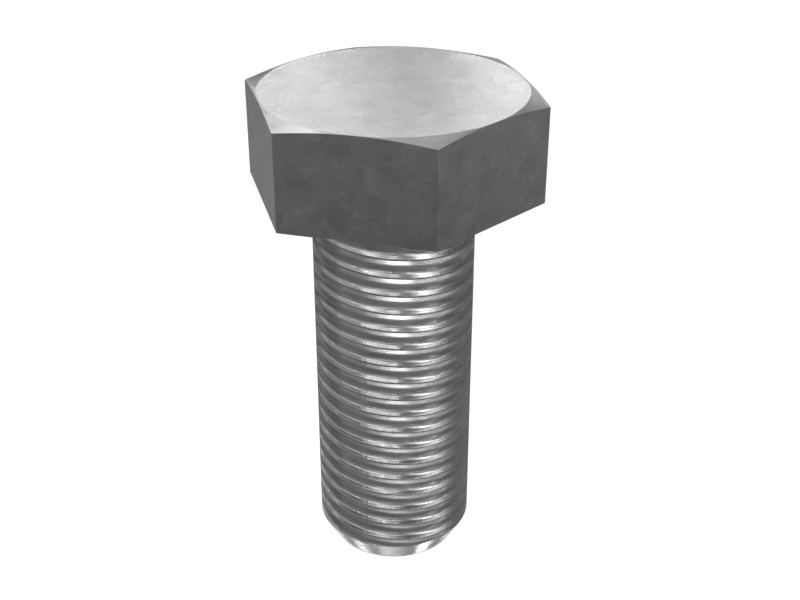

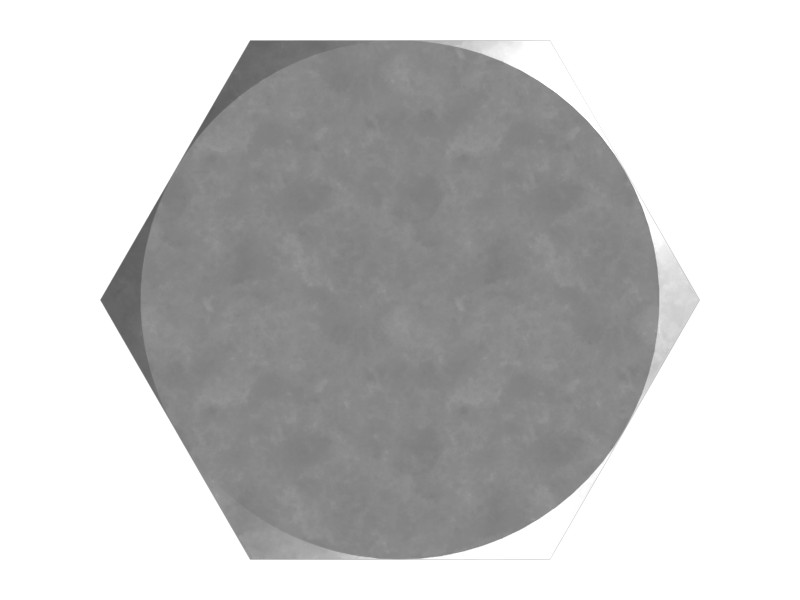

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 5 mm (0.177 in) |
| Material | STEEL |
Compatible Equipment
- Motor Graders: 316F, 349 GC
- Generator Sets: 3512B
- Wheel Excavators: M315, M315GC
- Excavators: 374, 349F L, 313 GC, 313, 316 GC, 330D L, 320 GX, 350, 340, 352, 325, 324D L, 323D L, 336F, 312C, 345C, 340D2 L, 349, 390F, 352F, 345D L, 345C L, 374F L, 390D, 349D L, 345D, 340D L, 349E, 349E L, 349E L VG, 395, 345 GC, 313D2, 335, 320D3 GC, 323 GX, 313 GX, 312 GC, 320 GC, 320, 320D3, 326, 336 GC, 336, 326 GC, 333 GC, 333, 330GC, 323, 355, 323 GC, 330 GC, 315, 315 GC, 329D L, 311D LRR, 312E L, 312E, 325D L, 336D L, 314D LCR, 313D, 330D2, 315D L, 312D L, 329E L, 336E L, 312C L, 323D2 L, 330D, 323GC, 320D2 L, 312D2 L, 336F L, 325D, 328D LCR, 320D RR, 313D2 GC, 324D, 312D2, 318D2 L, 320D L, 320D FM, 326D L, 316 GX, 312 GX, 318D2, 320E, 320D GC, 315F LCR, 336D2 GC, 326GC, 312D2 GC, 312D, 323D2, 336D2 L, 315C, 314C, 336E H, 313F L, 335F LCR, 336E LN, 336E LH, 323D, 336F LN, 318D L, 6060, 3101, 320D2 GC, 336F L XE, 329E, 336E, 330D2 L, 313D2-GC, 311C, 314D CR, 350MHPU, 313F LGC, 336D2 XE, 312F, 320D, 320D2, 349D2, 349D2 L, 390D L, 374D L, 374F, 390F L, 349D, 330, 329D, 326D2, 326D2 L, 329D2 L, 336D, 336D2, 329D2
- Skid Steer Loaders: 313D2 LGP
