Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-2 Class 12 |
| Hole Thread Pitch | 2.00 |
| Thread Size | M16 mm (0 in) |
| Thickness | 14.8 mm (0.583 in) |
| Material | Carbon Steel |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Thread | RH Coarse |
| Height | 15 mm |

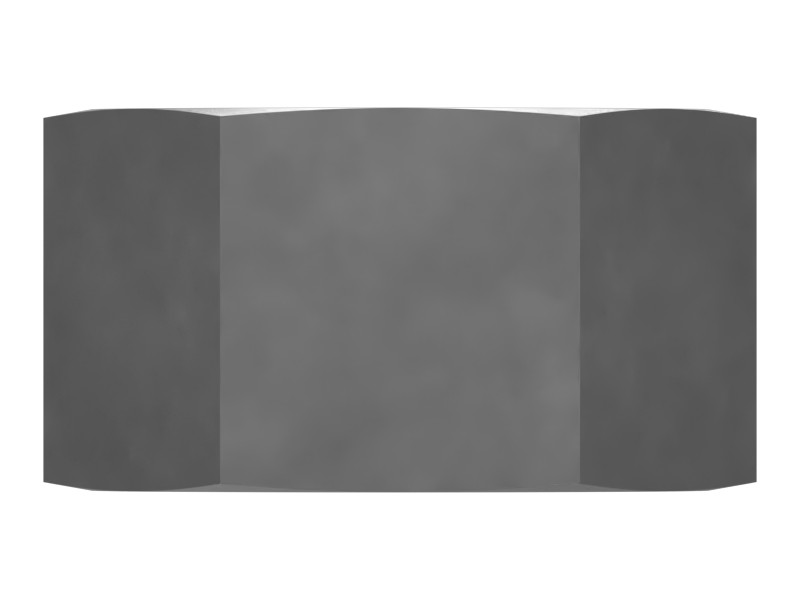

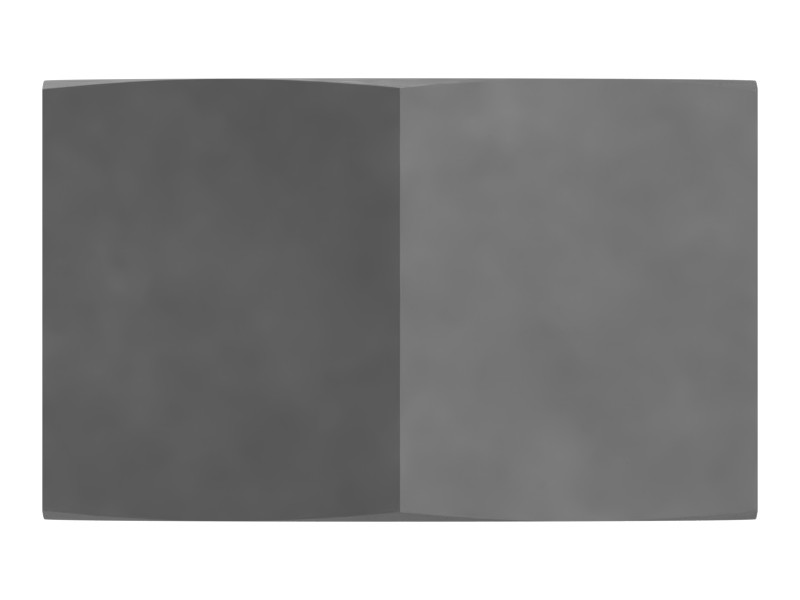

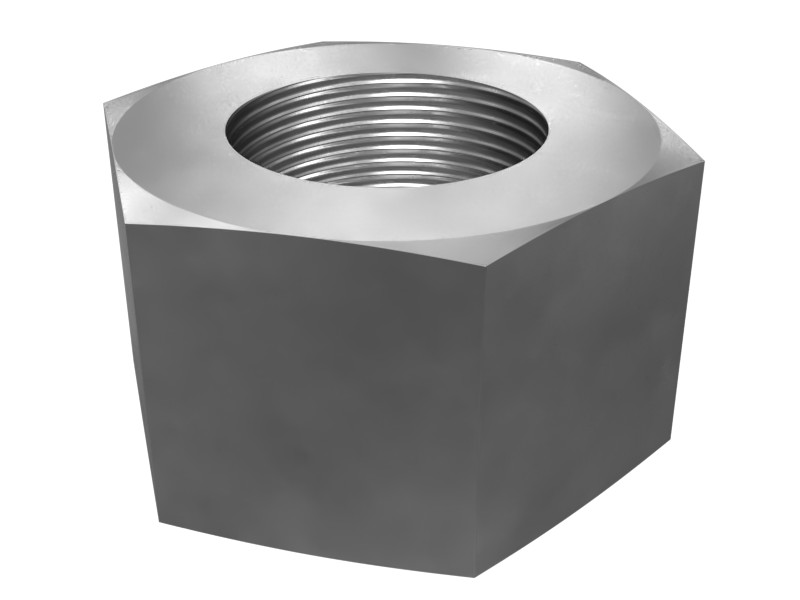

| Nut Model | Hex Nut |
| Drive Chain | 24 mm (0.945 in) |
| Thread Size (in – TPI) | M16-2 in |
| Material Description | ISO 898-2 Class 12 Hardness |
| Coating | Zinc Plated |
Compatible Equipment
- Generator Sets: C4.4, C7.1, 3512B
- Motor Graders: 349 GC, 316F
- Wheel Excavators: M315, M320, M315GC, M317D2, M320D2
- Excavators: 374, 313, 313 GC, 316 GC, 349F L, 330D L, 350, 323, 340, 352, 330 GC, 355, 352F, 320D3 GC, 349E, 395, 335, 315 GC, 323 GX, 3101, 315, 316 GX, 312 GX, 323D L, 318D L, 311D LRR, 312D L, 336F L, 336F L XE, 320C, 313F LGC, 329D L, 323D2 L, 336D L, 329E L, 314D LCR, 336, 320 GC, 336E L, 318D2 L, 312D2 GC, 336D2 L, 320D2 L, 314D CR, 320E, 315C, 336F, 320, 328D LCR, 336E, 326, 313F L, 320D3, 336 GC, 330GC, 345 GC, 349, 6015, 333, 6015B, 320 GX, 323 GC, 312 GC, 325, 313 GX, 315D L, 325D L, 312D, 312D2, 320D FM, 313D2, 324D L, 324D, 345C, 385C L, 365B L, 345D L, 345C L, 374F L, 349D L, 349E L VG, 340D2 L, 365C L, 365B, 390D, 345D, 385B, 385C FS, 349E L, 390F, 385C, 340D L, 365C, 335F LCR, 312D2 L, 320D L, 320D2 GC, 323GC, 314C, 336D2 GC, 320D RR, 311C, 330D2 L, 312E, 312E L, 318D2, M325D L MH, 336E LH, 350MHPU, 320D GC, 313D, 336E H, 325D, 312C, 330D, 336F LN, 313D2 GC, 313D2-GC, 330D2, 312C L, 329E, 315F LCR, 323D2, 325C, 312F, 336E LN, 323D, 320C L, 333 GC, 326 GC, 330, 320D, 320D2, 326D2, 329D2 L, 326D2 L, 336D, 390F L, 349D2, 374F, 374D L, 349D, 390D L, 349D2 L, 329D, 336D2, 329D2
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
